C1221 Series

Catalog

PUSHBUTTON FULL BOOT CLEAR

Part	Mounting Feature	Actuator Diameter	Ingress Protection Description	Ingress Protection IP Rating	For Use With/Related Products	Operating Temperature (Max)	Operating Temperature (Min)	Type	Color	Thread Size (Class)	Thread Pitch (TPI)	Thread Size (Nominal)	Material	Size / Dimension Height	Thread Diameter	Thread Pitch

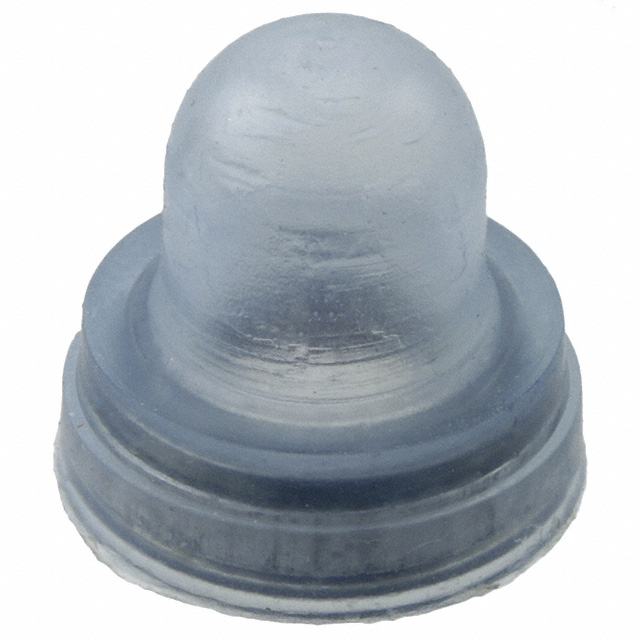

APM Hexseal C1221/22 4	Front of Panel	0.32 in	Dust Tight Water Resistant Waterproof	IP66 IP68	Multiple Series	204 °C	-62 °C	Full Boot Pushbutton	Clear	NF-2B	24 TPI	0.375 in	Silicone Rubber	0.609 in

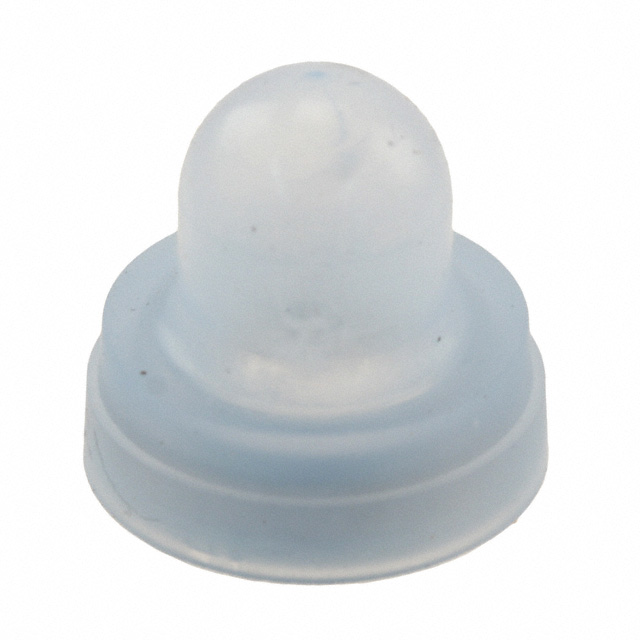

APM Hexseal C1221/21 4	Front of Panel	0.32 in	Dust Tight Water Resistant Waterproof	IP66 IP68	Multiple Series	204 °C	-62 °C	Full Boot Pushbutton	Clear	NS-2B	27 TPI	0.375 in	Silicone Rubber	0.62 in

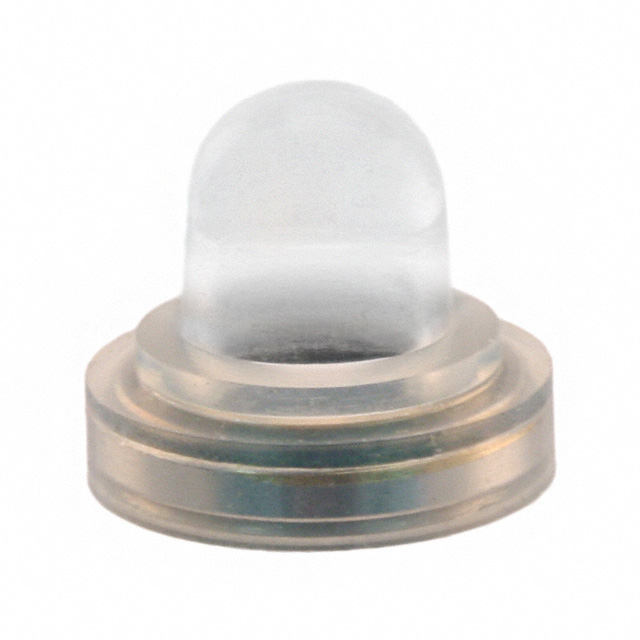

APM Hexseal C1221/27	Front of Panel	0.422 in	Dust Tight Water Resistant Waterproof	IP66 IP68	Multiple Series	204 °C	-62 °C	Full Boot Pushbutton	Clear				Silicone Rubber	0.62 in	11 mm	1 mm

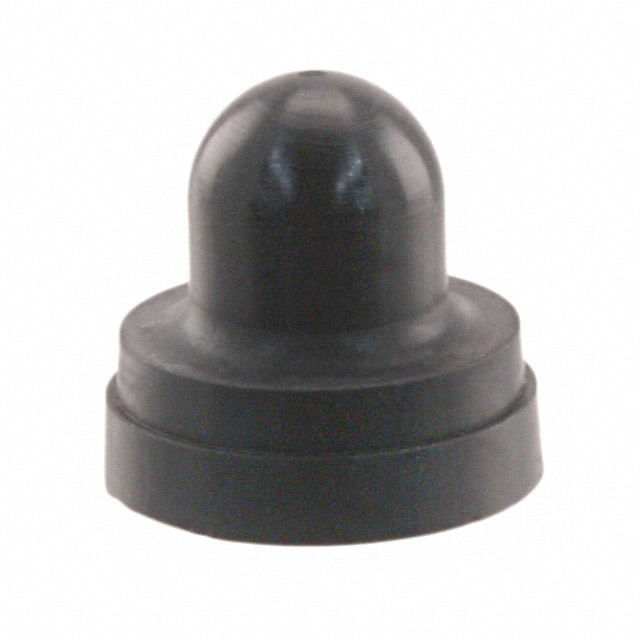

APM Hexseal C1221/25	Front of Panel	0.3 in	Dust Tight Water Resistant Waterproof	IP66 IP68	Multiple Series	204 °C	-62 °C	Full Boot Pushbutton	Black	NS-2B	27 TPI	0.375 in	Silicone Rubber	0.605 in

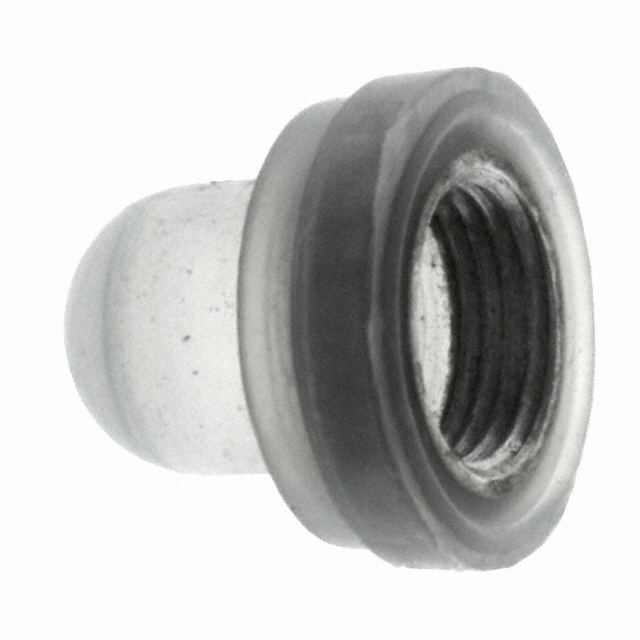

APM Hexseal C1221/23 4	Front of Panel	0.32 in	Dust Tight Water Resistant Waterproof	IP66 IP68	Multiple Series	204 °C	-62 °C	Full Boot Pushbutton	Clear	NEF-2B	32 TPI	0.375 in	Silicone Rubber	0.609 in

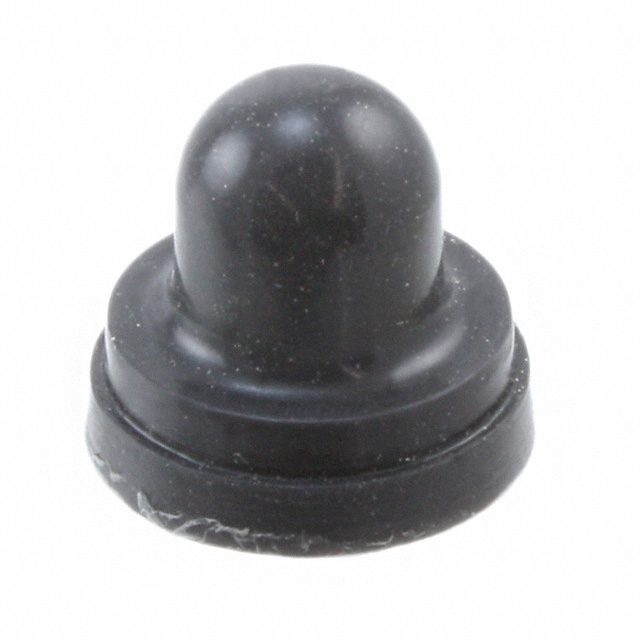

APM Hexseal C1221/21 M10 THD	Front of Panel	0.32 in	Dust Tight Water Resistant Waterproof	IP66 IP68	Multiple Series	204 °C	-62 °C	Full Boot Pushbutton	Black				Silicone Rubber	0.62 in	10 mm	1 mm
