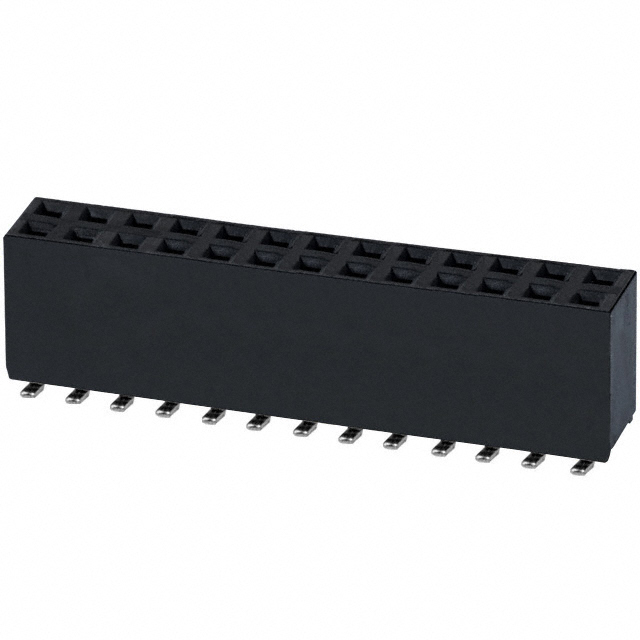

NPTC132 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 26POS 0.1 TIN SMD
| Part | Contact Shape | Contact Material | Insulation Material | Insulation Color | Fastening Type | Material Flammability Rating | Connector Type | Termination | Voltage Rating | Contact Finish - Post | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Height [z] | Insulation Height | Number of Rows [custom] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Current Rating (Amps) | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Black | Push-Pull | UL94 V-0 | Header | Solder | 250 V | Tin | Board Guide | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 26 | 0.299 " | 7.6 mm | 2 | Surface Mount | 125 °C | -40 C | Female Socket | 3 A | All |
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Black | Push-Pull | UL94 V-0 | Header | Solder | 250 V | Tin | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 26 | 0.299 " | 7.6 mm | 2 | Surface Mount | 125 °C | -40 C | Female Socket | 3 A | All |
