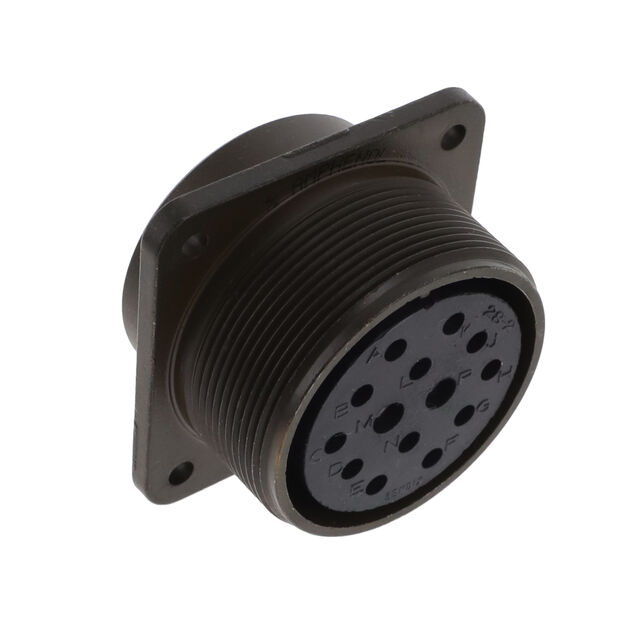

MS3102A28 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN RCPT
| Part | Color | Fastening Type | Shell Finish | Operating Temperature (Max) | Operating Temperature (Min) | Current Rating Options | Shell Size - Insert Length | Shell Size - Insert Width | Qualification | Mounting Feature | Applications | Mounting Type | Primary Material | Shell Material | Contact Finish - Mating | Termination | Ingress Protection | Voltage Rating (DC) | Voltage Rating (AC) | Orientation | Contact Material | Grade | Number of Positions | Insert Material | Shielding | Connector Type | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
 Amphenol Aerospace Operations | Olive Drab | Threaded | Cadmium Olive Drab Chromate | 125 °C | -55 °C | 13A 23A | 28 mm | 2 mm | MIL-DTL-5015 | Flange | Marine Military | Panel Mount | Metal | Aluminum Alloy | Silver | Solder Cup | Environment Resistant | 1250 VDC | 900 VAC | N (Normal) | Copper Alloy | Military | 14 | Neoprene | Unshielded | Female Sockets Receptacle | |
 Amphenol Aerospace Operations | Olive Drab | Threaded | Cadmium Olive Drab Chromate | 125 °C | -55 °C | 23A 46A | 28 mm | 1 mm | MIL-DTL-5015 | Flange | Marine Military | Panel Mount | Metal | Aluminum Alloy | Silver | Solder Cup | Environment Resistant | N (Normal) | Copper Alloy | Military | 9 | Neoprene | Unshielded | Female Sockets Receptacle | |||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | Olive Drab | Threaded | Cadmium Olive Drab Chromate | 125 °C | -55 °C | 28 mm | 16 mm | MIL-5015 | Flange | Marine Military | Panel Mount | Metal | Aluminum Alloy | Silver | Solder Cup | N (Normal) | Copper Alloy | 20 | Neoprene | Unshielded | Male Pins Receptacle | 1.625 in | |||||
 Amphenol Aerospace Operations | Olive Drab | Threaded | Cadmium Olive Drab Chromate | 125 °C | -55 °C | 13A 23A | 28 mm | 2 mm | MIL-DTL-5015 | Flange | Marine Military | Panel Mount | Metal | Aluminum Alloy | Silver | Solder Cup | Environment Resistant | 1250 VDC | 900 VAC | N (Normal) | Copper Alloy | Military | 14 | Neoprene | Unshielded | Male Pins Receptacle |
