EK/EY Series

Catalog

MICROPHONES 5.56 X 3.98 X 2.21MM -57 SENS, 12S PORT

Part	Sensitivity	Direction	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Type	Height (Max) [Max] [z]	Height (Max) [z]	Termination	Impedance	Shape	Output Type	Current - Supply	Frequency Range [Min]	Frequency Range [Max]	Port Location	Voltage Range [Min]	Voltage Range [Max]
Knowles Syfer EK-23028-C36
Knowles Syfer EK-23027-P35	-53 dB	Omnidirectional	5.56 mm	0.157 "	3.99 mm	0.219 in	1.3 VDC	Electret Condenser	0.089 in	2.26 mm	Solder Pads	4.4 kOhms	Rectangular	Analog	50 µA	100 Hz	10 kHz	Top

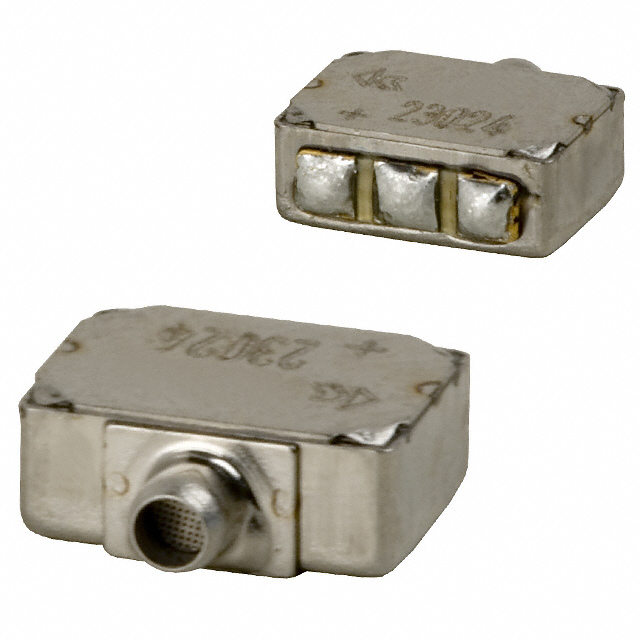

Knowles Syfer EK-23024-C36	-53 dB	Omnidirectional	5.56 mm	0.157 "	3.99 mm	0.219 in	1.3 VDC	Electret Condenser	0.089 in	2.26 mm	Solder Pads	4.4 kOhms	Rectangular	Analog	50 µA	100 Hz	5.5 kHz	Top	0.9 V	10 V
Knowles Syfer EK-28586-C77	-53 dB	Omnidirectional	5.56 mm	0.157 "	3.99 mm	0.219 in	1.3 VDC	Electret Condenser	0.089 in	2.26 mm	Solder Pads	4.4 kOhms	Rectangular	Analog	50 µA	50 Hz	4.5 kHz	Side	0.9 V	10 V
Knowles Syfer EK-28585-C77	-53 dB -4 dB	Omnidirectional	5.56 mm	0.157 "	3.99 mm	0.219 in	1.3 VDC	Electret Condenser	0.089 in	2.26 mm	Solder Pads	4.4 kOhms	Rectangular	Analog	50 µA	50 Hz	5.3 kHz	Side	0.9 V	10 V
Knowles Syfer EK-27263-A21	-53 dB	Omnidirectional	5.56 mm	0.157 "	3.99 mm	0.219 in	1.3 VDC	Electret Condenser	0.089 in	2.26 mm	Solder Pads	4.4 kOhms	Rectangular	Analog	50 µA	100 Hz	10 kHz	Side
