AXE134 Series

Catalog

CONN SOCKET 34POS SMD GOLD

Part	Mated Stacking Heights	Mounting Type	Connector Type	Number of Positions [custom]	Features	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Mated Stacking Heights [z]	Height Above Board	Height Above Board
Panasonic Electronic Components AXE134527D	0.8 mm	Surface Mount	Socket Center Strip Contacts	34	Solder Retention	0.75 mm	0.03 in	2	0.4 mm	0.016 in	Gold
Panasonic Electronic Components AXE134527	0.8 mm	Surface Mount	Socket Center Strip Contacts	34	Solder Retention	0.75 mm	0.03 in	2	0.4 mm	0.016 in	Gold
Panasonic Electronic Components AXE134224D		Surface Mount	Socket Center Strip Contacts	34	Solder Retention			2	0.4 mm	0.016 in	Gold	1 mm 1.5 mm	0.038 in	0.97 mm
Panasonic Electronic Components AXE134124D	0.8 mm	Surface Mount	Socket Center Strip Contacts	34	Solder Retention	0.75 mm	0.03 in	2	0.4 mm	0.016 in	Gold

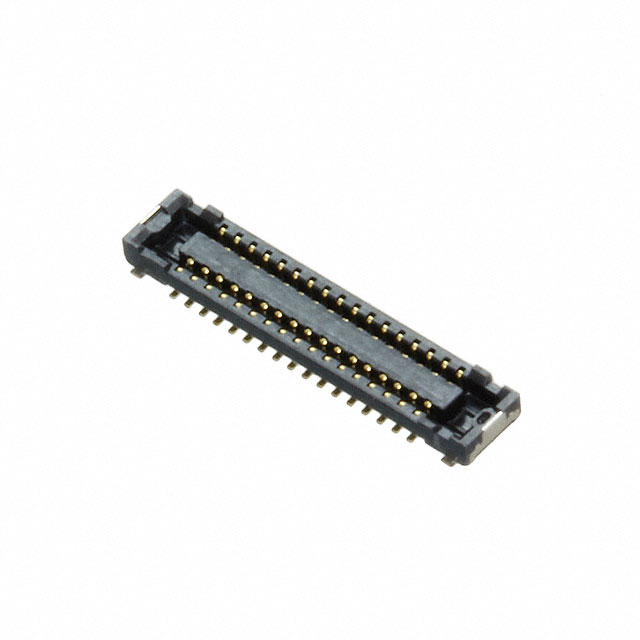

Panasonic Electronic Components AXE134527A	0.8 mm	Surface Mount	Socket Center Strip Contacts	34	Solder Retention	0.75 mm	0.03 in	2	0.4 mm	0.016 in	Gold
Panasonic Electronic Components AXE134224		Surface Mount	Socket Center Strip Contacts	34	Solder Retention			2	0.4 mm	0.016 in	Gold	1 mm 1.5 mm	0.038 in	0.97 mm
