RLC Series

Catalog

CURRENT SENSE RESISTORS - SMD 1210 2R40 5% LEAD FREE

Part	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Temperature Coefficient	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Package / Case	Package / Case	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Supplier Device Package	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Power (Watts)

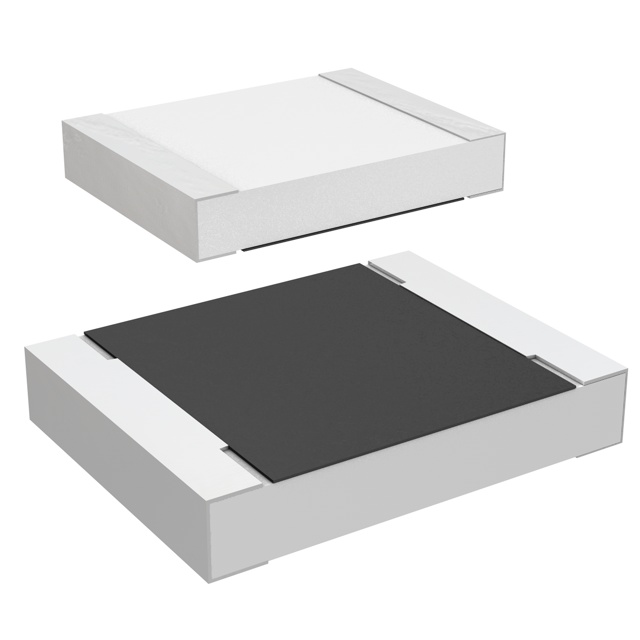

Kamaya Inc. RLC35K2R40JTE	2	0.6666666666666666 W	0.667 W	100 ppm/°C	Thick Film	155 C	-55 C	0.03 "	0.75 mm	5 %	1210	0.122 "	3.1 mm	0.098 in	2.5 mm	Automotive AEC-Q200	1210	3225 Metric	2.4 Ohms
Kamaya Inc. RLC16K10R0FTP	2	0.25 W	0.25 W	100 ppm/°C	Thick Film	155 C	-55 C			1 %		0.063 "	1.6 mm	0.031 in		Automotive AEC-Q200	0603	1608 Metric	10 Ohms	0.55 mm	0.022 in	0.8 mm

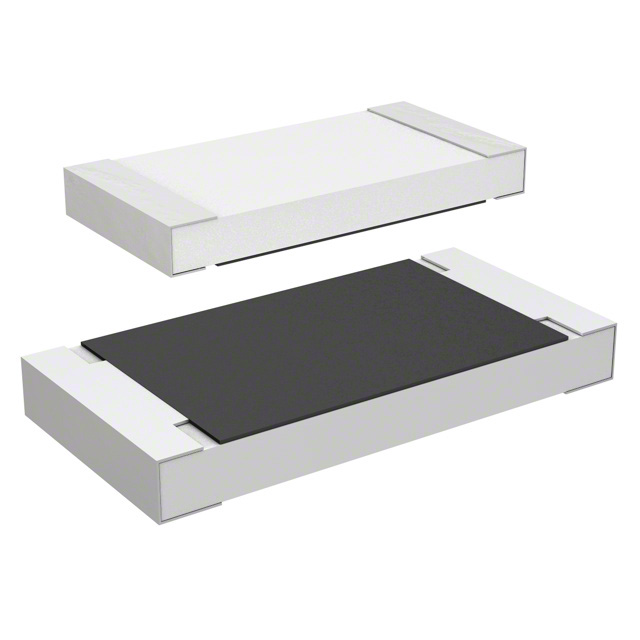

Kamaya Inc. RLC50-R060FTE	2		0.75 W		Thick Film	155 C	-55 C	0.03 "	0.75 mm	1 %		0.197 in	5 mm	0.098 in	2.5 mm	Automotive AEC-Q200	2010 (5025 Metric)		0.06 Ohms				2010	250 ppm/°C	0	3/4W
Kamaya Inc. RLC35-R240FTE	2	0.6666666666666666 W	0.667 W		Thick Film	155 C	-55 C	0.03 "	0.75 mm	1 %	1210	0.122 "	3.1 mm	0.098 in	2.5 mm	Automotive AEC-Q200	1210	3225 Metric	240 mOhms					200 ppm/°C	0

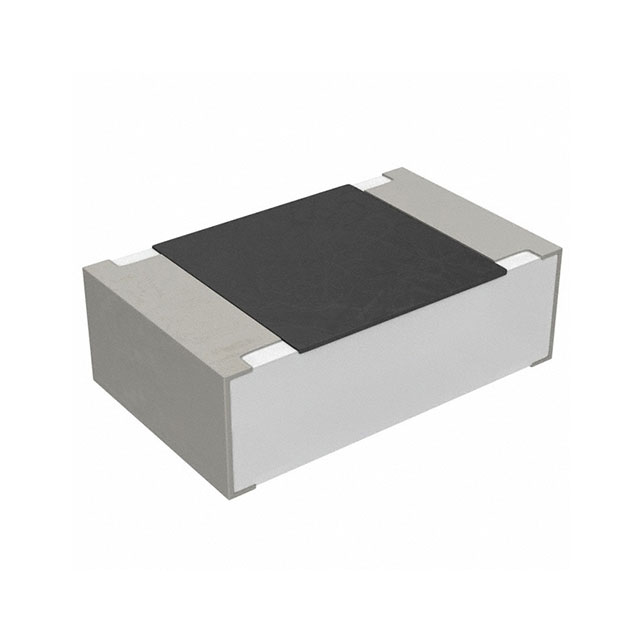

Kamaya Inc. RLC20K4R70FTP	2	0.3333333333333333 W	0.333 W	100 ppm/°C	Thick Film	155 C	-55 C	0.028 "	0.7 mm	1 %	0805	0.079 in	2 mm	0.049 "	1.25 mm	Automotive AEC-Q200	0805		4.7 Ohms
Kamaya Inc. RLC20-R390FTP	2	0.3333333333333333 W	0.333 W		Thick Film	155 C	-55 C	0.028 "	0.7 mm	1 %	0805	0.079 in	2 mm	0.049 "	1.25 mm	Automotive AEC-Q200	0805		390 mOhms					200 ppm/°C	0
Kamaya Inc. RLC35-R051FTE	2	0.6666666666666666 W	0.667 W		Thick Film	155 C	-55 C	0.03 "	0.75 mm	1 %	1210	0.122 "	3.1 mm	0.098 in	2.5 mm	Automotive AEC-Q200	1210	3225 Metric	51 mOhms					250 ppm/°C	0
Kamaya Inc. RLC16-R240JTP	2	0.25 W	0.25 W		Thick Film	155 C	-55 C			5 %		0.063 "	1.6 mm	0.031 in		Automotive AEC-Q200	0603	1608 Metric	240 mOhms	0.55 mm	0.022 in	0.8 mm		200 ppm/°C	0
Kamaya Inc. RLC63-R200FTE	2		1 W		Thick Film	155 C	-55 C	0.03 "	0.75 mm	1 %		0.248 in	6.3 mm	0.126 in	3.2 mm	Automotive AEC-Q200	2512 (6432 Metric)		200 mOhms				2512	200 ppm/°C	0
Kamaya Inc. RLC20KR650JTP	2	0.3333333333333333 W	0.333 W	100 ppm/°C	Thick Film	155 C	-55 C	0.028 "	0.7 mm	5 %	0805	0.079 in	2 mm	0.049 "	1.25 mm	Automotive AEC-Q200	0805		650 mOhms
