207378 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

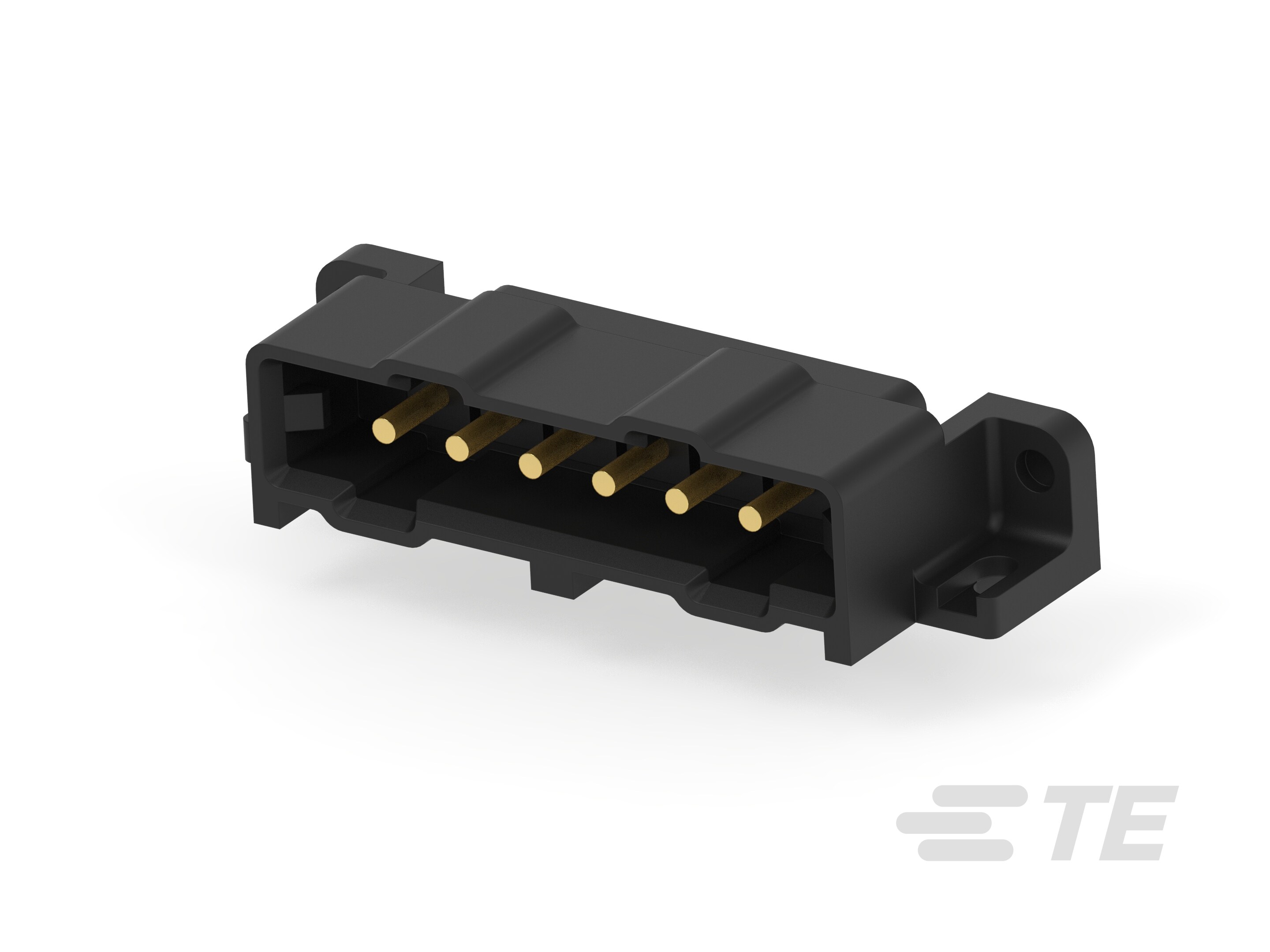

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 5 MM, 1 ROWS, 6 CONTACTS, THROUGH HOLE RIGHT ANGLE
| Part | Contact Finish Thickness - Post | Applications | Mounting Type | Connector Type | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Termination | Contact Material | Number of Positions | Voltage Rating | Contact Shape | Style | Current Rating (Amps) | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Finish - Mating | Contact Type | Fastening Type | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Shrouding | Contact Length - Post | Contact Length - Post | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | Automotive General Purpose Industrial | Right Angle Through Hole | Header | 0.5 " | 12.7 mm | 130 °C | -55 C | UL94 V-0 | Solder | Brass | 6 | 600 V | Circular | Board to Board Cable | 7.5 A | Nylon Polyamide (PA) | 0.76 Ám | 30 Áin | Mounting Flange | Gold | Male Pin | Latch Holder | Red | 0.197 " | 5 mm | All | Tin | Shrouded - 4 Wall | 0.192 in | 4.88 mm | 1 |
