3425 Series

Catalog

CONN RCPT 50P IDC 26-30AWG GOLD

Part	Features	Contact Type	Number of Positions	Mounting Type	Number of Rows [custom]	Cable Termination	Pitch	Pitch	Connector Type	Wire Type	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Row Spacing	Row Spacing	Wire Gauge
3M Electronic Specialty 3425-6050	Feed Through Strain Relief	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	30 AWG	2.54 mm	0.1 "
3M Electronic Specialty 3425-7606		Female Socket		Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	30 AWG	2.54 mm	0.1 "
3M Electronic Specialty 3425-7650	Closed End Polarizing Key Strain Relief	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	30 AWG	2.54 mm	0.1 "
3M Electronic Specialty 3425-H600	Feed Through Polarizing Key	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	28 AWG	2.54 mm	0.1 "	Stranded or Solid
3M Electronic Specialty 3425-7000	Closed End	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	30 AWG	2.54 mm	0.1 "
3M Electronic Specialty 3425-7600		Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	30 AWG	2.54 mm	0.1 "
3M Electronic Specialty 3425-H650	Feed Through Polarizing Key Strain Relief	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	28 AWG	2.54 mm	0.1 "	Stranded or Solid
3M Electronic Specialty 3425-G600	Feed Through Polarizing Key	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	28 AWG	2.54 mm	0.1 "	Stranded or Solid

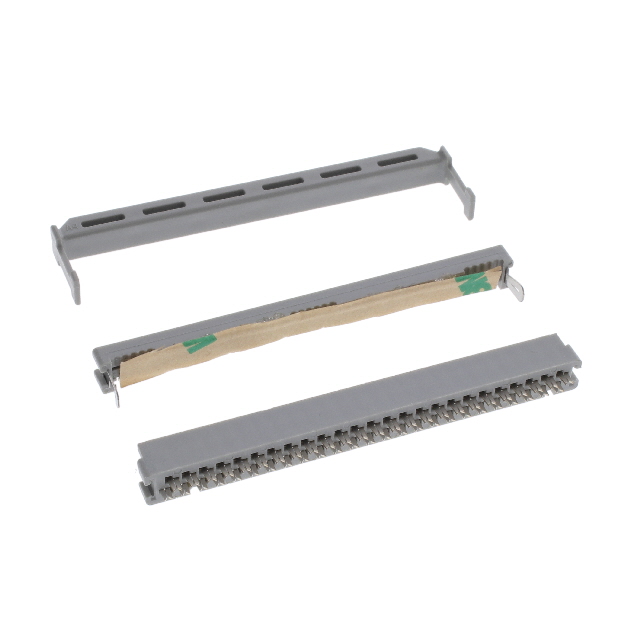

3M Electronic Specialty 3425-7050	Closed End Strain Relief	Female Socket	50	Free Hanging (In-Line)	2	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	26 AWG	30 AWG	2.54 mm	0.1 "
