KMM-LU Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 1200UF 200 VOLT

Part	Polarization	Capacitance	Ripple Current @ High Frequency	Applications	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Tolerance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKMM201VSN122MA35S	Polar	1.2 mF	3.975 A	General Purpose	207 mOhm	3000 Hrs	37 mm	1.457 in	2.65 A	0.394 in	10 mm	105 ░C	-25 °C	Through Hole	Radial Can - Snap-In	20 %	200 VDC	1.378 "	35 mm
Chemi-Con EKMM401VSN221MA25T	Polar	220 µF	1.573 A	General Purpose	1.13 Ohm	3000 Hrs			1.1 A	0.394 in	10 mm	105 ░C	-25 °C	Through Hole	Radial Can - Snap-In	20 %	400 V	1.378 "	35 mm	1.063 in	27 mm
Chemi-Con EKMM201VSN821MA25S	Polar	820 µF	3.06 A	General Purpose		3000 Hrs			2.04 A	0.394 in	10 mm	105 ░C	-25 °C	Through Hole	Radial Can - Snap-In	20 %	200 VDC	1.378 "	35 mm	1.063 in	27 mm

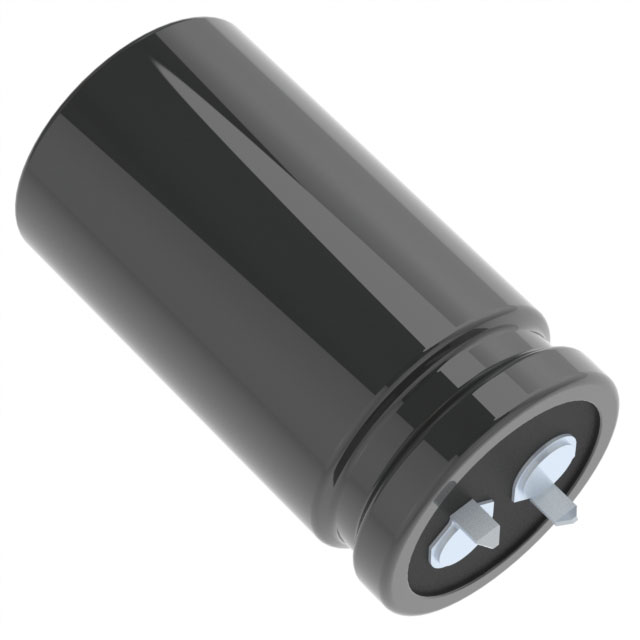

Chemi-Con EKMM401VSN271MQ45W	Polar	270 µF	1.7446 A	General Purpose	921 mOhm	3000 Hrs			1.22 A	0.394 in	10 mm	105 ░C	-25 °C	Through Hole	Radial Can - Snap-In	20 %	400 V	1 "	25.4 mm	1.85 in	47 mm
