770875 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

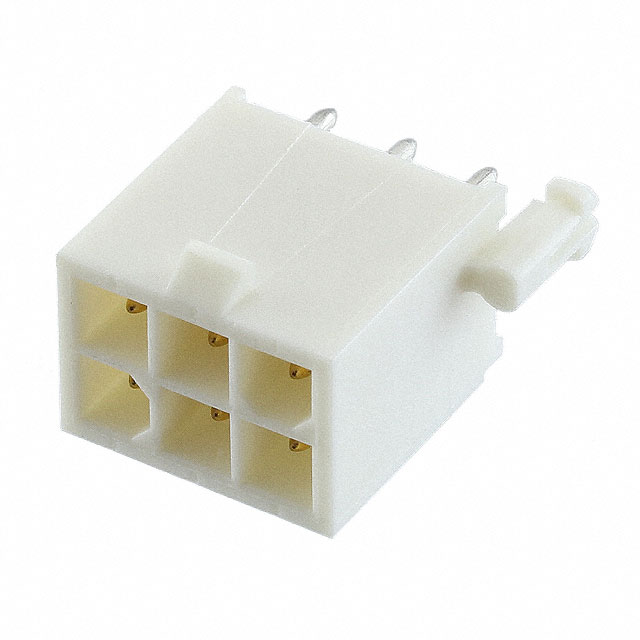

CONN HEADER VERT 6POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Style | Insulation Color | Contact Shape | Voltage Rating | Contact Material | Contact Type | Number of Positions Loaded | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Shrouding | Connector Type | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Insulation Material | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Board to Cable/Wire | White | Circular | 600 VAC | Brass | Male Pin | All | 6 | 4.14 mm | 0.163 in | 2 | 0.163 in | 4.14 mm | Shrouded - 4 Wall | Header | Varies by Wire Gauge | 4.45 mm | 0.175 in | 150 Áin | 3.81 Ám | Solder | UL94 V-0 | Through Hole | Tin-Lead | Nylon Polyamide (PA) | 13.5 mm | 0.531 in | 85 °C | -20 ░C | Locking Ramp | Board Lock | Tin-Lead |
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Board to Cable/Wire | White | Circular | 600 VAC | Brass | Male Pin | All | 6 | 4.14 mm | 0.163 in | 2 | 0.163 in | 4.14 mm | Shrouded - 4 Wall | Header | Varies by Wire Gauge | 4.45 mm | 0.175 in | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Through Hole | Gold | Nylon Polyamide (PA) | 13.5 mm | 0.531 in | 105 ░C | -20 ░C | Locking Ramp | Board Lock | Tin-Lead |
