FN9255B Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT RCPT IEC320-C20 PANEL QC

Part	Current Rating - Filter	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Ingress Protection	Mounting Type	Connector Type	Termination	Termination	Termination	Features	Filter Type	Approval Agency

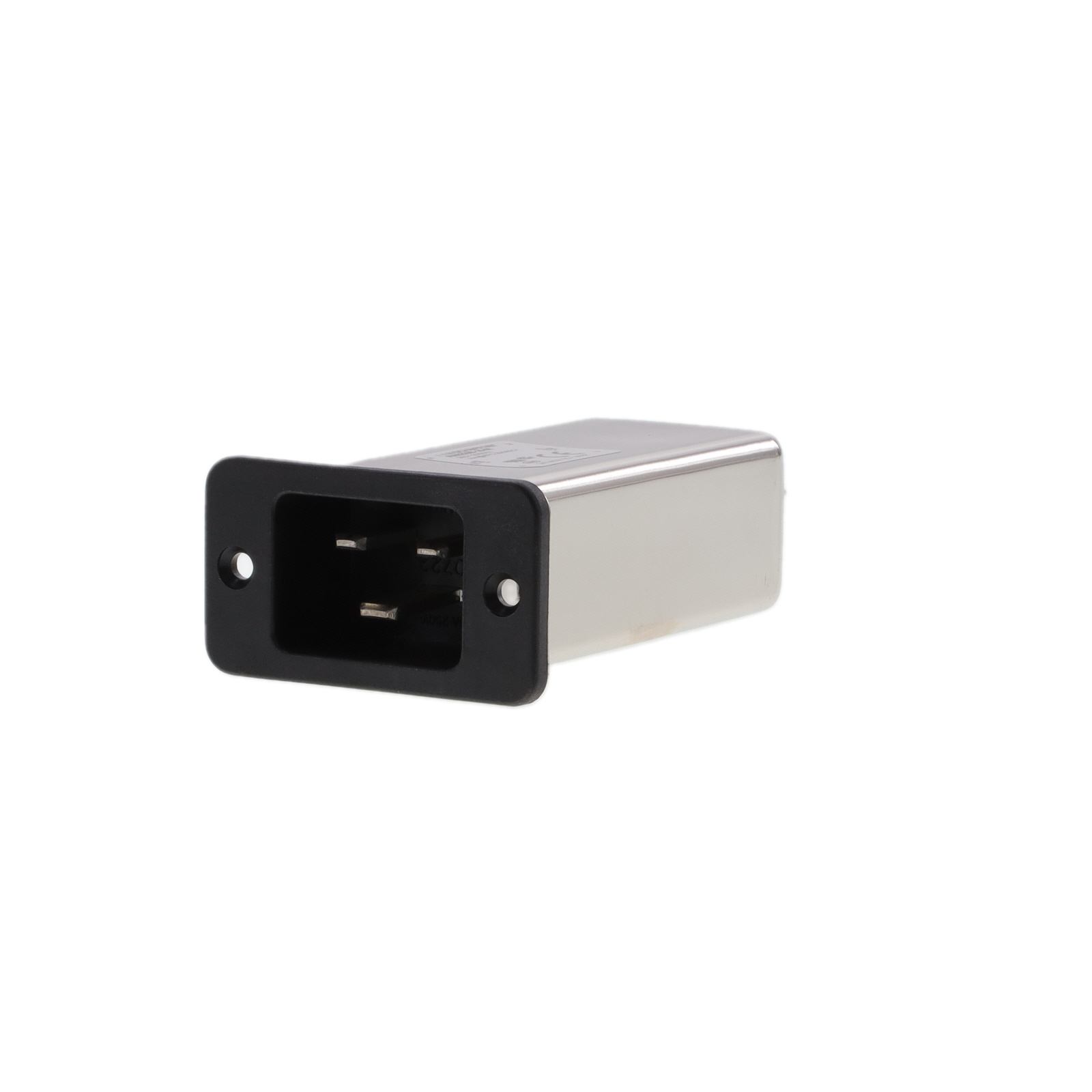

TE Connectivity AMP Connectors FN9255B-16-06	10 A	UL94 V-0	27.1 mm	34.9 mm	IEC 320-C20	IP40	Flange Panel Mount	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	Front Side Mount	Filtered (EMI RFI) - Commercial Medical	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255B-4-06	4 A	UL94 V-0			IEC 320-C14	IP40	Flange Panel Mount	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	Front Side Mount	Filtered (EMI RFI) - Commercial Medical	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255B-6-06	6 A	UL94 V-0			IEC 320-C14	IP40	Flange Panel Mount	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	Front Side Mount	Filtered (EMI RFI) - Commercial Medical	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255B-4-06	4 A	UL94 V-0			IEC 320-C14	IP40	Flange Panel Mount	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	Front Side Mount	Filtered (EMI RFI) - Commercial Medical	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255B-6-06	6 A	UL94 V-0			IEC 320-C14	IP40	Flange Panel Mount	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	Front Side Mount	Filtered (EMI RFI) - Commercial Medical	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255B-16-06	10 A	UL94 V-0	27.1 mm	34.9 mm	IEC 320-C20	IP40	Flange Panel Mount	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	Front Side Mount	Filtered (EMI RFI) - Commercial Medical	CE CQC ENEC UR
