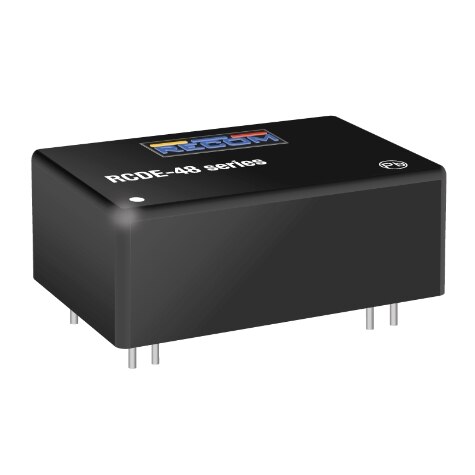

RCDE-48 Series
Manufacturer: Recom Power
Beta
⌘K
LED LIGHTING DRIVERS 6-60VI 3-52VO 350MA REG
| Part | Topology | Voltage - Input (Max) [Max] | Voltage - Output [Min] | Voltage - Output [Max] | Type | Voltage - Input (Min) [Min] | Features | Efficiency | Number of Outputs | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Dimming | Operating Temperature | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Buck | 60 V | 3 V | 52 V | Constant Current | 6 V | OTP | 97 % | 1 | 24-DIP Module 9 Leads | 32.1 mm | 0.81 " | 20.6 mm | 0.48 " | 1.26 in | 12.3 mm | Through Hole | Analog PWM | 105 C | 350 mA |
 Recom Power | Buck | 60 V | 3 V | 52 V | Constant Current | 6 V | OTP | 97 % | 1 | 24-DIP Module 9 Leads | 32.1 mm | 0.81 " | 20.6 mm | 0.48 " | 1.26 in | 12.3 mm | Through Hole | Analog PWM | 105 C | 1.05 A |
