12246 Series
Manufacturer: APEM Inc.
Beta
⌘K

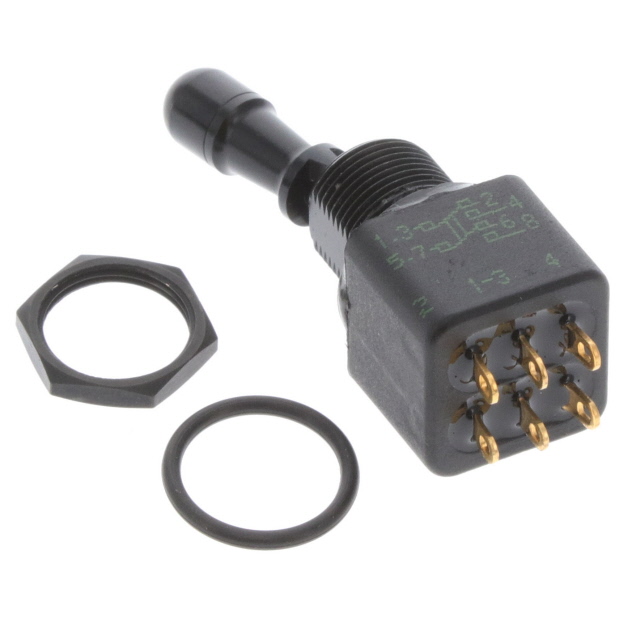

SWITCH TOGGLE DPDT 4A 125V
| Part | Actuator Material | Actuator Type | Features | Voltage Rating - AC | Mounting Type | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Circuit | Illumination | Panel Cutout Dimensions [diameter] | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | Locking Lever | Epoxy Sealed Terminals | 125 V | Panel Mount | 15/32-32 | 85 °C | -40 C | PC Pin | DPDT | Non-Illuminated | 12.5 mm | On-On | 4 A | 30 V | 19.4 mm |
