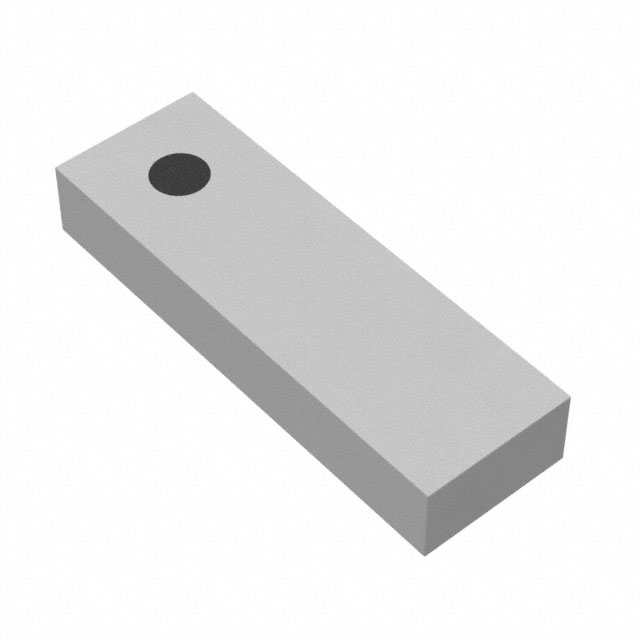

ANT1003 Series
Manufacturer: Pulse Electronics
Beta
⌘K
RF ANT 2.442GHZ/5.35GHZ CHIP SLD
| Part | Applications | Antenna Type | Number of Bands | Return Loss | Height (Max) | Mounting Type | RF Family/Standard | Gain | Frequency Group Minimum (SHF) | Frequency Group | Frequency Group Maximum (UHF) | Frequency Group Minimum (UHF) | Frequency (Band) | Frequency (Center) | Power - Max | Termination | Frequency Range (Band 2) Maximum | Frequency Range (Band 1) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Minimum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | ISM | Chip | 2 | 6.5 dB | 0.063 in | Surface Mount | General ISM | 1.55 dBi 2.45 dBi | 4 GHz | SHF UHF | 3 GHz | 2 GHz | 5.35 GHz | 2.442 GHz | 1 VA | Solder | 5.85 GHz | 2.4 GHz | 2.484 GHz | 5.15 GHz |
