ESD128 Series
Manufacturer: INFINEON
Beta
⌘K

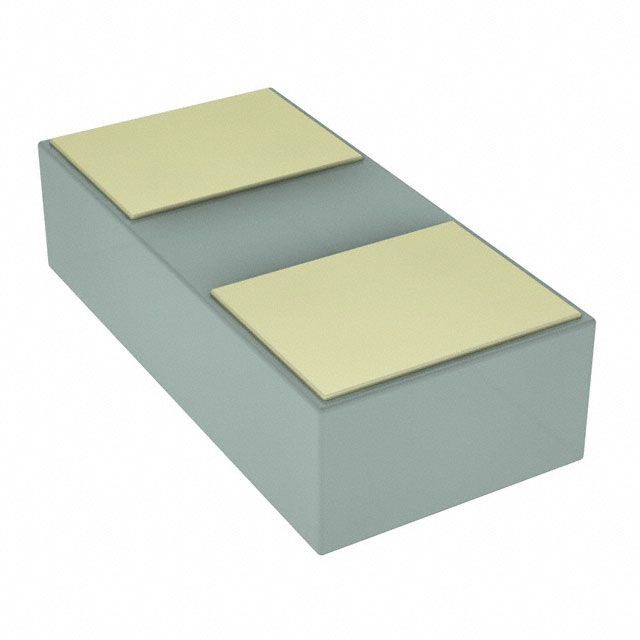

DIODE, ESD PROTECTION, 18V, WLL-2-1
| Part | Voltage - Reverse Standoff (Typ) | Power - Peak Pulse | Package / Case | Package / Case | Capacitance @ Frequency | Applications | Voltage - Breakdown (Min) [Min] | Mounting Type | Bidirectional Channels [custom] | Supplier Device Package | Type | Power Line Protection | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Clamping (Max) @ Ipp [Max] | Current - Peak Pulse (10/1000µs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 13 V | 53 W | 0603 Metric | 0201 | 0.3 pF | RF Antenna | 20 V | Surface Mount | 1 | WLL-2-1 | Zener | -55 ░C | 125 °C | 18.5 V | 2 A |
