120 ATC Series
Manufacturer: Vishay Dale
Beta
⌘K

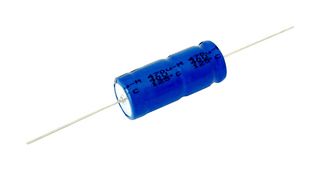

ELECTROLYTIC CAPACITOR, 120 ATC SERIES, 1000 ΜF, 40 V, ± 20%, AXIAL LEADED, 8000 HOURS @ 125°C
| Part | Impedance | Operating Temperature (Max) | Operating Temperature (Min) | ESR (Equivalent Series Resistance) | Capacitance | Tolerance | Voltage - Rated | Package / Case | Ripple Current | Mounting Type | Size / Dimension Length | Size / Dimension Diameter | Lifetime | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 49 mOhm | 125 °C | -40 °C | 59 mOhm | 1000 µF | 20 % | 40 V | Axial Can | 3.15 A | Through Hole | 1.181 in | 0.709 in | 8000 Hrs | Automotive | AEC-Q200 |
 Vishay Dale | 381 mOhm | 125 °C | -40 °C | 389 mOhm | 100 µF | 20 % | 100 VAC/DC | Axial Can | 1.14 A | Through Hole | 1.181 in | 0.492 in | 8000 Hrs | Automotive | AEC-Q200 |
 Vishay Dale | 70 mOhms | 125 °C | -40 °C | 101 mOhm | 470 µF | 20 % | 40 V | Axial Can | 2.55 A | Through Hole | 1.181 in | 0.492 in | 8000 Hrs | Automotive | AEC-Q200 |
