FA1004SA Series
Manufacturer: JAE Electronics
Beta
⌘K

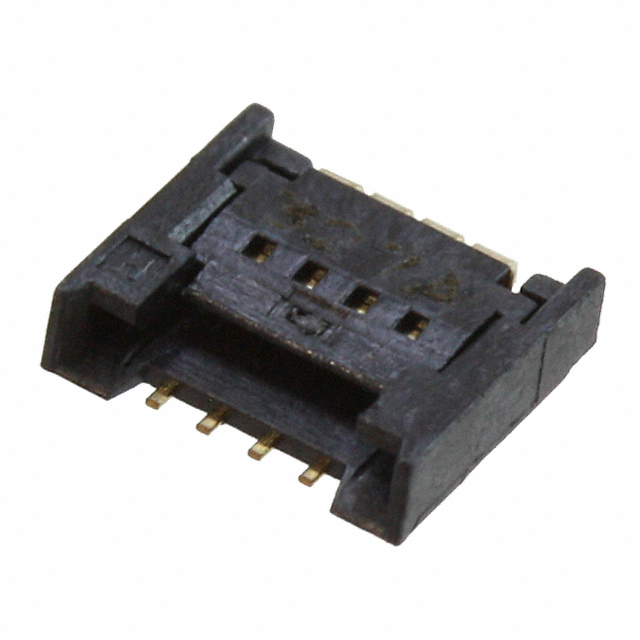

CONN FPC 4POS 0.5MM R/A
| Part | Current Rating (Amps) | Mating Cycles | Housing Color | Actuator Color | Housing Material | Contact Material | FFC, FCB Thickness [custom] | Mounting Type | Number of Positions | Features | Termination | Contact Finish | Height Above Board [z] | Height Above Board [z] | Material Flammability Rating | Voltage Rating | Connector/Contact Type | Cable End Type | Pitch | Pitch | Actuator Material | Flat Flex Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 500 mA | 20 | Black | Black | Plastic | Copper Alloy | 0.2 mm | Right Angle Surface Mount | 4 | Low Insertion Force (LIF) | Solder | Gold | 0.88 mm | 0.035 in | UL94 V-0 | 50 V | Contacts Top and Bottom | Tabbed | 0.02 " | 0.5 mm | Plastic | FPC | 85 °C | -40 C |
