Specification	6-1419166-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Get .64 Connector System Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Termination	Insulation Material	Mounting Type	Connector Type	Note	Color	Number of Positions	Number of Rows	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish	Pin or Socket	Wire Gauge	Fastening Type	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 1-1419158-9	100 °C	-40 °C	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Gray	23

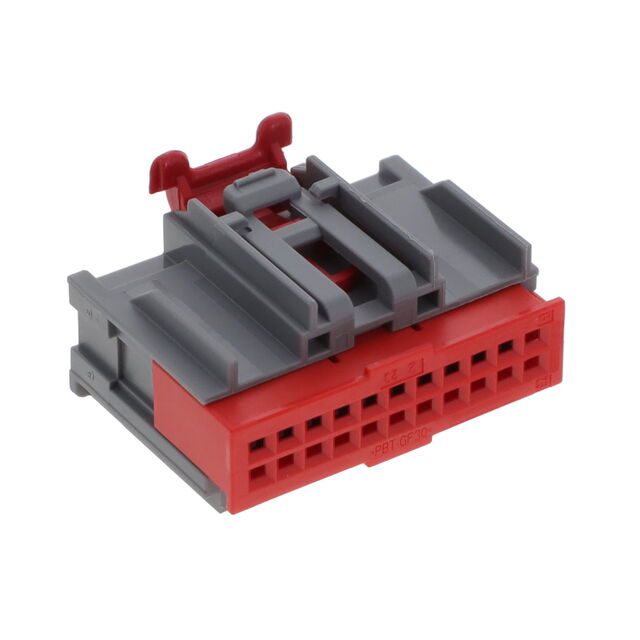

TE Connectivity Raychem Cable Protection 1-1419158-7	100 °C	-40 °C	Female Socket	Crimp	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Black	22 positions	2
TE Connectivity Raychem Cable Protection 1419158-1			Female Socket	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Black	6	1
TE Connectivity Raychem Cable Protection 1419158-2			Female Socket	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Black	6	1
TE Connectivity Raychem Cable Protection 1-1419158-4	100 °C	-40 °C	Female Socket	Crimp	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Black	10	2	0.1 in	2.54 mm	2.54 mm	0.1 in

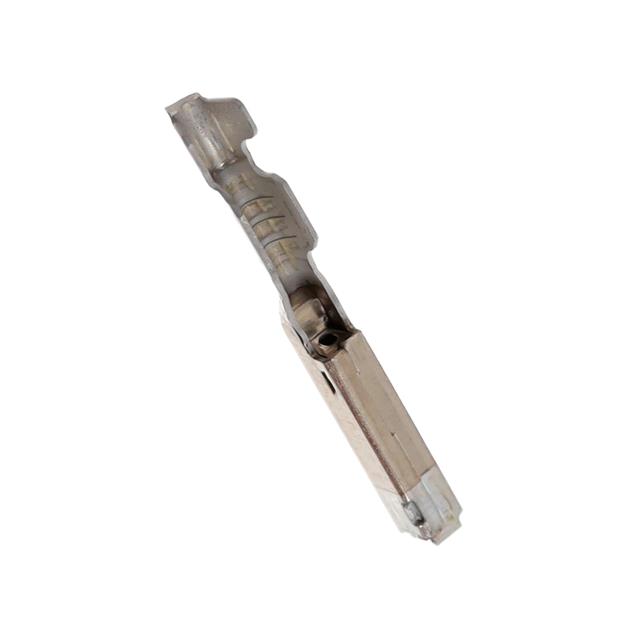

TE Connectivity Raychem Cable Protection 1393364-1				Crimp												Flash	Gold	Socket	22 AWG
TE Connectivity Raychem Cable Protection 2-1419158-7	100 °C	-40 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Plug	Contacts Not Included	Black	22 positions	2									Locking Ramp
TE Connectivity Raychem Cable Protection 1420011-1	100 °C	-40 °C	Female Socket	Crimp	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Black	22 positions	2

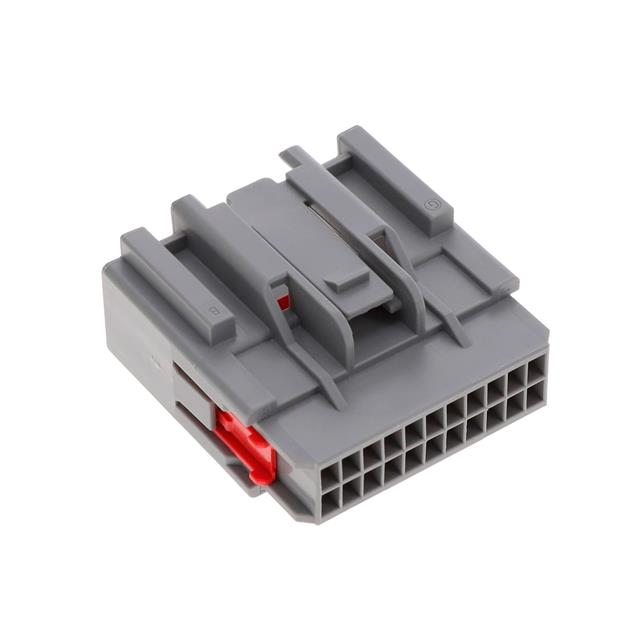

TE Connectivity Raychem Cable Protection 2-1419158-8	100 °C	-40 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Plug	Contacts Not Included	Black	22 positions	2									Locking Ramp

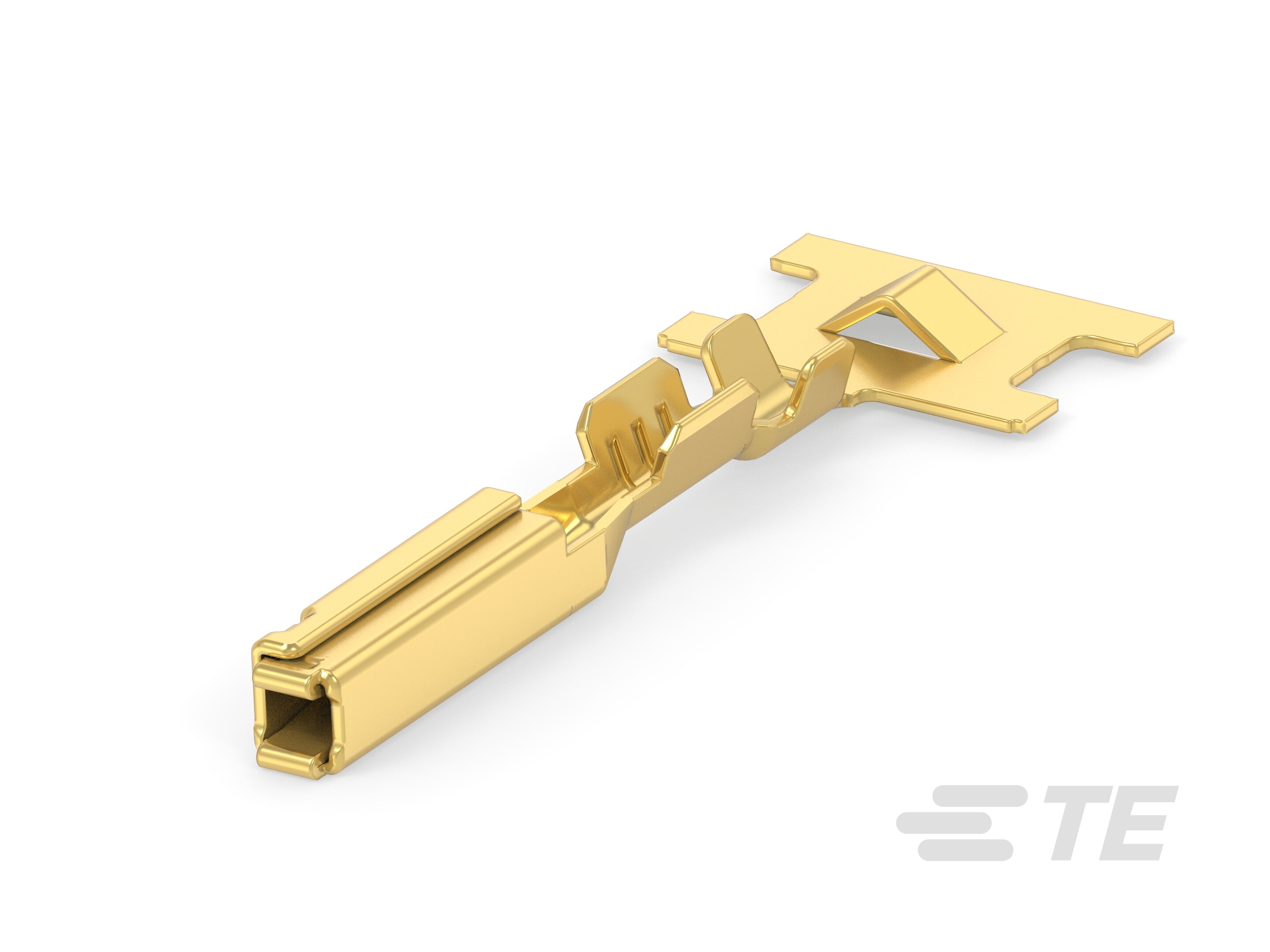

TE Connectivity Raychem Cable Protection 1393364-2				Crimp													Gold	Socket	22 AWG		15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.81
		10	$ 2.55
		25	$ 2.41
		50	$ 2.36
		100	$ 2.25
		250	$ 1.97
		500	$ 1.91
		1500	$ 1.57
		3000	$ 1.52

Description

General part information

Get .64 Connector System Series

8 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.54 mm [.1 in] Centerline, Black, Wire & Cable, Signal, Get .64 Connector System

Documents

Technical documentation and resources

GET 0.64 Interconnection System

Datasheets & Catalog Pages

Mounting and Dismounting Global Electronic Technology (GET) Market Male (Unsealed) Connector

Instruction Sheets

ENG_CD_9-1419157-4_C4.pdf

Product Drawings
