175287-5, 175284-5

Connectors, Interconnects

175287-5

Active

TE Connectivity Raychem Cable Protection

RECTANGULAR POWER CONTACT, DYNAMIC D-3000 SERIES, TIN PLATED CONTACTS, COPPER ALLOY, PIN, CRIMP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Datasheet +7

175287-5, 175284-5

Connectors, Interconnects

175287-5

Active

TE Connectivity Raychem Cable Protection

RECTANGULAR POWER CONTACT, DYNAMIC D-3000 SERIES, TIN PLATED CONTACTS, COPPER ALLOY, PIN, CRIMP ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image EN Datasheet +7

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	175287-5

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Tab
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
		10	$ 0.18
		25	$ 0.18
		50	$ 0.18
		100	$ 0.16
		250	$ 0.14
		500	$ 0.13
LCSC	Piece	1	$ 0.24
		10	$ 0.24
		30	$ 0.24
		100	$ 0.23
Newark	Each	10	$ 0.23
		25	$ 0.21
		100	$ 0.19
		500	$ 0.17
		1000	$ 0.14

Description

General part information

Dynamic 3000 Series Series

Headers & Wire Housings 6 POS HOUSING TAB KEY XX

Documents

Technical documentation and resources

3D Product Image EN

Datasheet

Datasheet

Digital Datasheet

STRAIGHT ACTION HAND TOOL 919600-1,919601-1 and 919602-1 for DYNAMIC D-3-S,M,L

Instruction Sheets

Dynamic D-3800 Series With HTS Connector

Product Specifications

Dynamic Connector D-3000 Series

Product Specifications

DYNAMIC Series D-3, Crimp-in Type Contacts

Product Specifications

DYNAMIC D-2600 SERIES HYBRID 48P CONN

Product Specifications

TUV_CERT_R09151488_C1

Agency Approvals

Dynamic 3000 Series Series

Headers & Wire Housings 6 POS HOUSING TAB KEY XX

...

Part	Insulation Height	Insulation Height	Style	Number of Positions	Voltage Rating	Fastening Type	Number of Positions Loaded	Contact Material	Contact Finish - Mating	Connector Type	Insulation Color	Contact Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Number of Rows	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Termination	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Note	Color	Pitch [x]	Pitch [x]	Contact Termination	Features

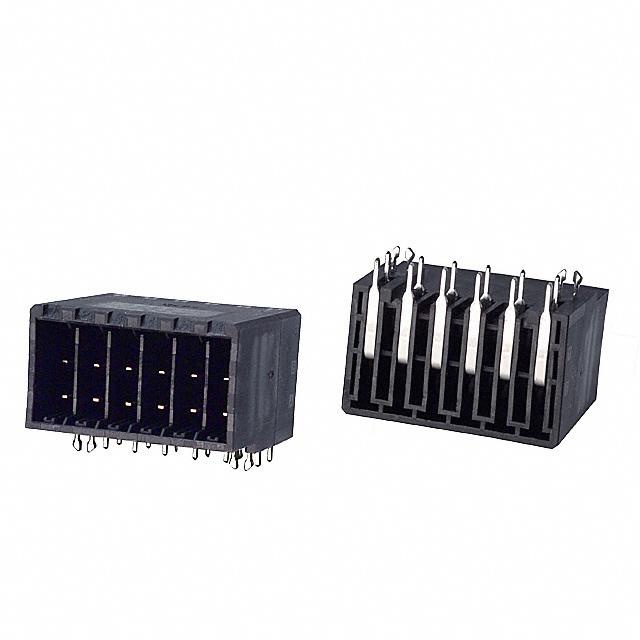

TE Connectivity Raychem Cable Protection 177555-2	0.774 in	19.67 mm	Board to Board Cable	12	600 V	Detent Lock	All	Copper Alloy	Gold PdNi +Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole Right Angle	105 ░C	-55 °C	5.08 mm	0.2 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	2	Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 6-178136-2

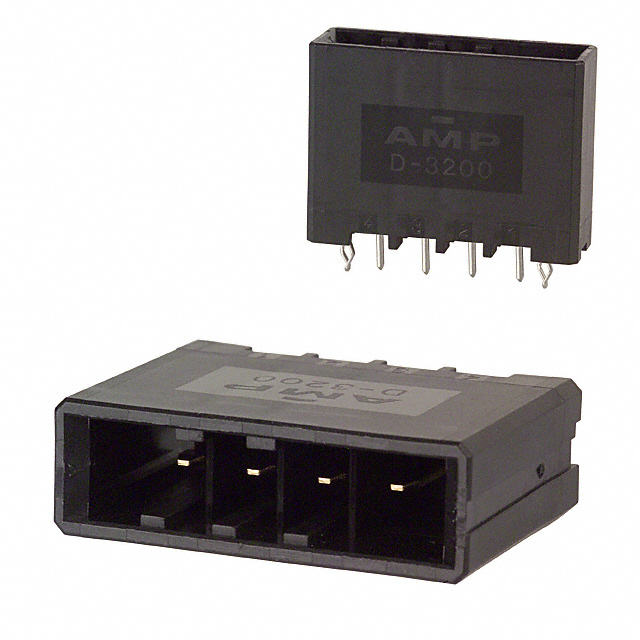

TE Connectivity Raychem Cable Protection 2-917338-3	0.85 in	21.59 mm	Board to Board Cable	4	600 V	Detent Lock	All	Copper Alloy	Gold PdNi +Gold	Header	Black	Tab	General Purpose Industrial	30 Áin	0.76 Ám	Through Hole	105 ░C	-55 °C	5.08 mm	0.2 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder	31 mm	32.5 mm

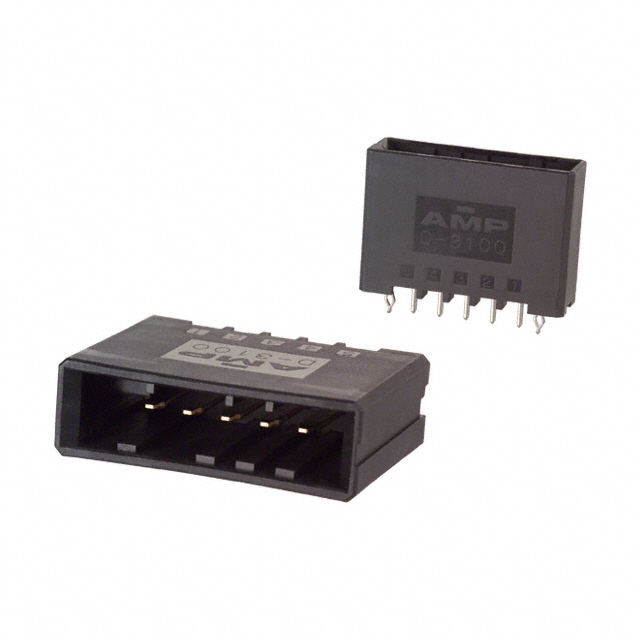

TE Connectivity Raychem Cable Protection 1-178315-2	0.85 in	21.59 mm	Board to Board Cable		250 VDC	Detent Lock	All	Copper Alloy	Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder

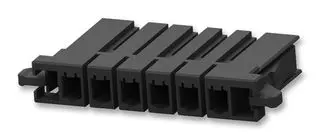

TE Connectivity Raychem Cable Protection 1-178128-6				6						Receptacle		Female Socket				Free Hanging (In-Line)	105 ░C	-55 °C				Glass Filled Polyester Thermoplastic	1											Contacts Not Included	Black	0.2 in	5.08 mm	Crimp	Polarizing Key

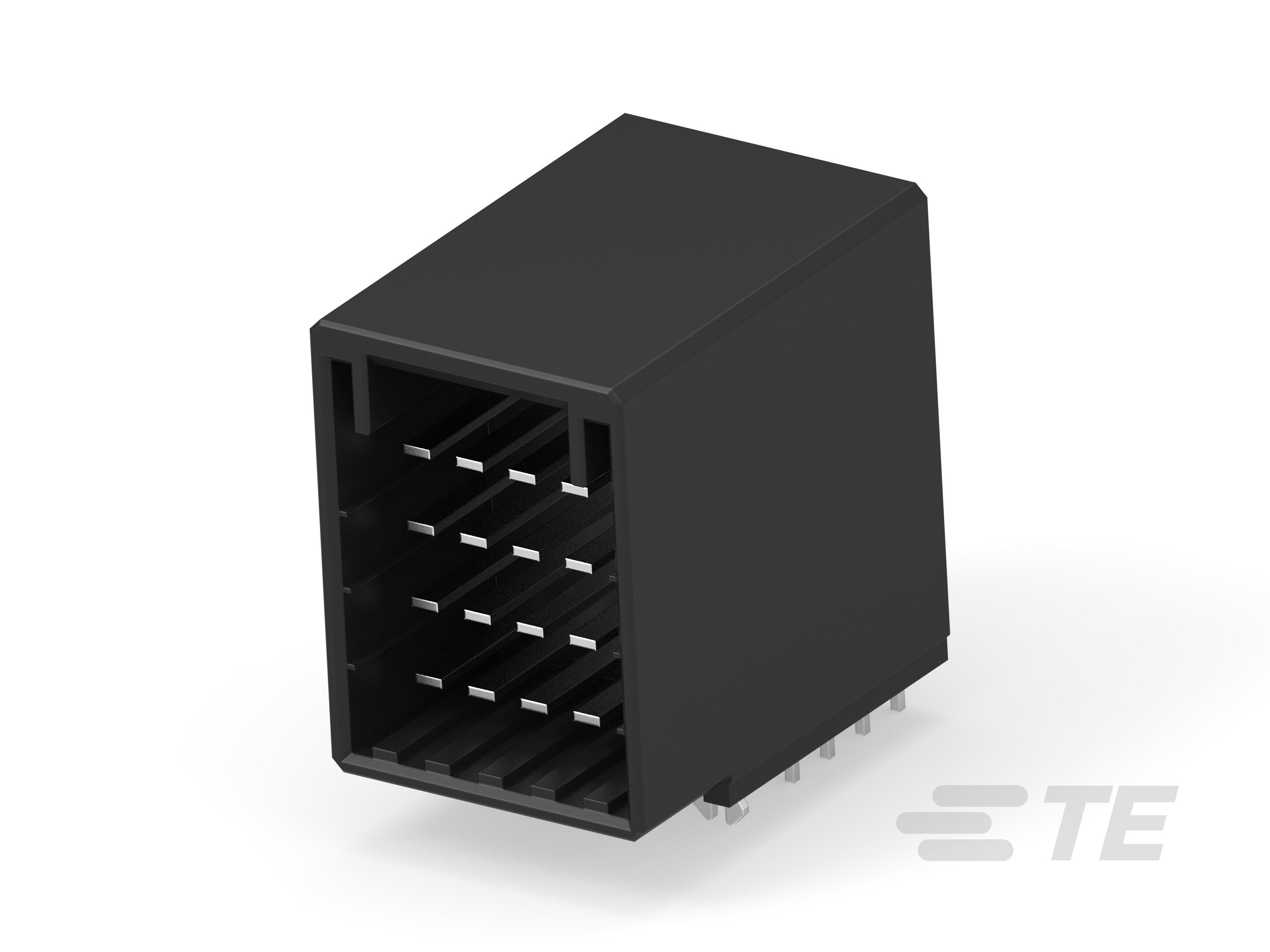

TE Connectivity Raychem Cable Protection 917251-5	1.244 in	31.6 mm	Board to Board Cable	20	250 VDC	Detent Lock	All	Copper Alloy		Header	Black	Tab	General Purpose Industrial	78.7 µin	2 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic		Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1827150-1
TE Connectivity Raychem Cable Protection 5-178216-2	1.244 in	31.6 mm	Board to Board Cable	12	250 VDC	Detent Lock	All	Copper Alloy	Gold	Header	Black	Tab	General Purpose Industrial	15 µin	0.38 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic		Tin	Rectangular	0.15 in	3.81 mm	5.08 mm	0.2 "	UL94 V-0	Solder
TE Connectivity Raychem Cable Protection 1-178298-5	0.368 in	9.35 mm	Board to Board Cable	10	250 VDC	Detent Lock	All	Copper Alloy		Header	Black	Tab	General Purpose Industrial	78.7 µin	2 µm	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Shrouded - 4 Wall	Glass Filled Polyester Thermoplastic	1	Tin	Rectangular	0.15 in	3.81 mm			UL94 V-0	Solder

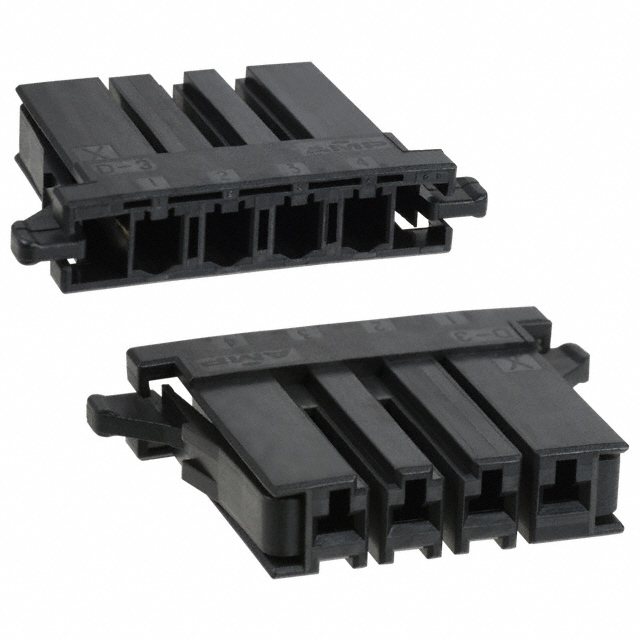

TE Connectivity Raychem Cable Protection 1-178128-4				4						Receptacle		Female Socket				Free Hanging (In-Line)	105 ░C	-55 °C				Glass Filled Polyester Thermoplastic	1											Contacts Not Included	Black	0.2 in	5.08 mm	Crimp	Polarizing Key
