Connectors, Interconnects

1-2332040-2

Obsolete

TE Connectivity Raychem Cable Protection

HEAVY DUTY POWER CONNECTORS PWR VERSA-LOCK PLUG, 1X2 KEY A

Deep-Dive with AI

Search across all available documentation for this part.

Connectors, Interconnects

1-2332040-2

Obsolete

TE Connectivity Raychem Cable Protection

HEAVY DUTY POWER CONNECTORS PWR VERSA-LOCK PLUG, 1X2 KEY A

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2332040-2

Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C

Power Versa-Lock 5.0 Series

Heavy Duty Power Connectors PWR VERSA-LOCK PERIMETER SEAL, 1X3

Part	Contact Termination	Insulation Material	Mounting Type	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Row Spacing [Max] [custom]	Row Spacing [Max] [custom]	Pitch [x]	Pitch [x]	Number of Rows	Color	Connector Type	Note	Contact Finish	Type	Pin or Socket
TE Connectivity Raychem Cable Protection 1-2370527-9	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Female Socket	9	-30 ░C	130 °C	Latch Holder	7.25 mm	0.285 in	5 mm	0.197 in	3	Blue	Plug

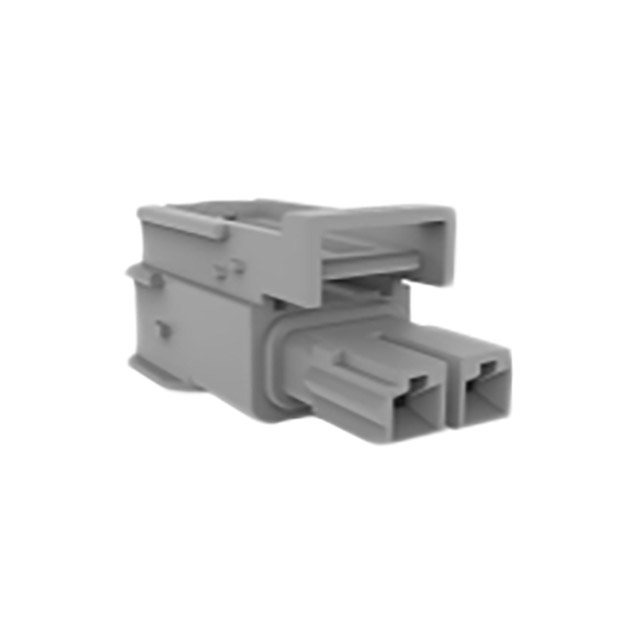

TE Connectivity Raychem Cable Protection 2-2378159-2	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Female Socket	2	-30 ░C	105 ░C	Latch Holder					1	Gray	Plug	Contacts Not Included
TE Connectivity Raychem Cable Protection 2329907-1	Crimp																Tin	Power	Tab

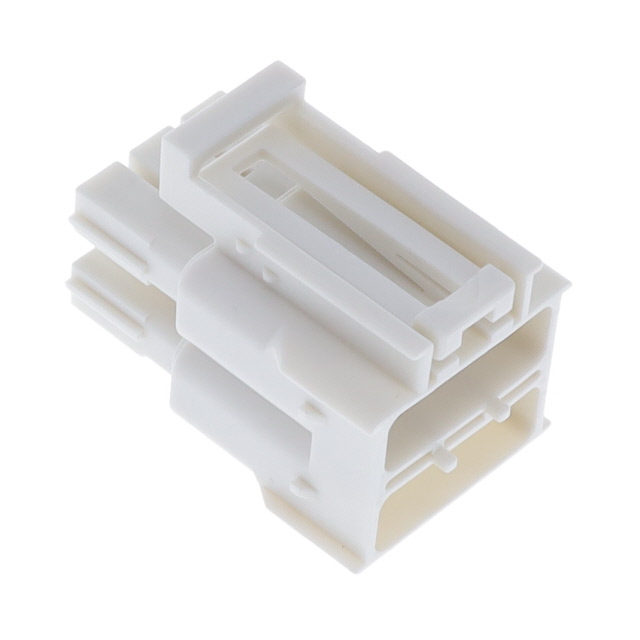

TE Connectivity Raychem Cable Protection 1-2336229-6	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Female Socket	6	-30 ░C	140 °C	Latch Lock	7.25 mm	0.285 in	5 mm	0.197 in	2	Natural	Plug	Contacts Not Included

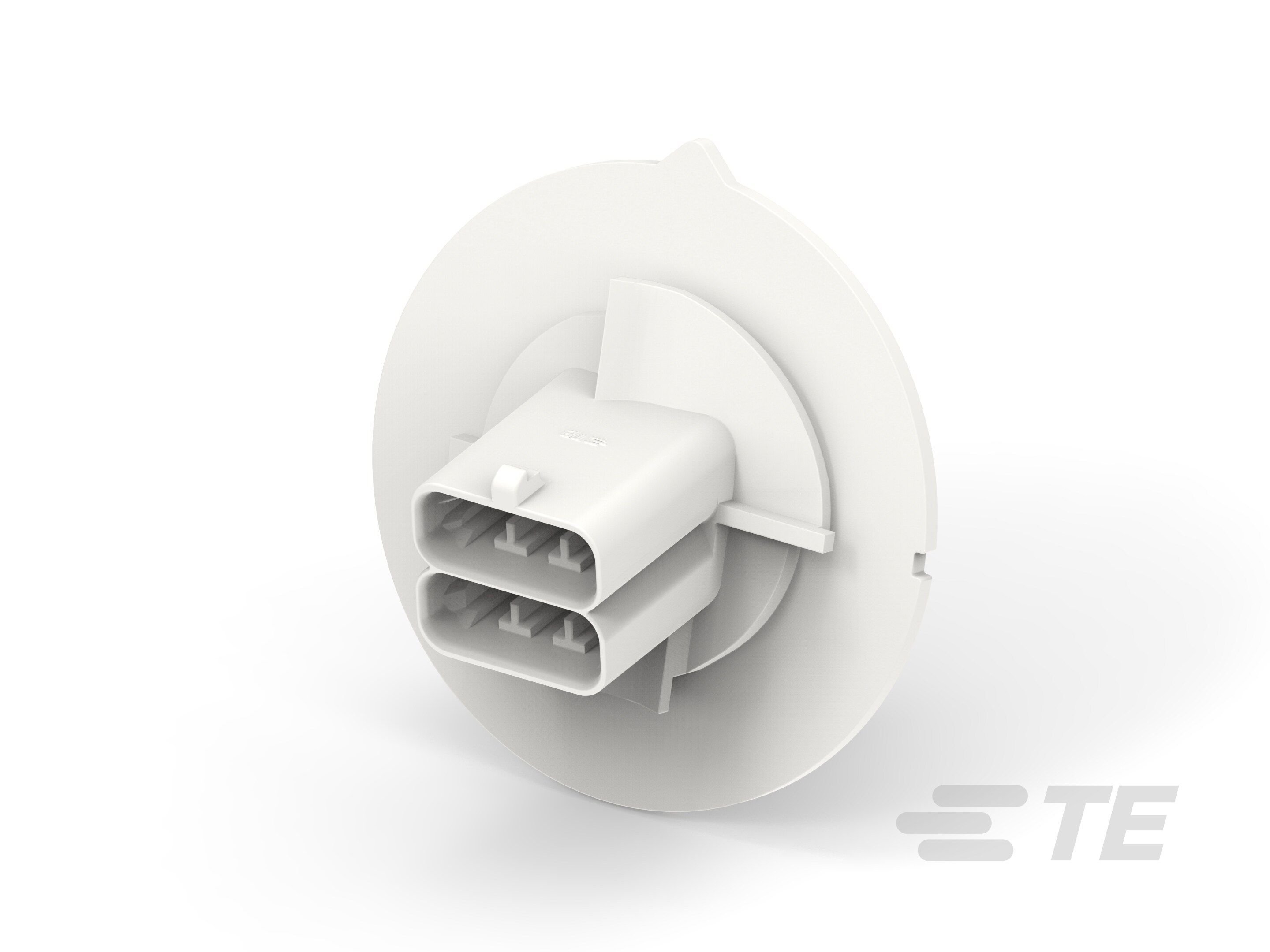

TE Connectivity Raychem Cable Protection 1-2336231-6	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Twist and Lock	Tab	6	-30 ░C	140 °C				5 mm	0.197 in	2	Natural	Receptacle	Contacts Not Included
TE Connectivity Raychem Cable Protection 4-2378158-2

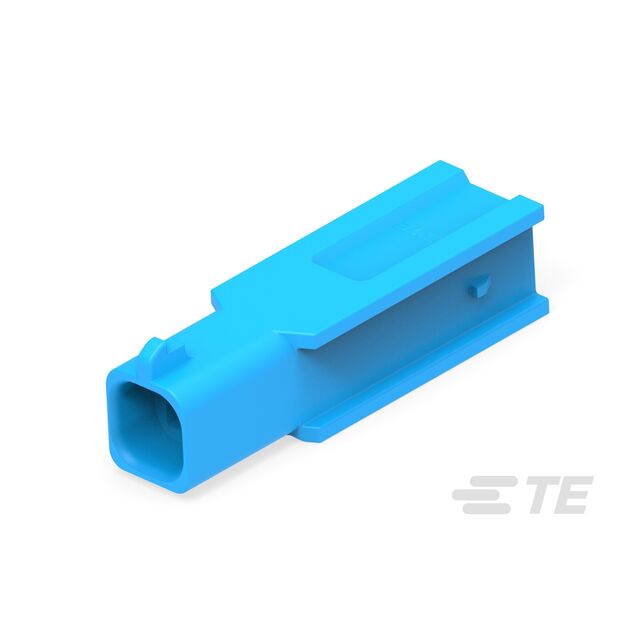

TE Connectivity Raychem Cable Protection 1-2381313-1	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Tab	1	-30 ░C	105 ░C	Locking Ramp					1	Blue	Plug
TE Connectivity Raychem Cable Protection 3-2378158-3	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Snap-In	Tab		-30 ░C	140 °C	Latch Holder			5 mm	0.197 in	1	Brown	Receptacle
TE Connectivity Raychem Cable Protection 3-2378158-4
TE Connectivity Raychem Cable Protection 6-2378158-2
