Connectors, Interconnects

HCP.2S.304.CLLPV

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS FIXED RECEPTACLE NUT FIXING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

HCP.2S.304.CLLPV

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS FIXED RECEPTACLE NUT FIXING

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HCP.2S.304.CLLPV

Applications	Military, Aviation
Color	Silver
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Material	Bronze, Brass
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Features	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

FFP.2S Series

Circular Push Pull Connectors 7P STRT PLUG SOLDER CABLE COLLET 8.2MM

Part	Material Flammability Rating	Color	Backshell Material, Plating	Contact Finish - Mating	Shell Finish	Orientation	Fastening Type	Shell Material	Shielding	Primary Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material	Ingress Protection	Number of Positions	Mounting Type	Connector Type	Insert Material	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Mounting Feature	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
LEMO FFP.2S.306.CLAC52Z	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	306	-55 °C	250 °C	12 A	0.165 in 0.205 in	4.2 mm	5.2 mm	Brass Bronze	IP50	6	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell
LEMO FFP.2S.304.CLAC72	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	304	-55 °C	250 °C	15 A				Brass Bronze	IP50	4	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell	0.244 in 0.283 in	6.2 mm 7.2 mm

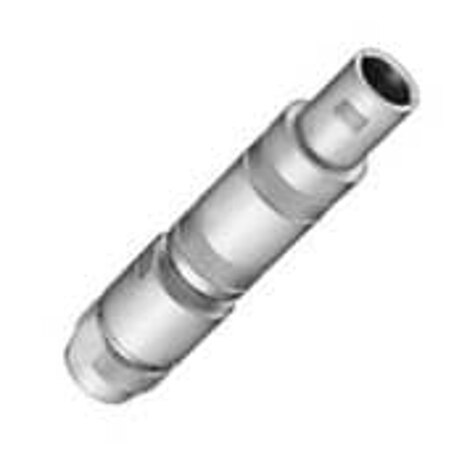

LEMO FFA.2S.310.CLAK97	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	310	-55 °C	250 °C	7 A		8.7 mm	9.7 mm	Brass Bronze	IP50	10	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell			0.343 in 0.382 in
LEMO PSA.2S.306.CLLC72	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	306	-55 °C	250 °C	12 A				Brass Bronze	IP50	6	Free Hanging (In-Line) Panel Mount	Female Sockets Male Pins Receptacle	Polyetheretherketone (PEEK)	Backshell	0.244 in 0.283 in	6.2 mm 7.2 mm		Bulkhead - Rear Side Nut
LEMO FFP.2S.308.CLAC52	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	308	-55 °C	250 °C	9 A	0.165 in 0.205 in	4.2 mm	5.2 mm	Brass Bronze	IP50	8	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell
LEMO FFP.2S.304.CLAC52	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	304	-55 °C	250 °C	15 A	0.165 in 0.205 in	4.2 mm	5.2 mm	Brass Bronze	IP50	4	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell
LEMO FFP.2S.302.CLAC72	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	302	-55 °C	250 °C	20 A				Brass Bronze	IP50	2	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell	0.244 in 0.283 in	6.2 mm 7.2 mm
LEMO FFP.2S.304.BLAL62Z	UL94 V-0	Black	Acetal Polyoxymethylene (POM)	Gold		Keyed	Push-Pull	Acetal Polyoxymethylene (POM)	Shielded	Plastic	304	-50 °C	115 °C	15 A				Brass Bronze	IP50	4	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell					6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FFP.2S.307.CLAC72	UL94 V-0	Silver	Brass Chrome	Gold	Chrome	Keyed	Push-Pull	Brass	Shielded	Metal	307	-55 °C	250 °C	9 A 12 A				Brass Bronze	IP50	7	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Polyetheretherketone (PEEK)	Backshell	0.244 in 0.283 in	6.2 mm 7.2 mm
LEMO FFP.2S.306.ZLA	UL94 V-0			Gold		Keyed			Shielded		306	-55 °C	250 °C	12 A				Brass Bronze	IP50	6		Female Sockets Insert Male Pins	Polyetheretherketone (PEEK)	Insert Only Requires Shell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.44
Sager	N/A	1	$ 89.20
		10	$ 84.74
		25	$ 80.50
		100	$ 76.48
		250	$ 72.65
		500	$ 69.02

Description

General part information

FFP.2S Series

Circular Push Pull Connectors 7P STRT PLUG SOLDER CABLE COLLET 8.2MM
