1445048-5

Connectors, Interconnects

1445048-5

Active

TE Connectivity Raychem Cable Protection

PANEL MT SNGL ROW HSG 5 POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Micro Mate-N-Lok +4

1445048-5

Connectors, Interconnects

1445048-5

Active

TE Connectivity Raychem Cable Protection

PANEL MT SNGL ROW HSG 5 POS

Deep-Dive with AI

DocumentsDatasheet Micro Mate-N-Lok +4

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1445048-5

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3 mm
Pitch [x]	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.51
		10	$ 0.42
		25	$ 0.39
		50	$ 0.37
		100	$ 0.35
		250	$ 0.32
		500	$ 0.31
		1000	$ 0.29
		2500	$ 0.27

Description

General part information

Micro MATE-N-LOK Series

5 Position, Plug, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 3 mm [.118 in] Centerline, 1 Row, 250 VAC, Wire & Cable, Micro MATE-N-LOK

Documents

Technical documentation and resources

Datasheet

Micro Mate-N-Lok

Agency Approvals

ENG_CD_1445048_P5.pdf

Product Drawings

MICRO MATE-N-LOK CONNECTOR SYSTEM

Datasheets & Catalog Pages

Datasheet

Digital Datasheet

3 mm Micro MATE-N-LOK Connector

Product Specifications

Micro MATE-N-LOK Series

...

Part	Voltage Rating	Termination	Applications	Contact Shape	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Style	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Number of Positions	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Shrouding	Contact Finish - Post	Features	Number of Positions	Row Spacing [x]	Row Spacing [x]	Note	Pitch [x]	Pitch [x]	Color	Contact Termination

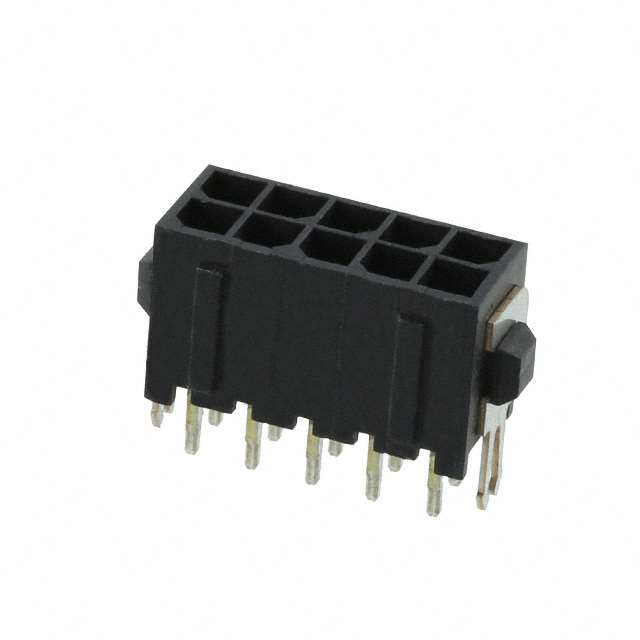

TE Connectivity Raychem Cable Protection 4-794682-0	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	10	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin

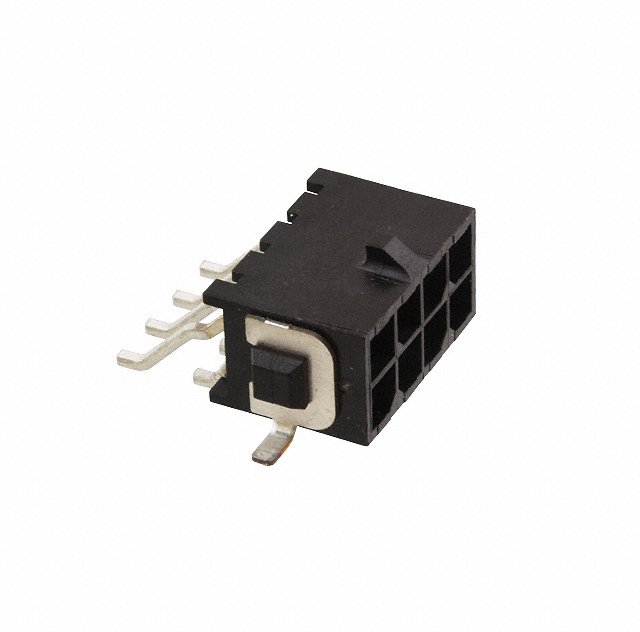

TE Connectivity Raychem Cable Protection 3-794628-8	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0	8	Surface Mount Right Angle	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin	Solder Retention
TE Connectivity Raychem Cable Protection 4-794629-6	250 VDC	Solder	General Purpose	Square	Black	Gold or Gold-Palladium	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0		Surface Mount Right Angle	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin	Solder Retention	16
TE Connectivity Raychem Cable Protection 3-794623-2	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in			Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0	2	Surface Mount Right Angle	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin

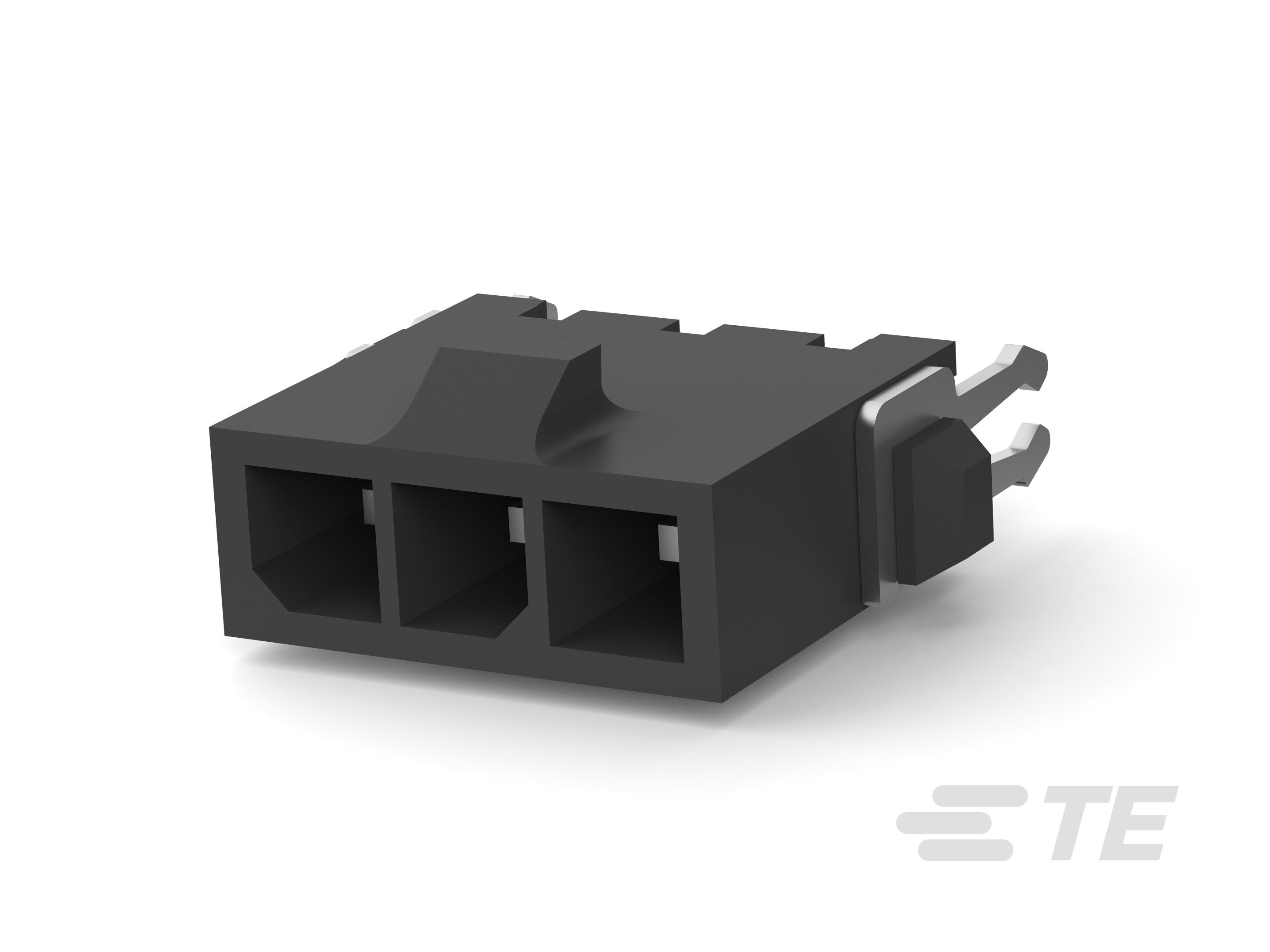

TE Connectivity Raychem Cable Protection 2-1445051-3	250 VDC	Solder	General Purpose	Square	Black				0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0		Through Hole	Locking Ramp	100 çin	2.54 çm	2.54 µm	100 µin	1	Shrouded - 4 Wall	Tin
TE Connectivity Raychem Cable Protection 3-1445085-2	250 VDC	Solder	General Purpose	Square	Black	Gold			0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	12	Through Hole	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	1	Shrouded - 4 Wall	Tin

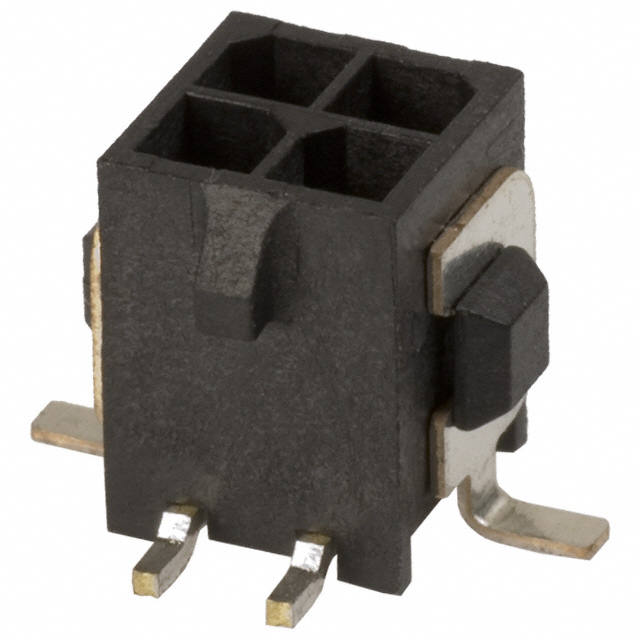

TE Connectivity Raychem Cable Protection 794637-4	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0	4	Surface Mount	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin-Lead	Solder Retention

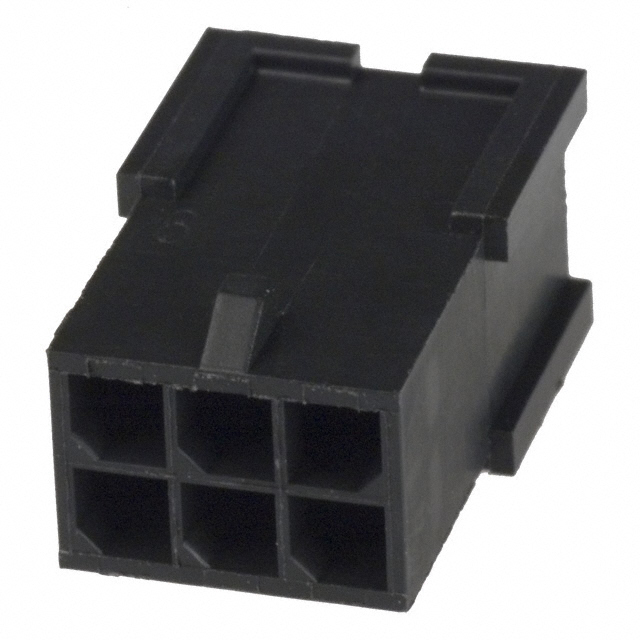

TE Connectivity Raychem Cable Protection 794616-6												Male Pin					-40 °C	105 ░C	Plug	Polyamide (PA66) Nylon 6/6					6	Free Hanging (In-Line)	Locking Ramp					2					0.118 in	3 mm	Contacts Not Included	3 mm	0.118 in	Black	Crimp

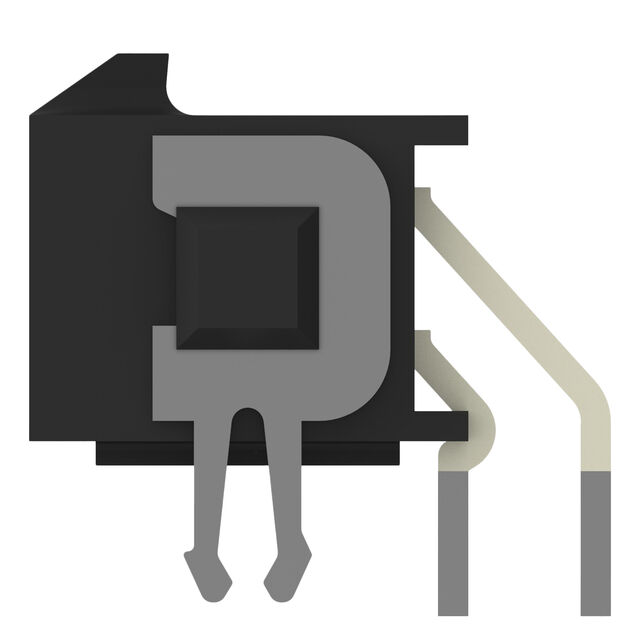

TE Connectivity Raychem Cable Protection 4-794678-6	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0		Through Hole Right Angle	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin		16

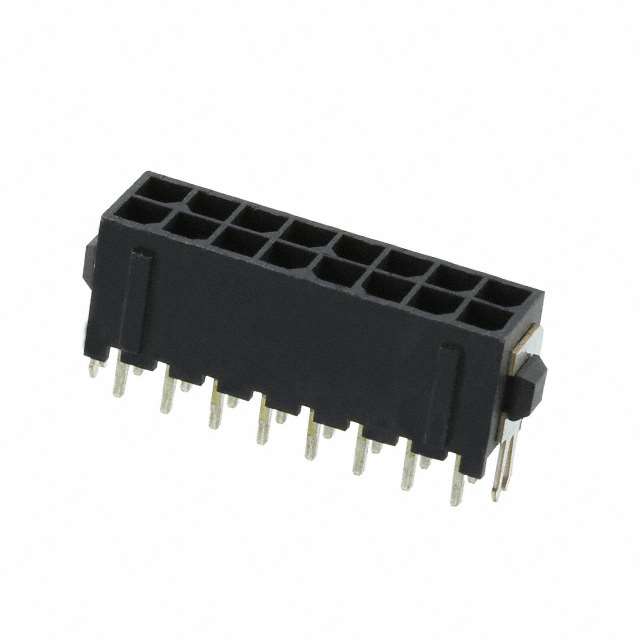

TE Connectivity Raychem Cable Protection 4-794681-6	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0		Through Hole	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin		16
