Specification	CAHC1G04QDCKRG4Q1

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Max) [Max]	1 çA
Grade	Automotive
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	1.5 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.5 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	7.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

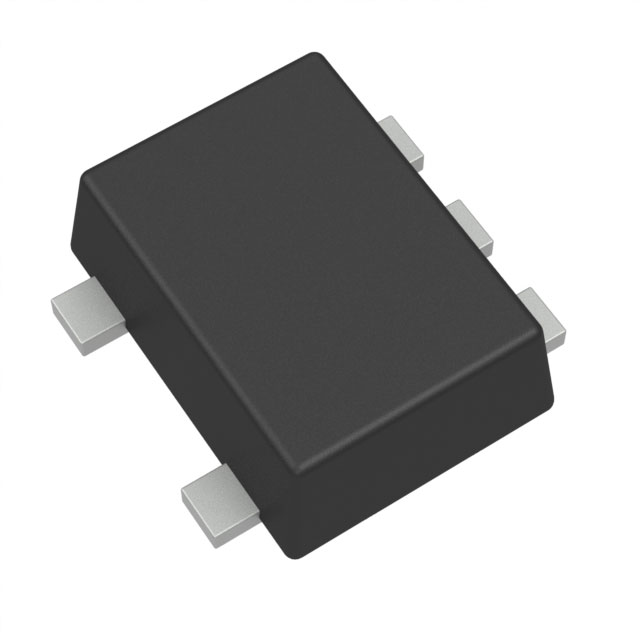

Package / Case	SC-70-5, 5-TSSOP, SOT-353
Qualification	AEC-Q100
Supplier Device Package	SC-70-5
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

SN74AHC1G04-Q1 Series

Automotive single 2-V to 5.5-V inverter

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Logic Type	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Inputs	Package / Case	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Max Propagation Delay @ V, Max CL	Current - Quiescent (Max) [Max]	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Qualification	Grade
Texas Instruments SN74AHC1G04DBVRG4	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	SC-74A SOT-753	1	85 °C	-40 °C	SOT-23-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04DCKTG4	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	1	85 °C	-40 °C	SC-70-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04DBVT	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	SC-74A SOT-753	1	85 °C	-40 °C	SOT-23-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04QDBVRQ1	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	SC-74A SOT-753	1	125 °C	-40 °C	SOT-23-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V	AEC-Q100	Automotive
Texas Instruments SN74AHC1G04DBVTG4	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	SC-74A SOT-753	1	85 °C	-40 °C	SOT-23-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04DRLRG4	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	SOT-553	1	85 °C	-40 °C	SOT-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04QDCKRQ1	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	1	125 °C	-40 °C	SC-70-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V	AEC-Q100	Automotive
Texas Instruments SN74AHC1G04DCKR	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	1	85 °C	-40 °C	SC-70-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04DCK3	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	1	125 °C	-40 °C	SC-70-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V
Texas Instruments SN74AHC1G04DRLR	5.5 V	2 V	Inverter	0.5 V	1.65 V	1	SOT-553	1	85 °C	-40 °C	SOT-5	7.5 ns	1 çA	Surface Mount	8 mA	8 mA	3.85 V	1.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.41
		10	$ 0.35
		25	$ 0.33
		100	$ 0.26
		250	$ 0.24
		500	$ 0.21
		1000	$ 0.16
	Digi-Reel®	1	$ 0.41
		10	$ 0.35
		25	$ 0.33
		100	$ 0.26
		250	$ 0.24
		500	$ 0.21
		1000	$ 0.16
	Tape & Reel (TR)	3000	$ 0.17
		6000	$ 0.15
		9000	$ 0.15
		15000	$ 0.14
		21000	$ 0.14
		30000	$ 0.13
		75000	$ 0.12
Texas Instruments	LARGE T&R	1	$ 0.29
		100	$ 0.20
		250	$ 0.15
		1000	$ 0.10

Description

General part information

SN74AHC1G04-Q1 Series

The SN74AHC1G04-Q1 contains one inverter gate. The device performs the Boolean function Y = A.

Documents

Technical documentation and resources

CAHC1G04QDCKRG4Q1

Deep-Dive with AI

CAHC1G04QDCKRG4Q1

Deep-Dive with AI

Technical Specifications

SN74AHC1G04-Q1 Series

Pricing

Description

SN74AHC1G04-Q1 Series

Documents

Logic Guide (Rev. AB)

Semiconductor Packing Material Electrostatic Discharge (ESD) Protection

Design Summary for WCSP Little Logic (Rev. B)

SN74AHC1G04-Q1 Automotive Single Inverter Gate datasheet (Rev. D)

Little Logic Guide 2018 (Rev. G)

Selecting the Right Level Translation Solution (Rev. A)

Understanding and Interpreting Standard-Logic Data Sheets (Rev. C)

Texas Instruments Little Logic Application Report

Advanced High-Speed CMOS (AHC) Logic Family (Rev. C)

TI IBIS File Creation, Validation, and Distribution Processes

Automotive Logic Devices Brochure

Implications of Slow or Floating CMOS Inputs (Rev. E)

How to Select Little Logic (Rev. A)

AHC/AHCT Designer's Guide February 2000 (Rev. D)

LOGIC Pocket Data Book (Rev. B)
