Switches

1-1825139-0

Active

TE Connectivity Raychem Cable Protection

A203SYZQ04

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

Switches

1-1825139-0

Active

TE Connectivity Raychem Cable Protection

A203SYZQ04

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1825139-0

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	6000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

ALCOSWITCH Gemini A Series Series

Part	Actuator Material	Electrical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Illumination	Actuator Length [x]	Features	Switch Function	Current Rating (Amps)	Bushing Thread	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Circuit	Mounting Type	Actuator Length [custom]

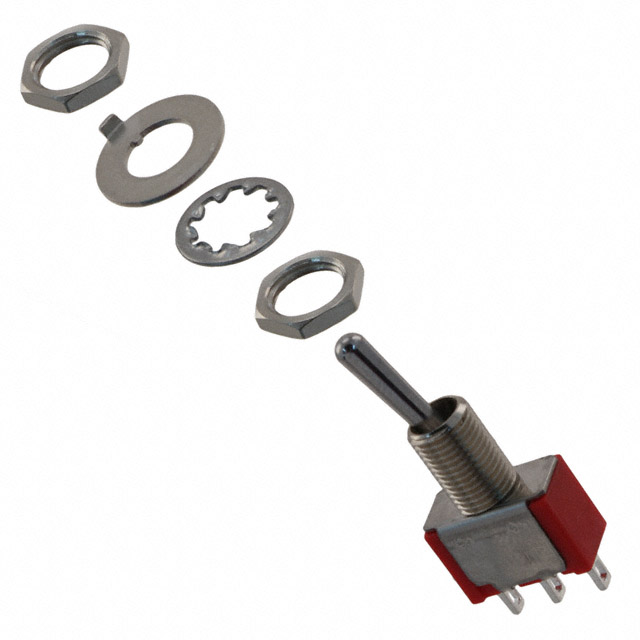

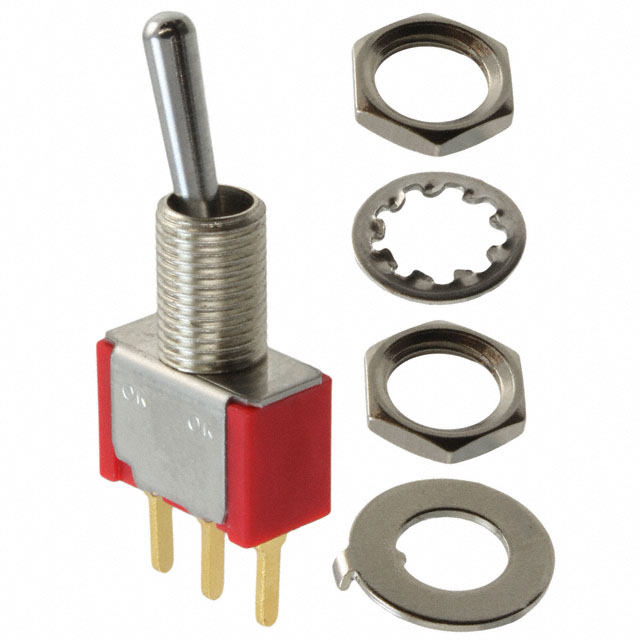

TE Connectivity Raychem Cable Protection 4-1825136-9	Brass Nickel Plated	6000 Cycles	Standard Round	-30 ░C	85 °C	28 V	Non-Illuminated	10.41 mm	Epoxy Sealed Terminals	On-On	5 A	1/4-40	0.25 in	Solder Lug	120 V	SPDT
TE Connectivity Raychem Cable Protection 2-1825136-5	Brass Nickel Plated	6000 Cycles	Standard Round	-30 ░C	85 °C	20 V	Non-Illuminated	10.41 mm	Epoxy Sealed Terminals	On-Off-On	0.4 VA	1/4-40	0.25 in	PC Pin	20 V	SPDT	Panel Mount Right Angle Vertical

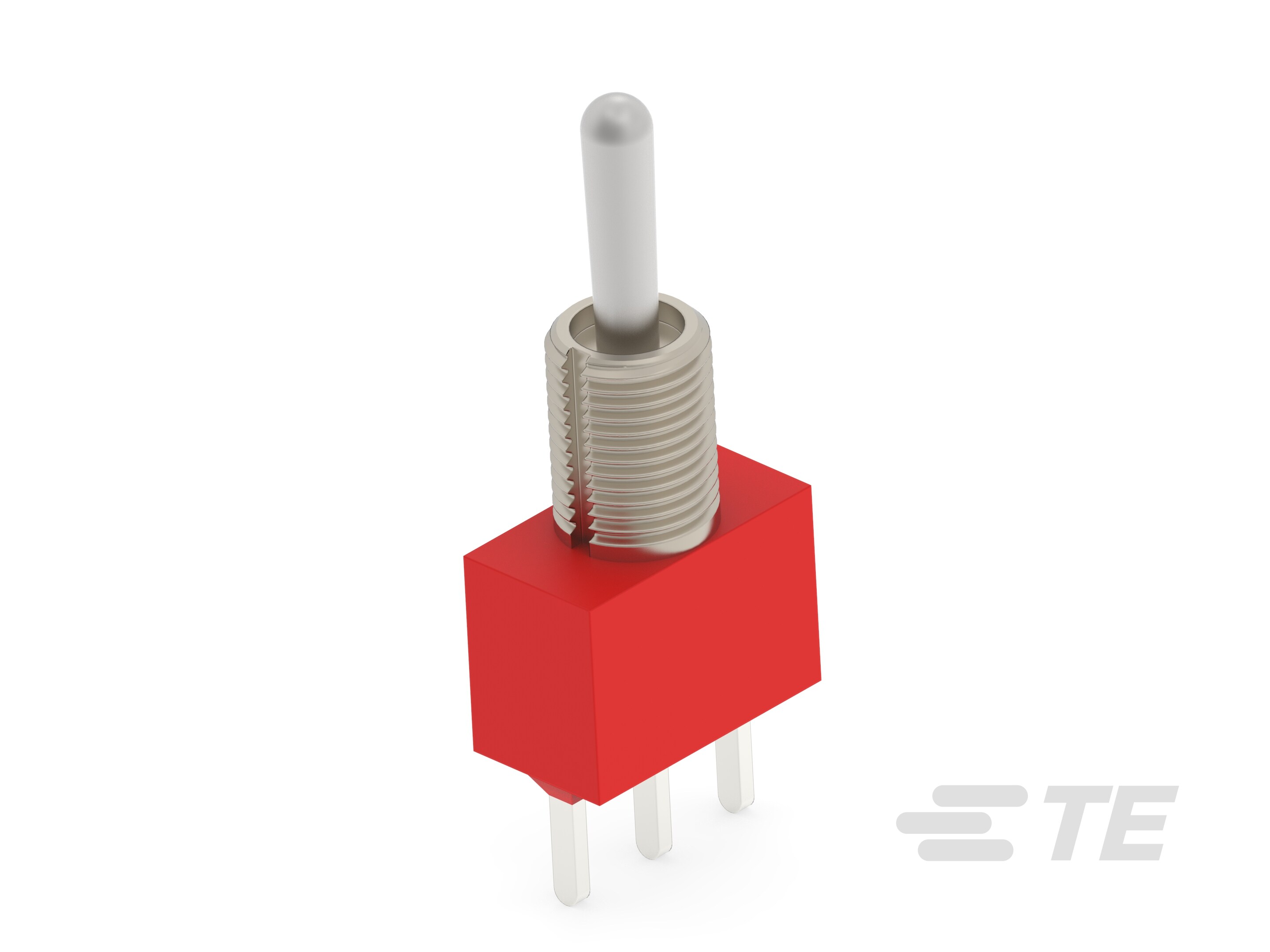

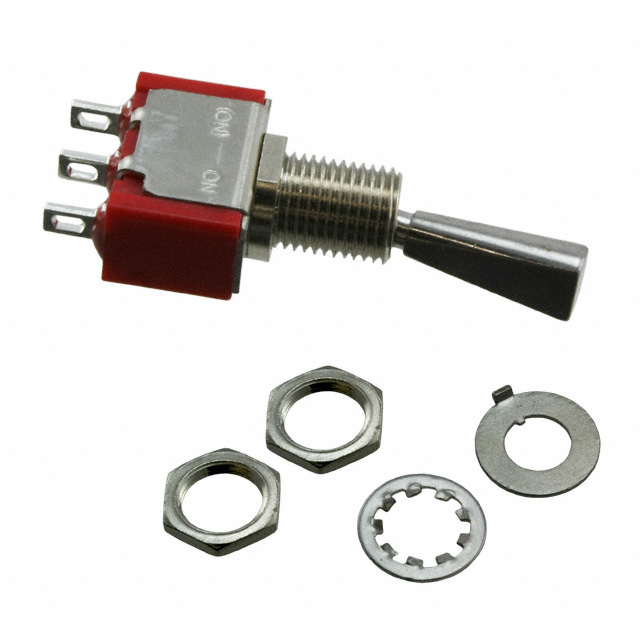

TE Connectivity Raychem Cable Protection 4-1825136-5	Brass Nickel Plated	6000 Cycles	Standard Round	-30 ░C	85 °C	28 V	Non-Illuminated	10.41 mm	Epoxy Sealed Terminals	On-On	5 A	1/4-40	0.25 in	PC Pin	120 V	SPDT
TE Connectivity Raychem Cable Protection 1825136-3	Brass Nickel Plated	6000 Cycles	Locking Lever	-30 ░C	85 °C	28 V	Non-Illuminated	16.28 mm		On-On	5 A	1/4-40	0.25 in	PC Pin	120 V	SPDT	Panel Mount Right Angle
TE Connectivity Raychem Cable Protection 4-1825136-4	Brass Nickel Plated	6000 Cycles	Standard Round	-30 ░C	85 °C	20 V	Non-Illuminated	10.41 mm	Epoxy Sealed Terminals	On-On	0.4 VA	1/4-40	0.25 in	PC Pin	20 V	SPDT
TE Connectivity Raychem Cable Protection 1825136-4		6000 Cycles	Flatted	-30 ░C	85 °C	20 V	Non-Illuminated	12.29 mm		On-On	0.4 VA	1/4-40	0.25 in	PC Pin	20 V	SPDT
TE Connectivity Raychem Cable Protection 1825136-5	Brass Nickel Plated	6000 Cycles	Locking Lever	-30 ░C	85 °C	28 V	Non-Illuminated	16.28 mm		On-On	5 A	1/4-40	0.25 in	PC Pin	120 V	SPDT	Through Hole
TE Connectivity Raychem Cable Protection 4-1825136-8	Brass Nickel Plated	6000 Cycles	Standard Round	-30 ░C	85 °C	20 V	Non-Illuminated	10.41 mm	Epoxy Sealed Terminals	On-On	0.4 VA	1/4-40	0.25 in	Solder Lug	20 V	SPDT
TE Connectivity Raychem Cable Protection 1-1825136-2	Brass Nickel Plated	6000 Cycles	Standard Round	-30 ░C	85 °C	20 V	Non-Illuminated		Epoxy Sealed Terminals	On-On	0.4 VA	Unthreaded		PC Pin	20 V	SPDT	Through Hole Right Angle	6.86 mm
TE Connectivity Raychem Cable Protection 5-1825136-9	Brass Nickel Plated	6000 Cycles	Flatted	-30 ░C	85 °C	28 V	Non-Illuminated	12.29 mm	Epoxy Sealed Terminals	On-Mom	5 A	1/4-40	0.25 in	Solder Lug	120 V	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.84
		10	$ 5.26
		25	$ 4.99
		50	$ 4.78
		100	$ 4.63
		300	$ 4.39
		500	$ 4.05
		1000	$ 3.86

Description

General part information

ALCOSWITCH Gemini A Series Series

5 A Toggle Switch, Double Pole - Double Throw Configuration (Pole-Throw), On Off On, 3 Position, 28 VDC, 125 VAC, ALCOSWITCH Gemini A Series
