MCON 1.2mm Series

Part	Contact Termination	Contact Finish	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]	Connector Type	Insulation Material	Contact Type	Color	Pitch [x]	Pitch [x]	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Number of Rows	Fastening Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions

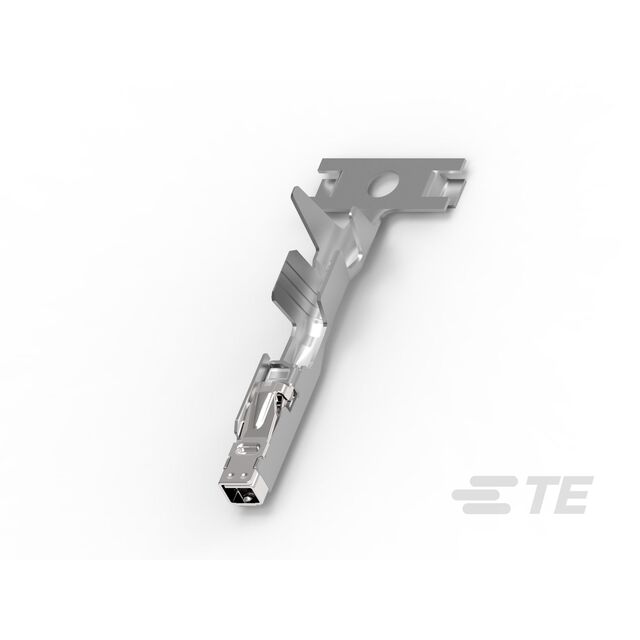

TE Connectivity Raychem Cable Protection 7-1452659-3	Crimp	Tin	Socket	Stamped	17 AWG	15 AWG
TE Connectivity Raychem Cable Protection 1-2203773-3

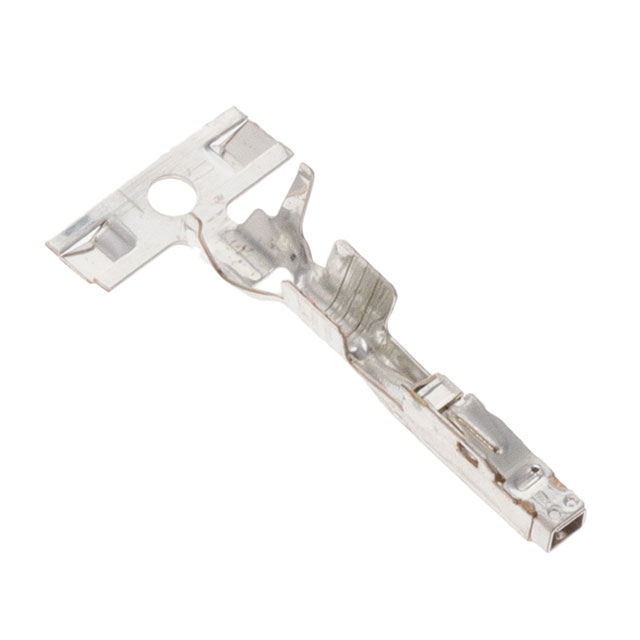

TE Connectivity Raychem Cable Protection 7-1452671-1	Crimp	Tin	Socket	Stamped	18 AWG	16 AWG
TE Connectivity Raychem Cable Protection 4-2098541-1	Crimp						Receptacle	Polyamide (PA66) Nylon 6/6	Female Socket	Brown	4 mm	0.157 in	Contacts Not Included	-40 °C	105 ░C	Free Hanging (In-Line)	IP67 Sealed	1	Latch Lock
TE Connectivity Raychem Cable Protection 1452668-2	Crimp	Gold	Socket		20 AWG	17.5 AWG														31.5 µin	0.8 µm

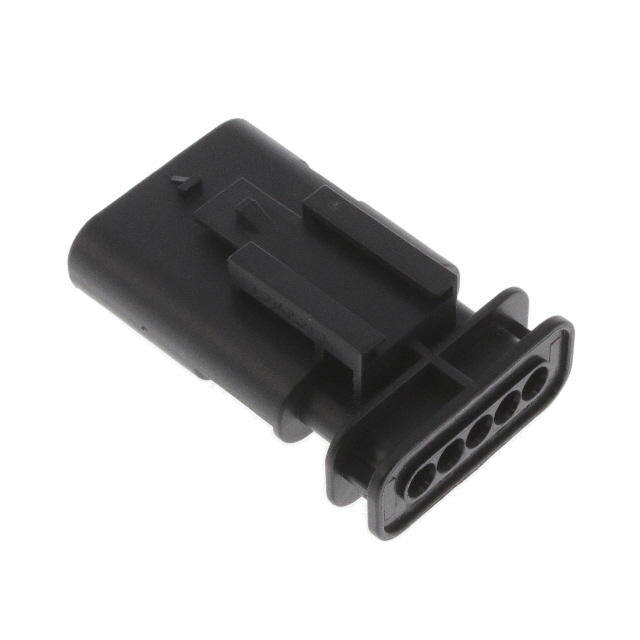

TE Connectivity Raychem Cable Protection 1-2141520-1	Crimp						Plug	Polybutylene Terephthalate (PBT) Glass Filled	Tab	Black	4 mm	0.157 in	Contacts Not Included	-40 °C	125 °C	Free Hanging (In-Line)	Sealed	1	Locking Ramp

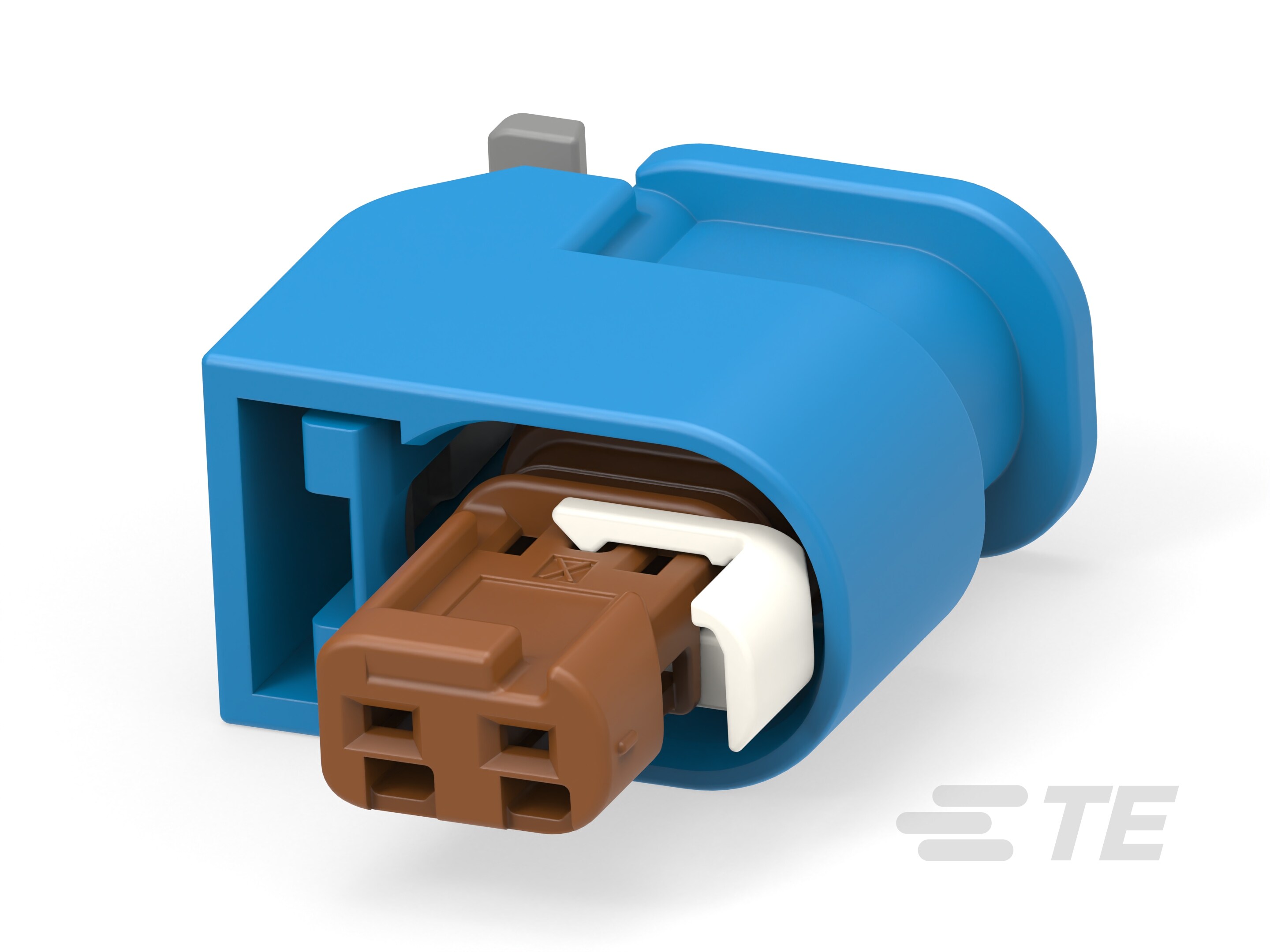

TE Connectivity Raychem Cable Protection 2138873-4

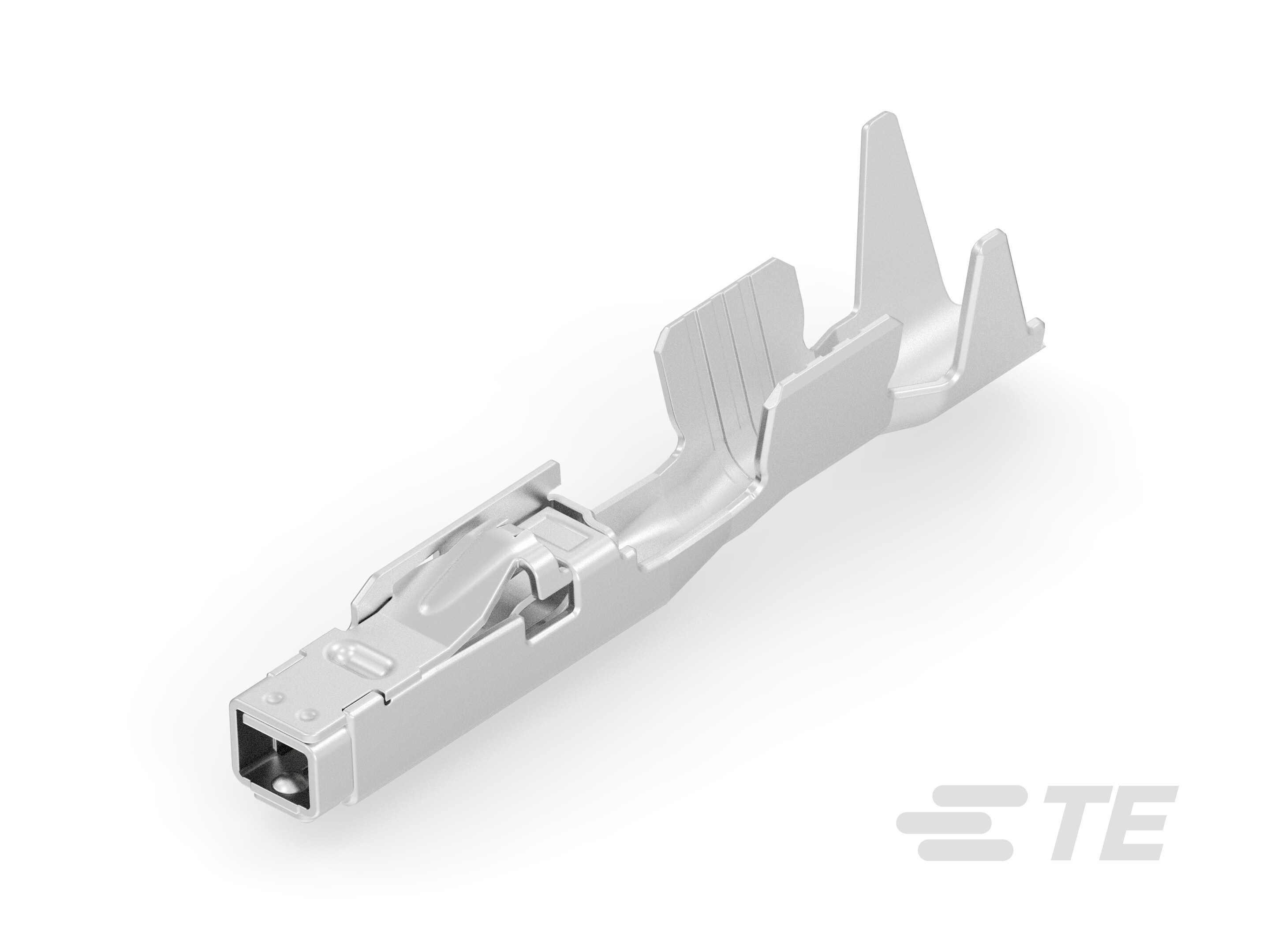

TE Connectivity Raychem Cable Protection 7-1452659-2

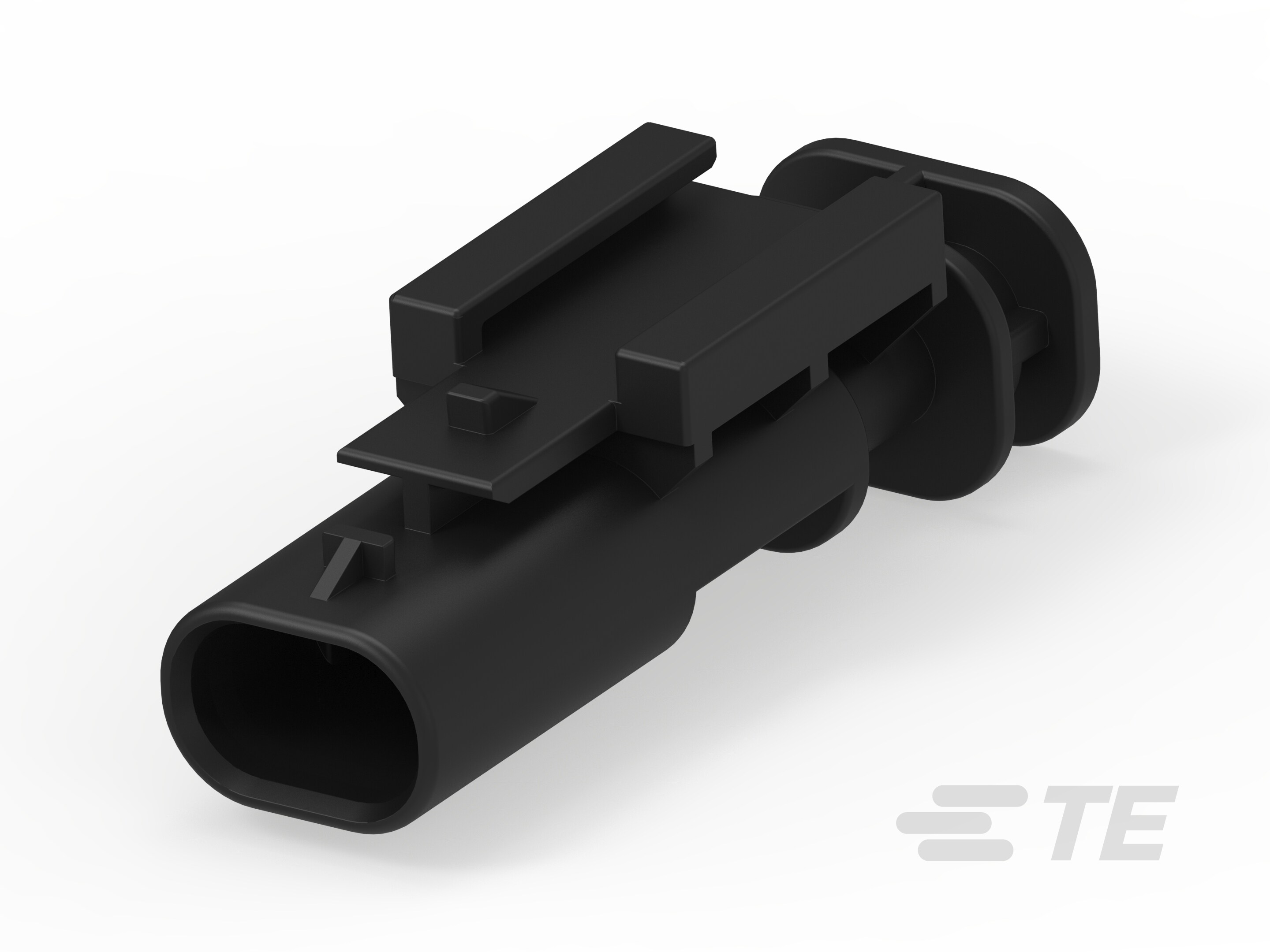

TE Connectivity Raychem Cable Protection 1-2236952-5	Crimp						Plug	Polybutylene Terephthalate (PBT) Glass Filled	Tab	Black	4 mm	0.157 in				Free Hanging (In-Line)	Terminal Position Lock (TPA)	1	Locking Ramp			2
TE Connectivity Raychem Cable Protection 7-1452671-2	Crimp	Gold	Socket	Stamped	18 AWG	16 AWG														31.5 µin	0.8 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle Terminal, 23 – 22 AWG, .25 – .35 mm² Wire, 1.2 mm [.047 in] Tab Width, Gold (Au), .6 mm [.024 in] Tab Thickness, Unsealed, MCON 1.2mm

Technical documentation and resources
