154509-4

Active

TE Connectivity Raychem Cable Protection

250 FASTON HSG.,REC.,1 POS,NATRUAL

Deep-Dive with AI

Documents.250 FASTON RECEPTACLE HOUSING Datasheet +3

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	154509-4

Color	Natural
For Use With/Related Products	0.25 in
For Use With/Related Products	Quick Connects
For Use With/Related Products	6.35 mm
Gender	Female, Receptacle
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Style	Housing
Terminal Size	6.35 mm
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

FASTON 250 Series

Terminals REC .250 SER FASTON

...

Part	Contact Finish	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Mounting Type	Termination	Terminal Type	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter	Tab Length	Features

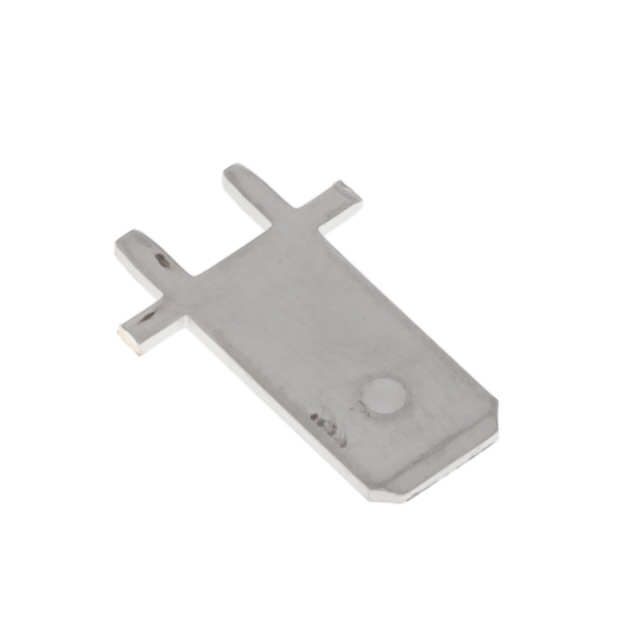

TE Connectivity Raychem Cable Protection 1217154-1	Tin	Brass	Non-Insulated	18.8 mm	0.74 in	7.92 mm	0.312 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm

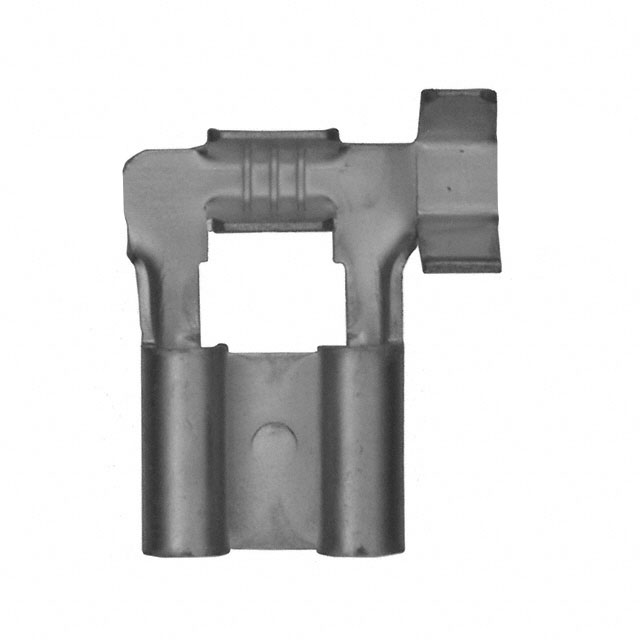

TE Connectivity Raychem Cable Protection 62813-2	Tin	Brass	Non-Insulated					Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.06 in	0.1 in	2.54 mm	1.52 mm
TE Connectivity Raychem Cable Protection 62057-5	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 63755-1	Tin	Brass	Non-Insulated	15.8 mm	0.622 in	11.48 mm	0.452 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm

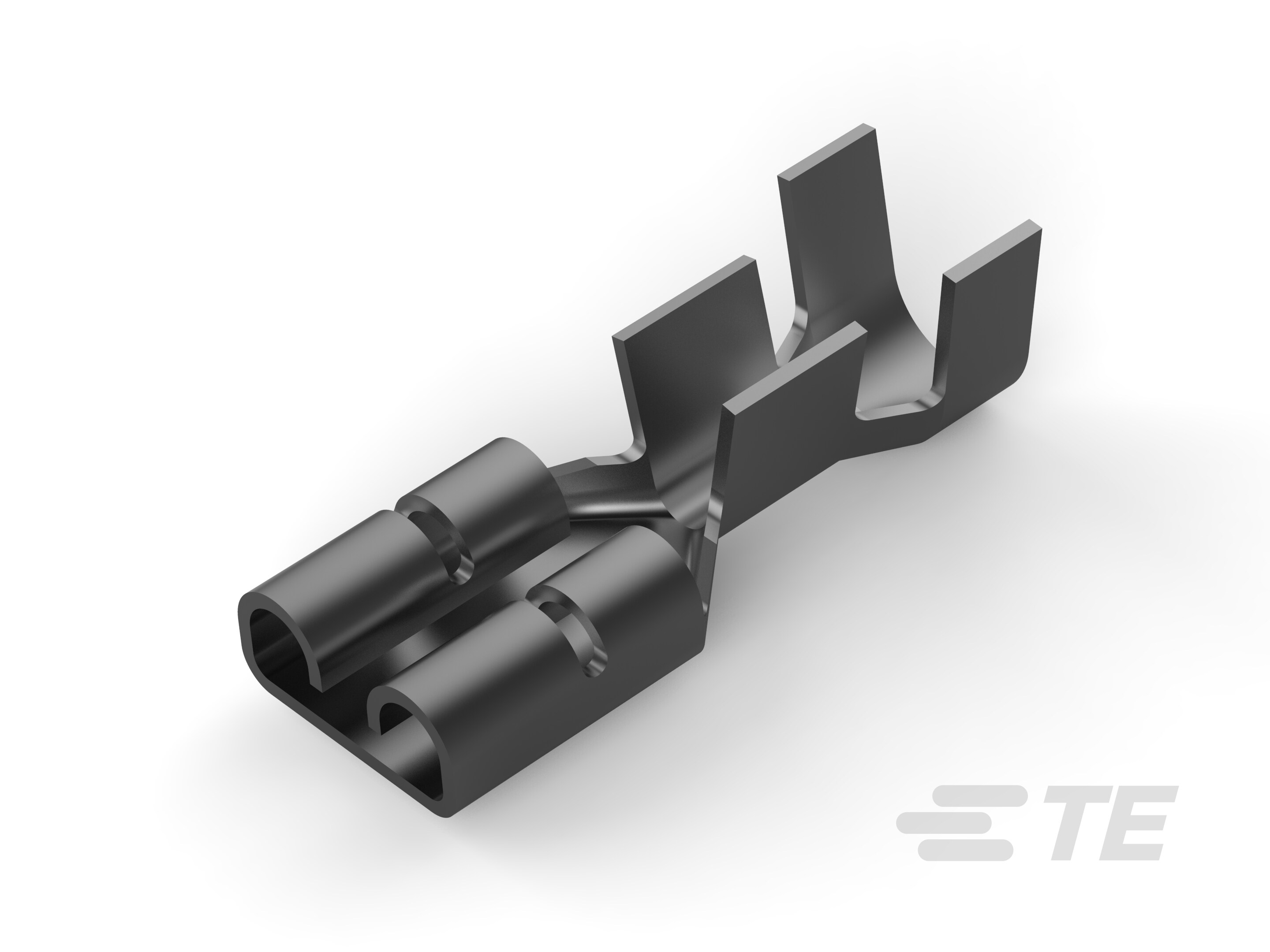

TE Connectivity Raychem Cable Protection 63365-2	Tin	Brass	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	14 AWG	10 AWG	0.15 "	0.2 "		3.81 mm	5.08 mm

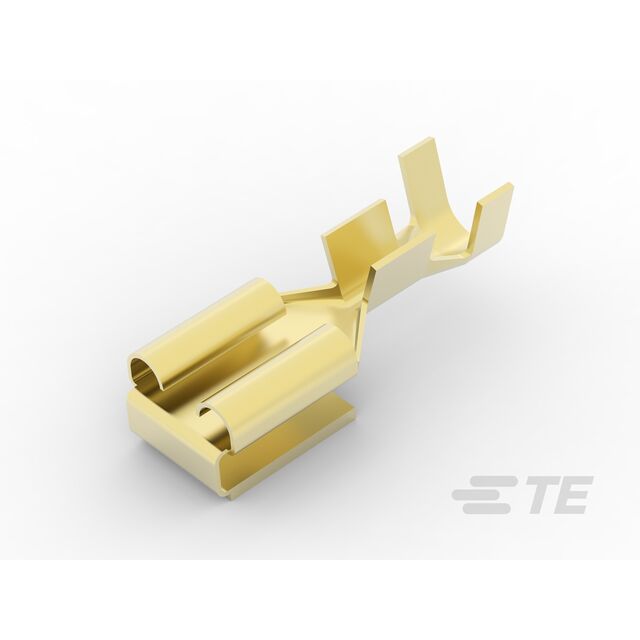

TE Connectivity Raychem Cable Protection 160739-1		Brass	Non-Insulated	20.09 mm	0.791 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	14 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 140794-2								Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female

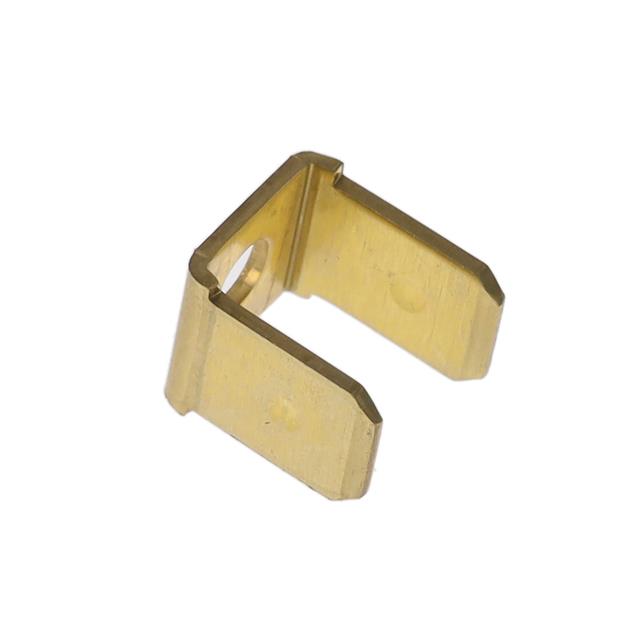

TE Connectivity Raychem Cable Protection 41290		Brass	Non-Insulated					Board Chassis	Rivet Screw Stud	Angled - 90°	6.35 mm	0.25 in	Male	0.032 in	0.81 mm										2 Tabs

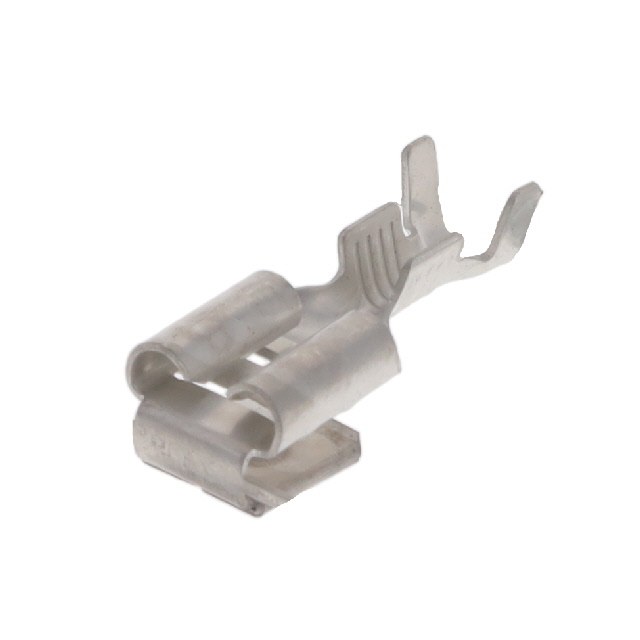

TE Connectivity Raychem Cable Protection 1-280079-2	Tin	Brass	Non-Insulated	19.89 mm	0.783 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	13 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in

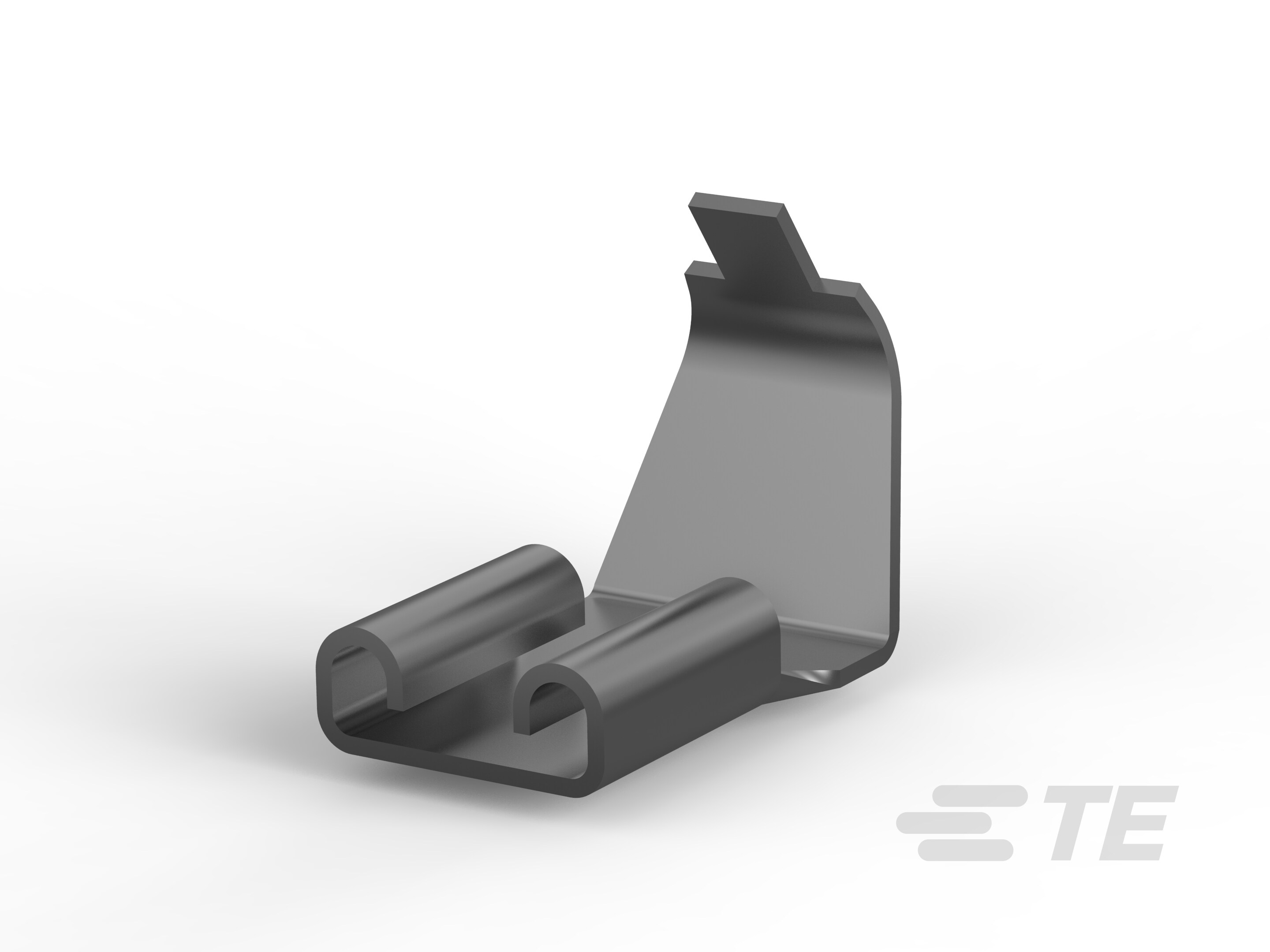

TE Connectivity Raychem Cable Protection 62057-8	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
