Cable Assemblies

1300480227

Active

Molex

ETHERNET CABLES / NETWORKING CABLES M12 TO RJ45 ENET 6M CORDSET CAT5E

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1300480227

Cable Type	Round
Color	Teal
Connector Type	Circular 04 pos Male to RJ45, 8p4c
Length	19.69 ft
Length	6 m
Shielding	Unshielded
Usage	Industrial Environments, Cat5e

micro-change Series

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Female (Straight) to Male RJ-45 (Straight), 24 AWG, PVC Cable, 1.0m (3.28') Length

...

Part	Shielding	Cable Type	Connector Type	Length	Length	Color	2nd Connector Shell Size - Insert	Ingress Protection	1st Connector Type	1st Connector Number of Positions	2nd Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Cable Material	1st Connector Gender	Usage	2nd Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Type	2nd Connector Mounting Type	1st Connector Orientation	Length [x]	Length [x]	2nd Connector Orientation

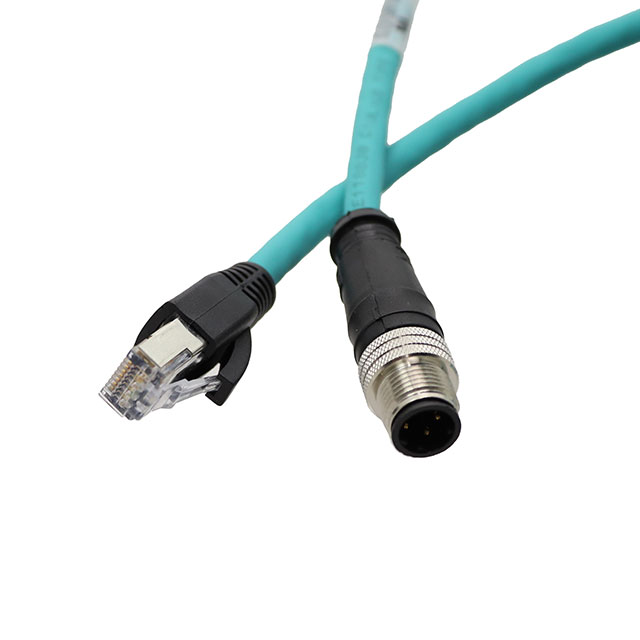

Molex 1300480308	Unshielded	Round	Circular 04 pos Male to RJ45 8p4c	20 m	65.62 ft	Teal
Molex 1201080093	Shielded	Round				Green	M12	IP67 - Dust Tight Waterproof	Plug	4	4	M12	Free Hanging (In-Line)	All	Polyurethane (PUR)	Male Pins	Industrial Environments	All	Standard	Plug	Free Hanging (In-Line)
Molex 1300480095	Unshielded	Round				Teal	M12	IP67 - Dust Tight Waterproof	Receptacle	4	4	M12	Free Hanging (In-Line)	All	Thermoplastic Elastomer (TPE)	Male Pins	Cat5e Industrial Environments	All	Standard	Receptacle	Free Hanging (In-Line)	D	1 m	3.28 ft	D
Molex 1201088212
Molex 1300488120
Molex 1201080486
Molex 1201080049	Shielded	Round		600 mm	1.97 ft	Teal	M12	IP67 - Dust Tight Waterproof	Plug Right Angle	4	4	M12	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Male Pins	Industrial Environments	All	Standard	Plug	Free Hanging (In-Line)
Molex 1201088527	Shielded	Round	Circular 04 pos Male to RJ45 8p8c	90 m	295.28 ft	Teal

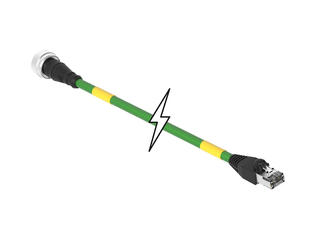

Molex 1201085049	Shielded	Round	Circular 08 pos Male to RJ45 8p8c	10 m	32.81 ft	Green

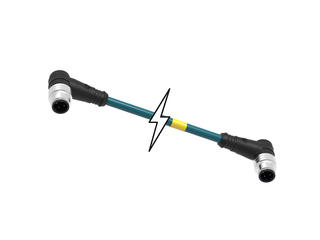

Molex 1300480185	Shielded	Round				Teal	M12	IP67 - Dust Tight Waterproof	Receptacle Right Angle	4	4	M12	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Male Pins	Industrial Environments	All	Standard	Receptacle Right Angle	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.80
		12	$ 63.64
		100	$ 54.61

Description

General part information

micro-change Series

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Female (Straight) to Male RJ-45 (Straight), 24 AWG, PVC Cable, 1.0m (3.28') Length

Documents

Technical documentation and resources

Datasheet

Document
