Connectors, Interconnects

160684-4

Active

TE Connectivity Raychem Cable Protection

FF 110 REC 0.5-1.0MM2 TPBR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

Connectors, Interconnects

160684-4

Active

TE Connectivity Raychem Cable Protection

FF 110 REC 0.5-1.0MM2 TPBR

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	160684-4

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	0.118 in
Insulation Diameter [Max]	3 mm
Insulation Diameter [Min]	2 mm
Insulation Diameter [Min]	0.079 in
Length - Overall [x]	0.551 "
Length - Overall [x]	14 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	0.248 in
Tab Length	6.3 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17 AWG

FASTIN-FASTON 110 Series

Terminals 250 INTER LOCK 2P P

Part	Color	Stacking Direction	Number of Positions	Terminal Type	Mounting Type	Material	Gender	Style	Termination	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Contact Finish	Insulation	Tab Length	Tab Length	Tab Width	Tab Width	Length - Overall [x]	Length - Overall [x]	Contact Material	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Terminal Size	Terminal Size	Note	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Type	Contact Termination	Pin or Socket

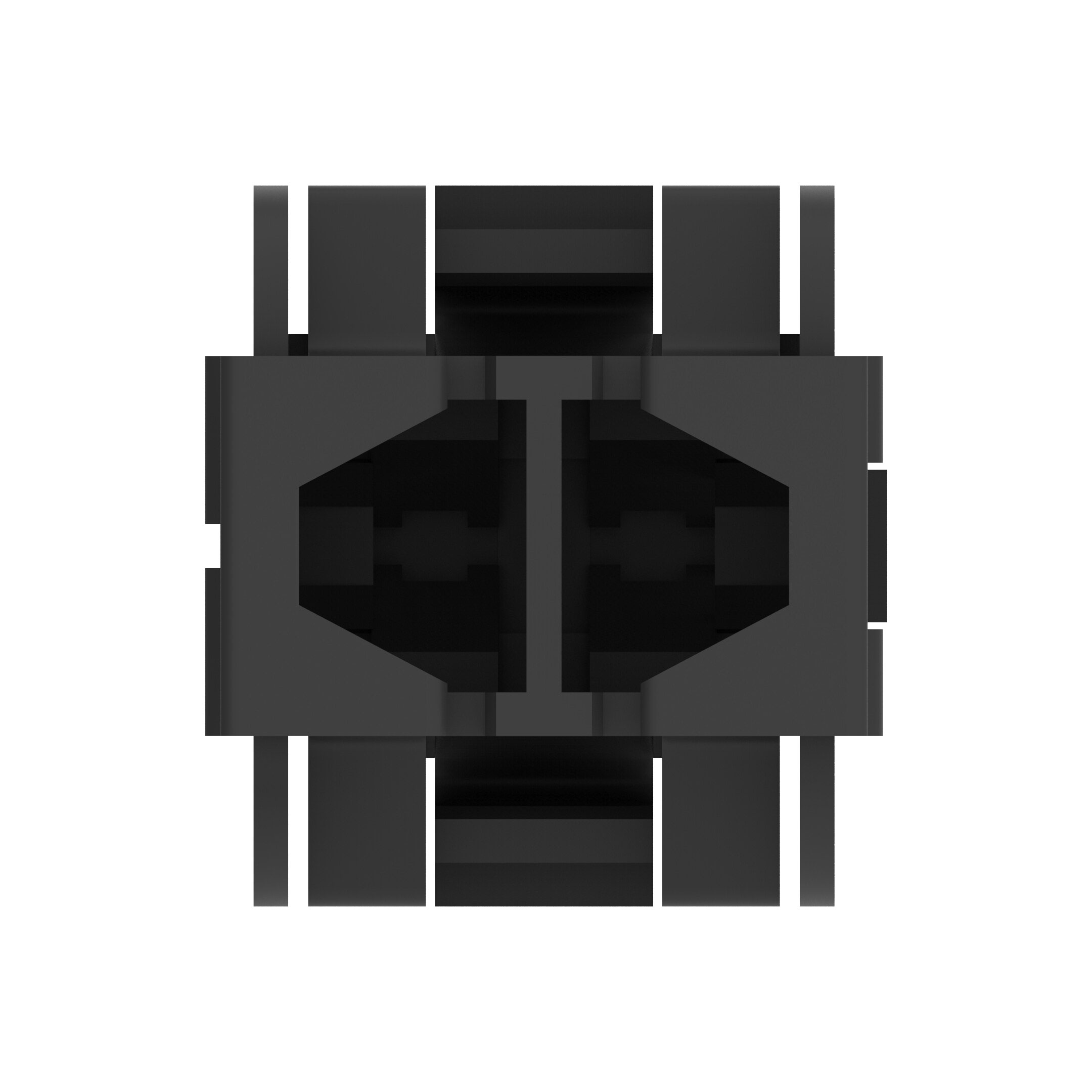

TE Connectivity Raychem Cable Protection 928193-1	Black	Side to Side	2	Disconnect Quick Connect	Free Hanging (In-Line)	Polyester	Female Receptacle	Housing
TE Connectivity Raychem Cable Protection 150571-2				Standard	Free Hanging (In-Line)		Female		Crimp	0.08 "	2.03 mm	0.05 "	1.27 mm	Tin	Non-Insulated	6.35 mm	0.25 in	2.79 mm	0.11 "	15.88 mm	0.625 in	Brass	0.032 in	0.81 mm	20 AWG	24 AWG
TE Connectivity Raychem Cable Protection 626063-1	Natural		1	Disconnect Quick Connect	Free Hanging (In-Line)	Polyamide (PA) Nylon	Male Tab	Housing																			Quick Connects	0.11 in	2.79 mm	0.11 in	2.79 mm	Contacts Not Included

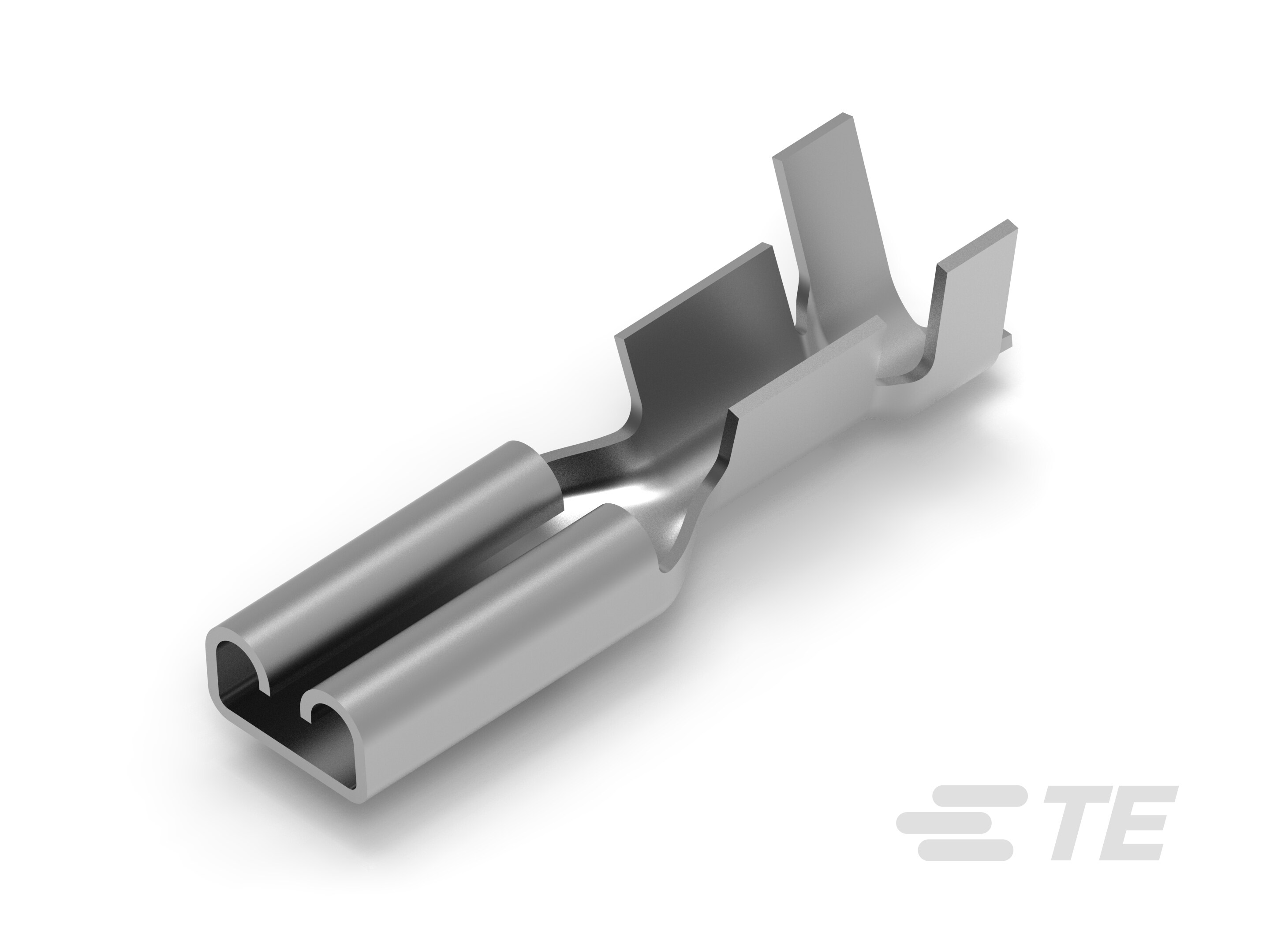

TE Connectivity Raychem Cable Protection 737255-5				Standard	Free Hanging (In-Line)		Female		Crimp					Tin	Non-Insulated	6.3 mm	0.248 in	2.79 mm	0.11 "	14 mm	0.551 "	Brass	0.032 in	0.81 mm	17 AWG	20 AWG							3.3 mm	0.13 in

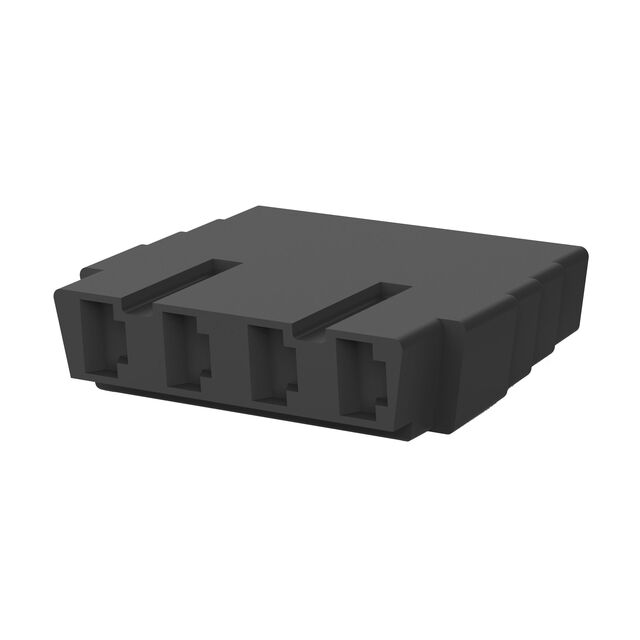

TE Connectivity Raychem Cable Protection 926728-1	Black	Side to Side	4	Disconnect Quick Connect	Free Hanging (In-Line)	Polyamide (PA) Nylon	Female Receptacle	Housing																			Quick Connects	0.11 in	2.79 mm	0.11 in	2.79 mm	Contacts Not Included

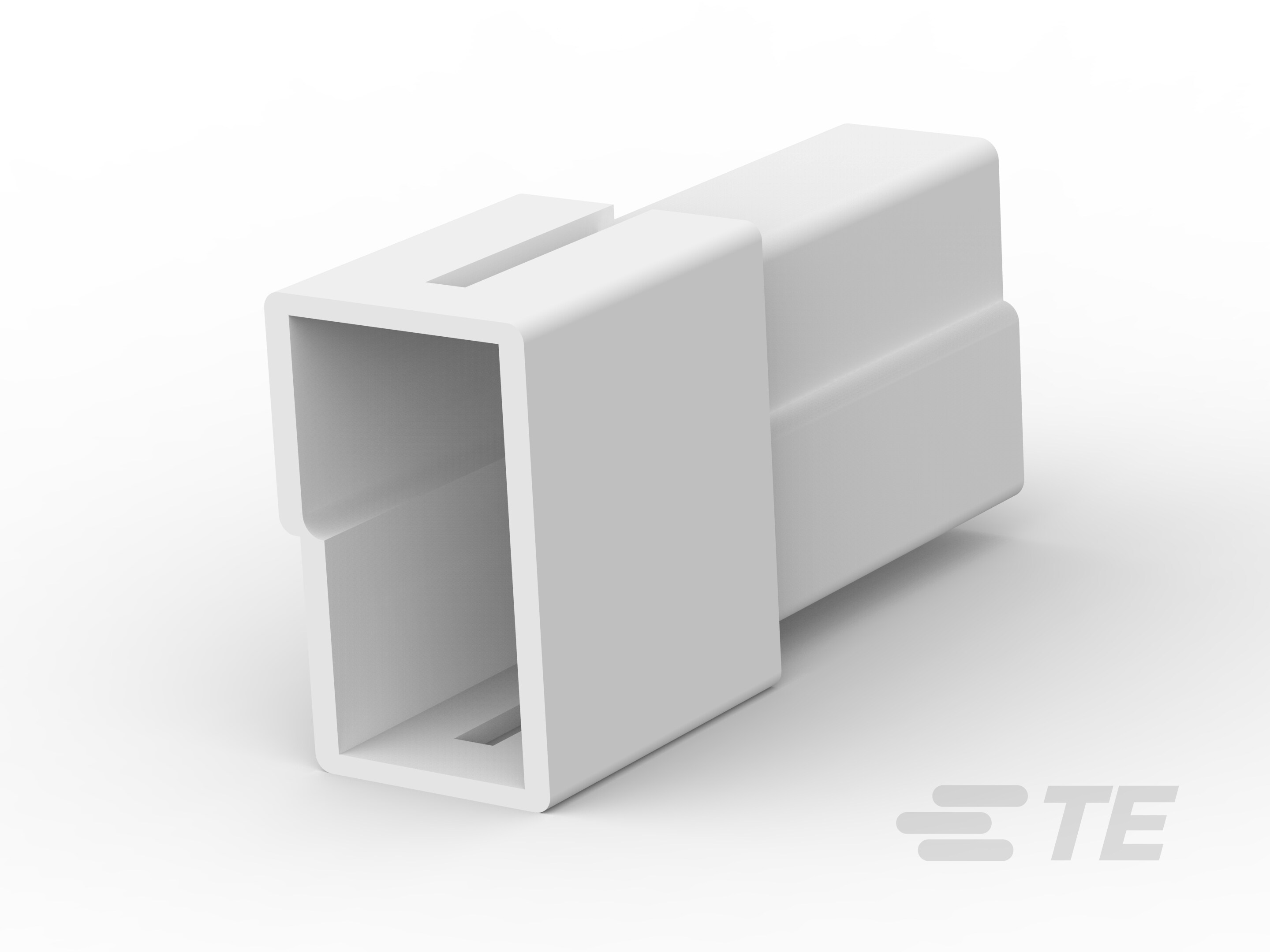

TE Connectivity Raychem Cable Protection 1-626065-2	Natural	Perpendicular	2	Disconnect Quick Connect	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Male Tab	Housing																			Quick Connects	0.11 in	2.79 mm	0.11 in	2.79 mm	Contacts Not Included
TE Connectivity Raychem Cable Protection 626057-1	Black	Top to Bottom and Side to Side	4	Disconnect Quick Connect	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Male Tab	Housing																			Quick Connects	0.11 in	2.79 mm	0.11 in	2.79 mm	Contacts Not Included

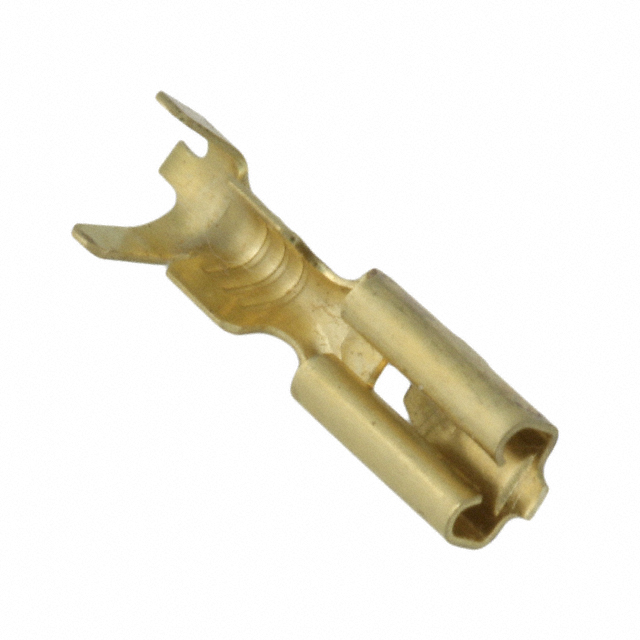

TE Connectivity Raychem Cable Protection 62572-1				Standard	Free Hanging (In-Line)		Female		Crimp						Non-Insulated	6.35 mm	0.25 in	2.79 mm	0.11 "	13.97 mm	0.55 "	Brass	0.032 in	0.81 mm	16 AWG	20 AWG									0.08 in	3.05 mm	0.12 in	2.03 mm
TE Connectivity Raychem Cable Protection 963815-1														Tin																									Power	Crimp	Tab
TE Connectivity Raychem Cable Protection 160922-2				Standard	Free Hanging (In-Line)		Female		Crimp	0.063 in	1.6 mm	0.039 in	1 mm	Tin	Non-Insulated	6.3 mm	0.248 in	2.79 mm	0.11 "	14 mm	0.551 "	Brass	0.032 in	0.81 mm	20 AWG	24 AWG
