I-PEX is a Japanese precision connector manufacturer specializing in micro-coaxial and high-frequency connectors, with their CABLINE series holding 60% global market share for notebook display connections.
Parts that are not part of a series
Company background and product focus
I-PEX is a Japanese connector company that designs and manufactures very small, high-quality connectors for high-frequency and high data-rate solutions. With origins dating back to 1963 as a precision mold manufacturer, I-PEX has evolved into an integrated production connector manufacturer serving global electronics markets.
I-PEX's product portfolio serves diverse industries including:
Headquartered in Kyoto, Japan, I-PEX operates three R&D centers across China, Japan, and the United States, with 18 production sites throughout Asia. Their deep engineering expertise in precision connectors enables compact, reliable connections in the world's most demanding electronic applications.
© 2026 Zenode. All rights reserved.
Product families from I-PEX
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from I-PEX that are not part of a series
| Part Information | Pricing (lowest) | Contact Termination | Housing Color | Impedance | Shield Termination | Number of Ports | Fastening Type | Mounting Type | Frequency - Max | Connector Type | Center Contact Material | Connector Style | Center Contact Plating | Mating Cycles | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating | Dielectric Material | Body Finish | Current Rating | Mated Stacking Height | Contact Finish Thickness - Mating | Number of Rows | Contact Type | Contact Finish - Post | Number of Positions Loaded | Pitch - Mating | Style | Material Flammability Rating | Insulation Height | Termination | Features | Insulation Color | Number of Positions | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Shape | Insulation Material | Contact Material | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

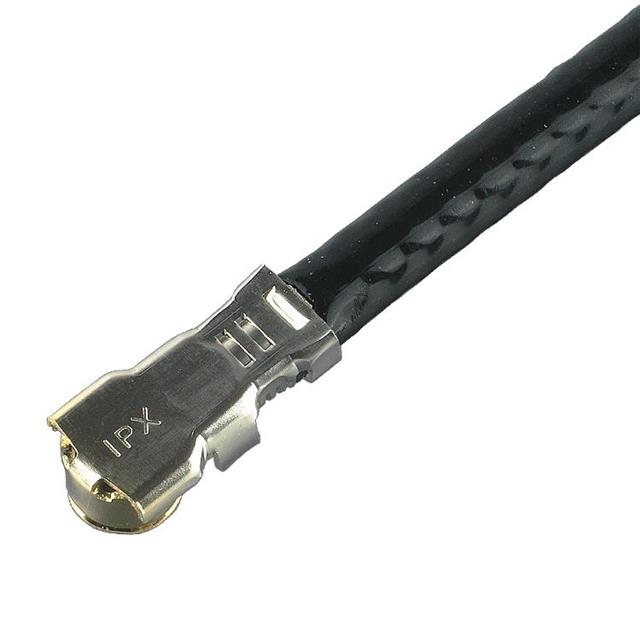

 I-PEX MHF I RECEPTACLE | Sign in to see pricing | Solder | White | 50 Ohm | Solder | 1 | Snap-On | Surface Mount | 9 GHz | Male Pin, Receptacle | Brass | I-PEX MHFI, U.FL (UMCC) | Gold | 30 cycles | 90 °C | -40 °C | 60 V | Liquid Crystal Polymer (LCP) | Gold | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

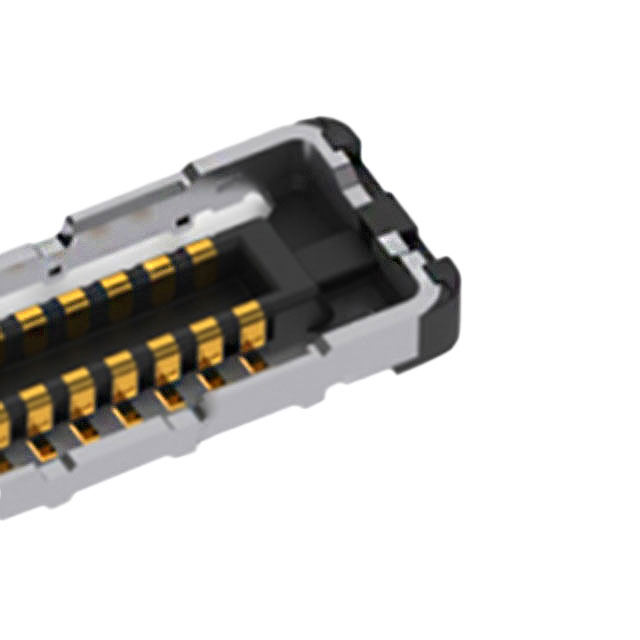

 I-PEX CABLINE-SS RECEPTACLE 10P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in | Solder | Pick and Place, Solder Retention | Beige | 10 | Gold | — | — | — | — | — |
I-PEX CABLINE-SS RECEPTACLE 14P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in | Solder | Pick and Place, Solder Retention | Beige | 14 | Gold | — | — | — | — | — |

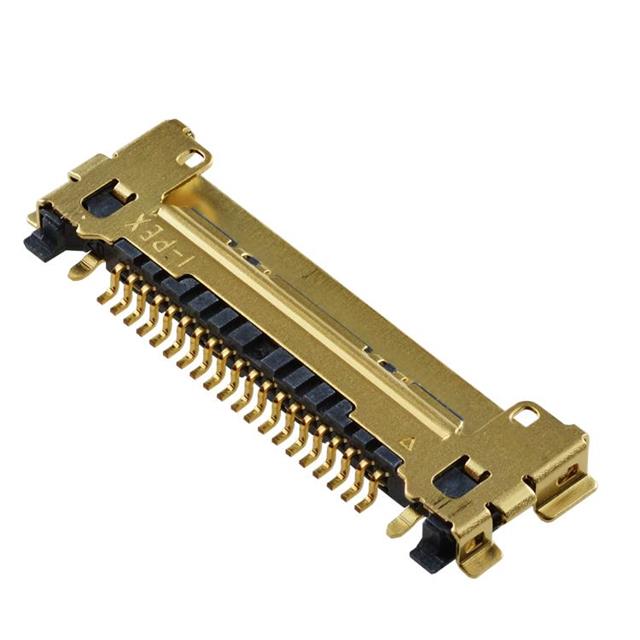

 I-PEX CABLINE-SS RECEPTACLE, 20P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Right Angle, Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in | Solder | Shielded, Solder Retention | Black | 20 | Gold | — | — | — | — | — |
I-PEX CABLINE-SS RECEPTACLE, 30P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Right Angle, Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Female Socket, Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in, 0.063 in | Solder | Pick and Place, Shielded, Solder Retention | Black | 30 | Gold | 1.97 µin | Rectangular | Liquid Crystal Polymer (LCP) | Phosphor Bronze | — |
I-PEX CABLINE-SS RECEPTACLE 32P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in | Solder | Pick and Place, Solder Retention | Beige | 32 | Gold | — | — | — | — | — |
I-PEX CABLINE-SS RECEPTACLE 35P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in | Solder | Pick and Place, Solder Retention | Beige | 35 | Gold | — | — | — | — | — |
I-PEX CABLINE-SS RECEPTACLE, 40P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Right Angle, Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Female Socket, Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in, 0.063 in | Solder | Pick and Place, Shielded, Solder Retention | Black | 40 | Gold | 1.97 µin | Rectangular | Liquid Crystal Polymer (LCP) | Phosphor Bronze | — |
I-PEX CABLINE-SS RECEPTACLE 50P | Sign in to see pricing | — | — | — | — | — | Push-Pull | Surface Mount | — | Receptacle | — | — | — | — | 85 °C | -40 °C | 100 VAC | — | — | 0 A, Varies by Wire Gauge | 1.65 mm | 3.94 µin | 1 | Outer Shroud Contact | Gold | All | 0.016 in | Board, Cable/Wire | UL94 V-0 | 0.051 in | Solder | Pick and Place, Solder Retention | Beige | 50 | Gold | — | — | — | — | — |
 I-PEX MHF I RECE (4PAD) | Sign in to see pricing | Solder | Black, Gold | 50 Ohm | Solder | 1 | Snap-On | Surface Mount | 9 GHz | Male Pin, Receptacle | Brass, Copper Alloy | I-PEX MHFI, U.FL (UMCC) | Gold | — | — | — | — | Liquid Crystal Polymer (LCP) | Gold | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Copper Alloy |
