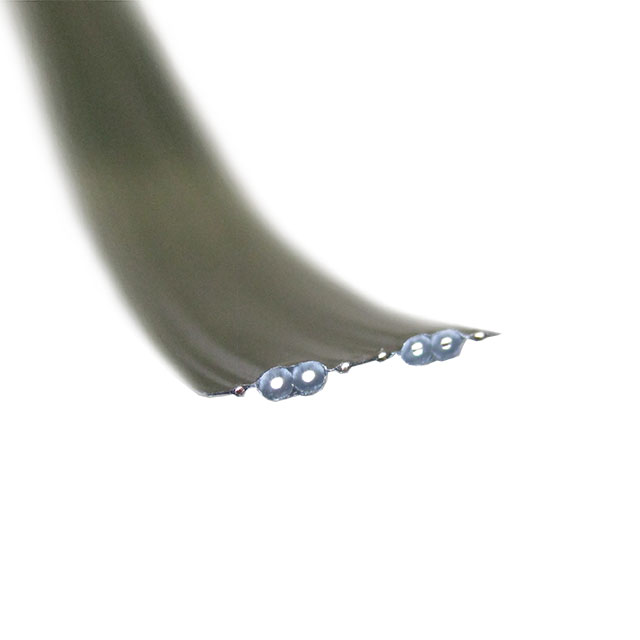

SL8803 Series

Manufacturer: 3M (TC)

Catalog

CBL RIBN 4COND SILVER 0.750'

Part	Length	Length	Length	Length [x]	Length [x]	Length [x]	Voltage	Length	Jacket Color	Ribbon Width [custom]	Ribbon Width	Cable Type	Number of Conductors	Jacket (Insulation) Material	Features	Ratings	Conductor Material	Insulation Resistance	Shielding	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Ribbon Thickness	Ribbon Thickness	Ribbon Width [y]	Ribbon Width [y]
3M (TC) SL8803/04-10DN5-00	15.24 m 152.4 mm 152.4 m 177.7 mm 203.2 mm 228.6 mm 254 mm 304.8 m 304.8 mm	6 " 7 in 8 in 9 in 10 in	0.5 '	0.917 ft 1.17 ft 1.33 ft 10 ft 100 ft	11 "	3.05 m 30.48 m 279.4 mm 355.62 mm 406.4 mm	150 V	0.583 ft 0.667 ft 0.75 ft 0.833 ft 1 ft 50 ft 1000 ft 6000 in	Silver	0.307 "	7.8 mm	Flat Twin Axial	4	Polyolefin (PO)	Down Opposite Reversed Straight	UL E42769	Copper Silver Coated	1 GOhms	Shielded	30 AWG	-20 C	80 C	Solid	0.89 mm	0.035 in
3M (TC) SL8803/08-10DN5-00-500'	152.4 m						150 V	6000 in	Silver			Flat Twin Axial	8	Polyolefin (PO)			Copper Silver Coated	1 GOhms	Shielded	30 AWG	-20 C	80 C	Solid	0.89 mm	0.035 in	15.6 mm	0.614 in
3M (TC) SL8803/08-11DN5-00-500'	152.4 m						150 V	6000 in	Silver			Flat Twin Axial	8	Polyolefin (PO)			Copper Silver Coated	1 GOhms	Shielded	30 AWG	-20 C	80 C	Solid	0.89 mm	0.035 in	15.6 mm	0.614 in
