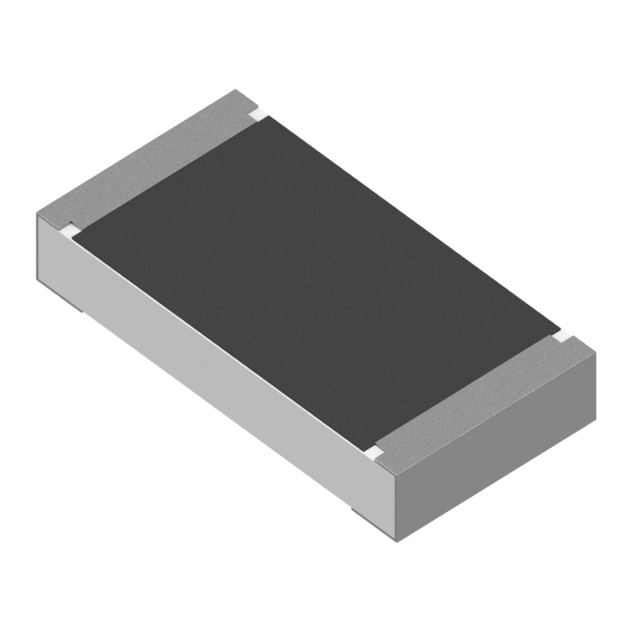

RQ73C2B Series

Manufacturer: TE Connectivity Passive Product

Catalog

RES 576 KOHMS 0.1% 0.4W 1206

...

Part	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations	Ratings	Composition	Package / Case	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Tolerance
TE Connectivity Passive Product RQ73C2B576KBTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	576 kOhms	0.1 %
TE Connectivity Passive Product RQ73C2B36R5BTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	36.5 Ohms	0.1 %
TE Connectivity Passive Product RQ73C2B12K7BTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	12.7 kOhms	0.1 %
TE Connectivity Passive Product RQ73C2B487RBTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	487 Ohms	0.1 %
TE Connectivity Passive Product RQ73C2B316KBTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	316 kOhms	0.1 %
TE Connectivity Passive Product RQ73C2B38K3BTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	38.3 kOhms	0.1 %
TE Connectivity Passive Product RQ73C2B93K1BTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	93.1 kOhms	0.1 %
TE Connectivity Passive Product RQ73C2B63K4BTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	63.4 kOhms	0.1 %
TE Connectivity Passive Product RQ73C2B19R1BTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	19.1 Ohms	0.1 %
TE Connectivity Passive Product RQ73C2B154KBTD	1206	1.6 mm	3.1 mm	0.063 in	0.122 "	2	AEC-Q200	Thin Film	1206 (3216 Metric)	10 ppm/°C	0.03 in	0.75 mm	Anti-Sulfur Automotive AEC-Q200	0.4 W	0.4 W	155 °C	-55 °C	154 kOhms	0.1 %
