SL8802 Series

Manufacturer: 3M (TC)

Catalog

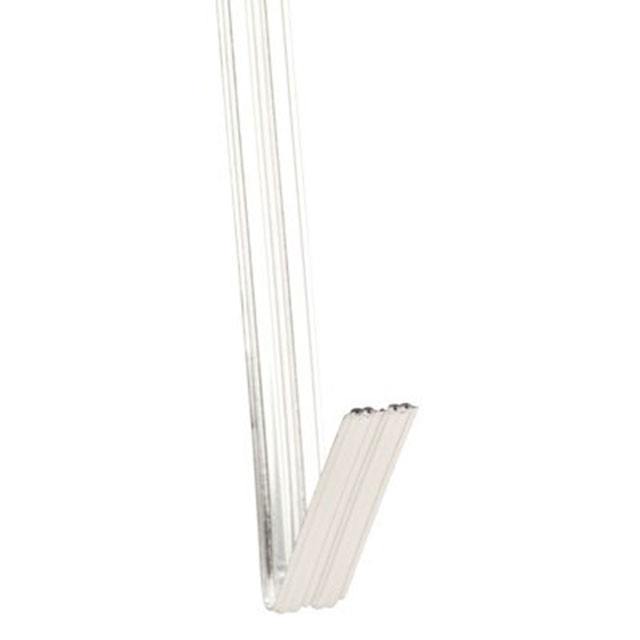

70010029968 SL8802/04-11DN5-00=TACBL,30AWG,2PR,1SLDGND,SN,1000FT

Part	Conductor Strand	Shielding	Length	Length	Number of Conductors	Conductor Material	Ribbon Width	Ribbon Width	Insulation Resistance	Voltage	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket Color	Pitch [x]	Pitch [x]	Cable Type	Ratings	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Length	Features	Length	Length [x]
3M (TC) SL8802/04-11DN5-00	Solid	Shielded	7.62 m 15.24 m	25 ft 50 ft	4	Copper Tinned	5.45 mm	0.215 in	1 GOhms	150 V	3.05 m	10 ft	Polyolefin (PO)	Silver	2.37 mm	0.093 in	Flat Twin Axial	UL E42769	0.89 mm	0.035 in	30 AWG

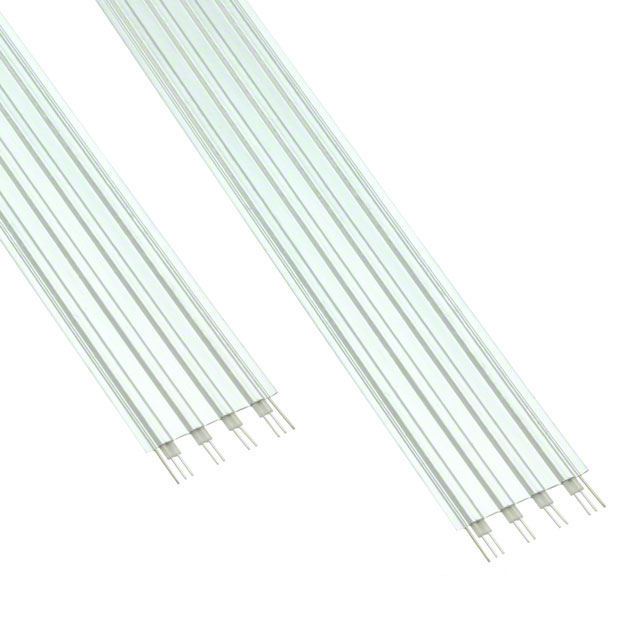

3M (TC) SL8802/08-20DN5-00	Solid	Shielded	15.24 m 152.4 mm 177.7 mm 203.2 mm 228.6 mm 254 mm 304.8 mm	0.583 ft 0.667 ft 0.75 ft 0.833 ft 1 ft 50 ft	8	Copper Silver Coated	15.93 mm	0.627 in	1 GOhms	150 V	30.48 m 279.4 mm 355.62 mm 406.4 mm	0.917 ft 1.17 ft 1.33 ft 100 ft	Polyolefin (PO)	Silver	2.37 mm	0.093 in	Flat Twin Axial	UL E42769	0.89 mm	0.035 in	30 AWG	6 " 7 in 8 in 9 in 10 in	Down Opposite Reversed Straight	0.5 '	11 "
