ALCOSWITCH AV22 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

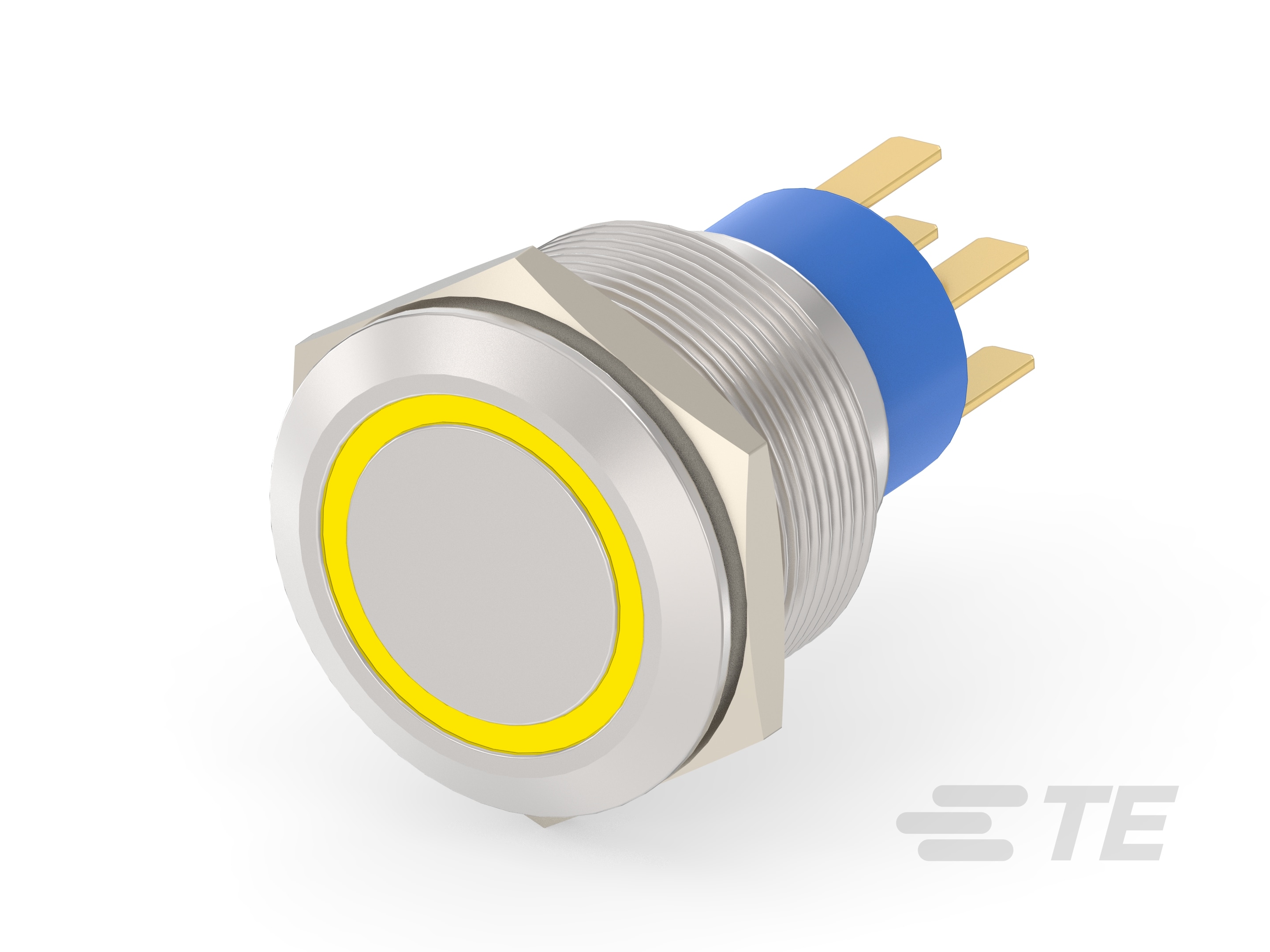

AV22 DPM 0.4VA MOVE RING LED YELLOW 24V

...

Part	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Voltage Rating - DC	Circuit	Ingress Protection	Voltage Rating - AC	Actuator Marking	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Termination Style	Illumination Type, Color	Current Rating (Amps)	Actuator Type	Switch Function	Mechanical Life	Electrical Life
TE Connectivity AMP Connectors AV2220E524R04	Silver	55 °C	-20 ░C	24 V	20 V	DPDT	IP67 - Dust Tight Waterproof	20 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	LED Yellow	0.4 VA	Button Flush Round	On-Mom
TE Connectivity AMP Connectors AV2211E324Q04	Silver	55 °C	-20 ░C	24 V		SPDT	IP67 - Dust Tight Waterproof	250 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	LED Red	3 A	Button Flush Round	On-On	500000 Cycles	50000 Cycles
TE Connectivity AMP Connectors AV2210000Q04	Silver	55 °C	-20 ░C			SPDT	IP67 - Dust Tight Waterproof	250 V	No Marking	Panel Mount Front	Anti-Vandal	22.2 mm	Solder Lug		3 A	Button Flush Round	On-Mom
TE Connectivity AMP Connectors AV2210E712R04	Silver	55 °C	-20 ░C	12 VDC	20 V	SPDT	IP67 - Dust Tight Waterproof	20 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	Blue LED	0.4 VA	Button Flush Round	On-Mom
TE Connectivity AMP Connectors AV2210E624R04	Silver	55 °C	-20 ░C	24 V	20 V	SPDT	IP67 - Dust Tight Waterproof	20 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	Green LED	0.4 VA	Button Flush Round	On-Mom
TE Connectivity AMP Connectors AV2210EB24Q04	Silver	55 °C	-20 ░C	24 V		SPDT	IP67 - Dust Tight Waterproof	250 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	Blue LED Red	3 A	Button Flush Round	On-Mom

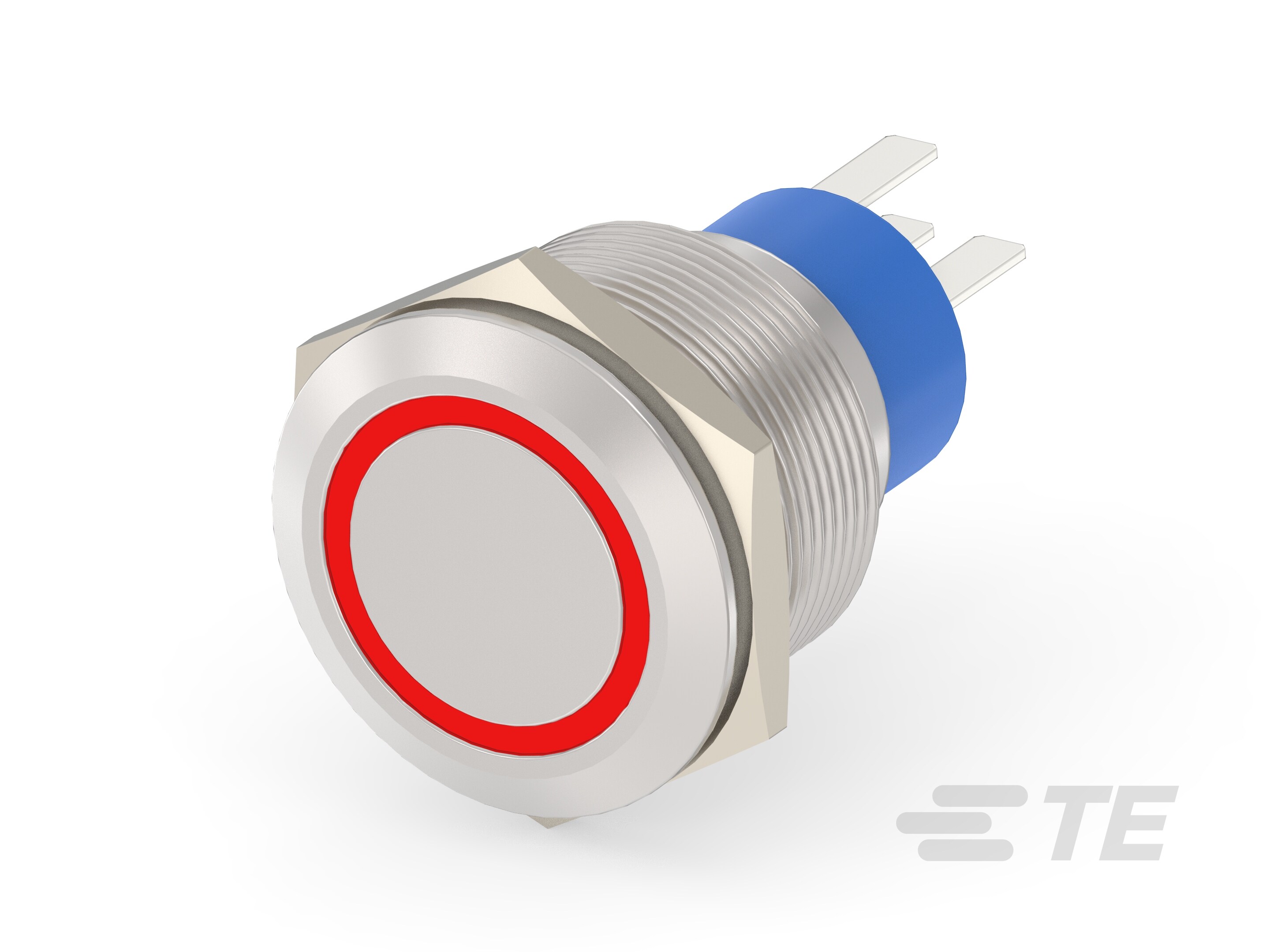

TE Connectivity AMP Connectors AV2211E312Q04	Silver	55 °C	-20 ░C	12 VDC		SPDT	IP67 - Dust Tight Waterproof	250 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	LED Red	3 A	Button Flush Round	On-On	500000 Cycles	50000 Cycles
TE Connectivity AMP Connectors AV2221E312Q04	Silver	55 °C	-20 ░C	12 VDC		DPDT	IP67 - Dust Tight Waterproof	250 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	LED Red	3 A	Button Flush Round	On-On	500000 Cycles	50000 Cycles
TE Connectivity AMP Connectors AV2221E124R04	Silver	55 °C	-20 ░C	24 V	20 V	DPDT	IP67 - Dust Tight Waterproof	20 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	LED White	0.4 VA	Button Flush Round	On-On

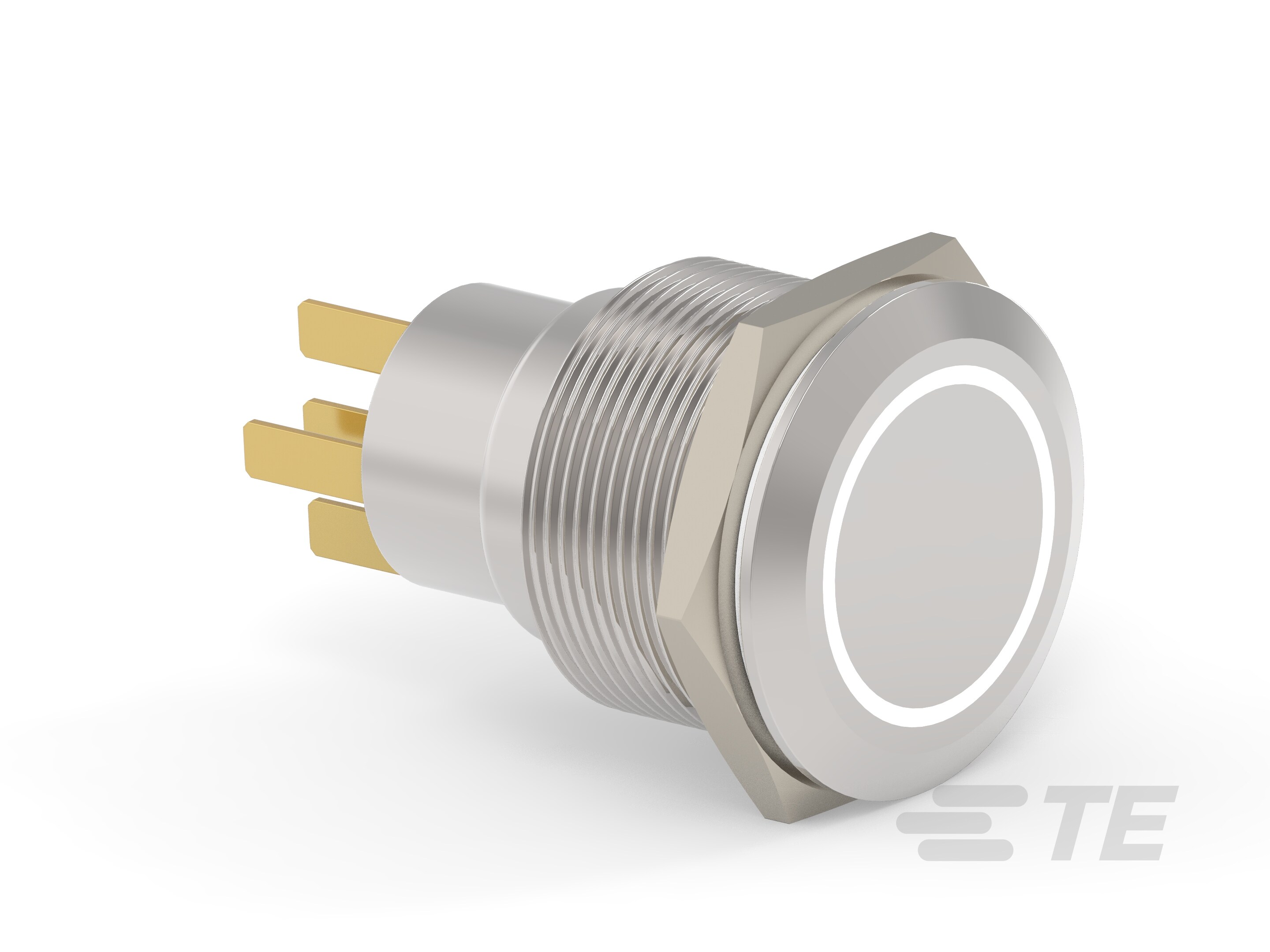

TE Connectivity AMP Connectors AV2210E112R04	Silver	55 °C	-20 ░C	12 VDC	20 V	SPDT	IP67 - Dust Tight Waterproof	20 V	No Marking	Panel Mount Front	Anti-Vandal Illuminated	22.2 mm	Solder Lug	LED White	0.4 VA	Button Flush Round	On-Mom
