OAB13372 Series
Manufacturer: Orion Fans
Beta
⌘K

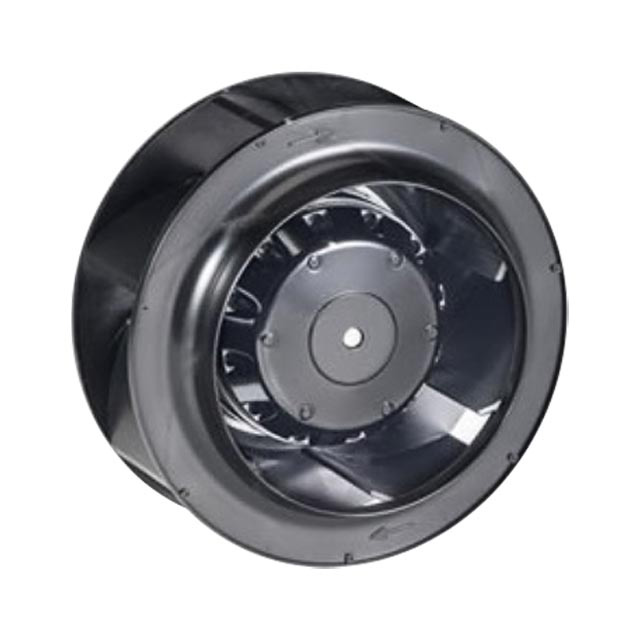

FAN IMP MTRZD 133X72MM 115VAC W/
| Part | Ingress Protection | Current Rating (Amps) | Size / Dimension [diameter] | Features | Material - Frame | Width [y] | Material - Blade | Air Flow | Air Flow | Voltage - Rated | RPM | Fan Type | Termination | Weight | Weight | Lifetime @ Temp. | Static Pressure | Static Pressure | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Noise | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Orion Fans | IP55 - Dust Protected Water Resistant | 430 mA | 133 mm | Thermal Overload Protector (TOP) | Aluminum | 72.5 mm | Thermoplastic | 5.26 m³/min | 188 CFM | 115 VAC | 3200 RPM | Motorized Impellers | 2 Wire Leads | 907.2 g | 2 lbs | 40000 Hrs | 0.88 in H2O | 219.2 Pa | 41 W | 60 °C | 60 °C | -40 °C | -40 °C | 60 dB(A) | Ball |
 Orion Fans | IP55 - Dust Protected Water Resistant | 0.21 A | 133 mm | Thermal Overload Protector (TOP) | Aluminum | 72.5 mm | Thermoplastic | 5.26 m³/min | 188 CFM | 230 VAC | 3200 RPM | Motorized Impellers | 2 Wire Leads | 907.2 g | 2 lbs | 40000 Hrs | 0.88 in H2O | 219.2 Pa | 39 W | 60 °C | 60 °C | -40 °C | -40 °C | 60 dB(A) | Ball |
