OA92AP Series

Catalog

FAN AXIAL 92X26MM 230VAC WIRE

Part	Material - Blade	RPM	Voltage - Rated	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Air Flow	Air Flow	Bearing Type	Fan Type	Power (Watts)	Lifetime @ Temp.	Width [y]	Termination	Approval Agency	Material - Frame	Features	Voltage - Rated [Max]	Voltage - Rated [Min]	Noise

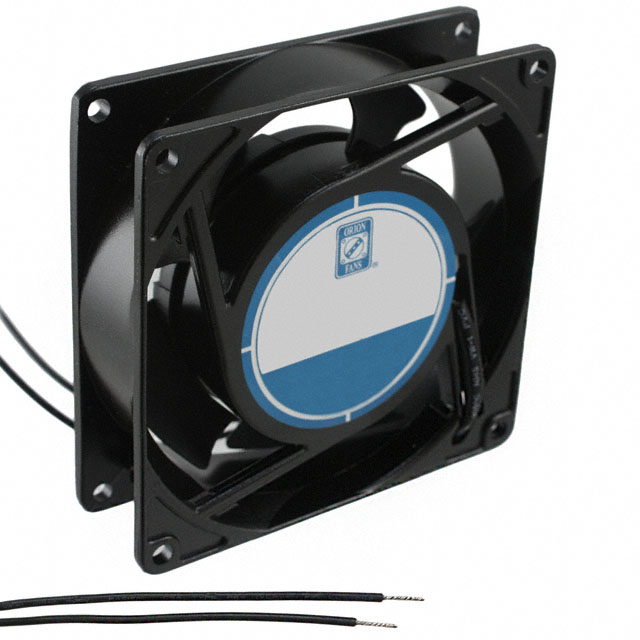

Orion Fans OA92AP-22-1WB	Polybutylene Terephthalate (PBT)	3000 RPM	230 VAC	0.644 lb	292.11 g	260 VAC	160 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Wire Leads	cURus TUV	Aluminum
Orion Fans OA92AP-11-1WB	Polybutylene Terephthalate (PBT)	3000 RPM	115 VAC	0.644 lb	292.11 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Wire Leads	cURus TUV	Aluminum

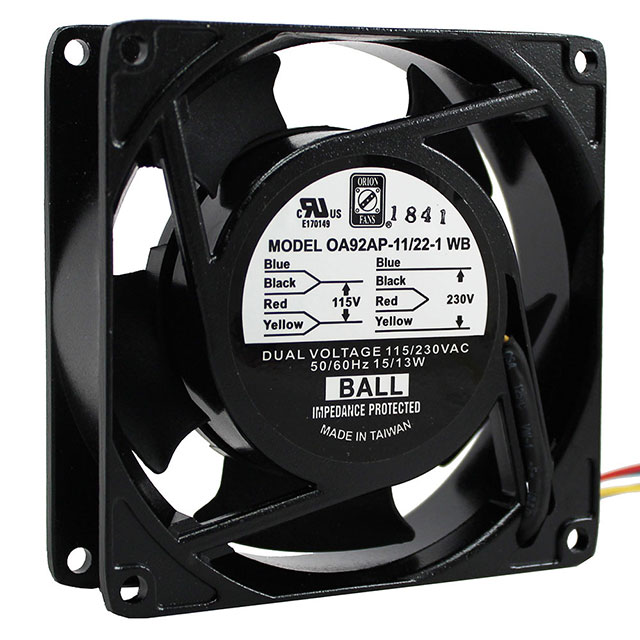

Orion Fans OA92AP-11/22-1WB	Polybutylene Terephthalate (PBT)	3000 RPM				260 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	4 Wire Leads	cURus TUV	Aluminum	Dual Voltage	230 VAC	115 VAC
Orion Fans OA92AP-22-1TB	Polybutylene Terephthalate (PBT)	3000 RPM	230 VAC	0.644 lb	292.11 g	260 VAC	160 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Terminals	cURus TUV	Aluminum
Orion Fans OA92AP-11-1TB	Polybutylene Terephthalate (PBT)	3000 RPM	115 VAC	0.644 lb	292.11 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	49.8 Pa	0.2 in H2O	0.98 m³/min	35 CFM	Ball	Tubeaxial	13 W	60000 Hrs	26 mm	2 Terminals	cURus TUV	Aluminum

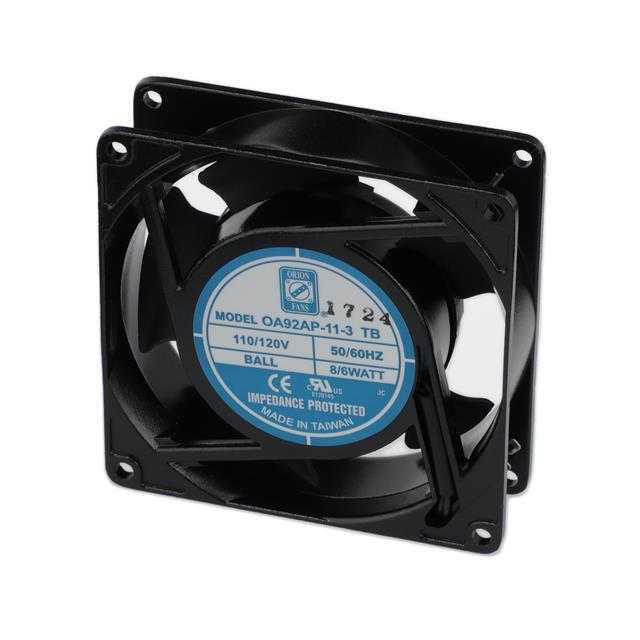

Orion Fans OA92AP-11-3TB	Polybutylene Terephthalate (PBT)	1900 RPM	115 VAC	0.644 lb	292.11 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C	22.4 Pa	0.09 in H2O	0.616 m³/min	22 CFM	Ball	Tubeaxial	6 W	60000 Hrs	26 mm	2 Terminals	cURus TUV	Aluminum				19 dB(A)
