YK221 Series

Catalog

CONN BARRIER STRIP 11CIRC 0.25"

Part	Material Flammability Rating	Terminal Screw Finish	Current Rating (Amps)	Voltage Rating	Terminal Block Type	Number of Rows	Color	Number of Wire Entries	Bottom Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Circuits	Barrier Type	Top Termination	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Screw Material	Pitch [x]	Pitch [x]	Number of Circuits [custom]	Number of Wire Entries [custom]
Amphenol Anytek YK2211103000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	11	PC Pin	-40 °C	115 °C	Through Hole	11	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
Amphenol Anytek YK2210803000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	8	PC Pin	-40 °C	115 °C	Through Hole		3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm	8
Amphenol Anytek YK2211603000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	16	PC Pin	-40 °C	115 °C	Through Hole	16	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
Amphenol Anytek YK2212703000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black		PC Pin	-40 °C	115 °C	Through Hole	27	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm		27
Amphenol Anytek YK2212103000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	21	PC Pin	-40 °C	115 °C	Through Hole	21	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
Amphenol Anytek YK2210903000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	9	PC Pin	-40 °C	115 °C	Through Hole		3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
Amphenol Anytek YK2211403000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	14	PC Pin	-40 °C	115 °C	Through Hole	14	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm

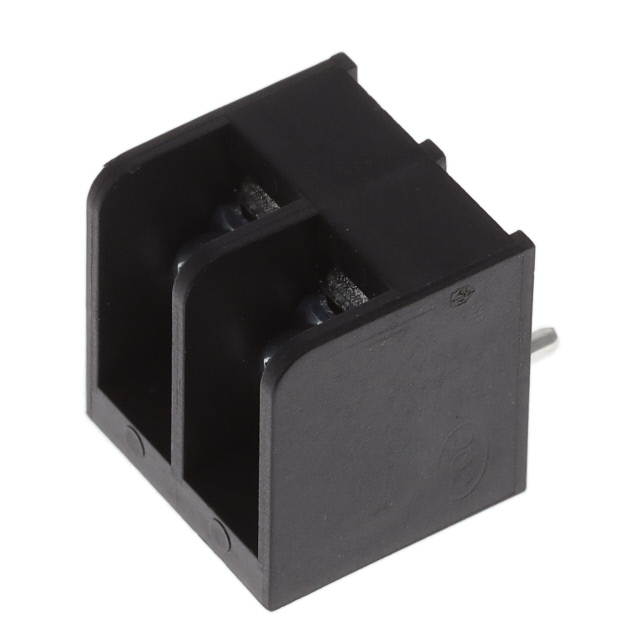

Amphenol Anytek YK2210203000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	2	PC Pin	-40 °C	115 °C	Through Hole	2	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
Amphenol Anytek YK2210603000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	6	PC Pin	-40 °C	115 °C	Through Hole	6	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
Amphenol Anytek YK2212003000G	UL94 V-0	Zinc	10 A	250 VDC	Barrier Block	1	Black	20	PC Pin	-40 °C	115 °C	Through Hole	20	3 Wall (Tri)	Screws with Captive Plate	Thermoplastic	22 AWG	17.5 AWG	Steel	0.25 in	6.35 mm
