OAB220 Series
Manufacturer: Orion Fans
Beta
⌘K

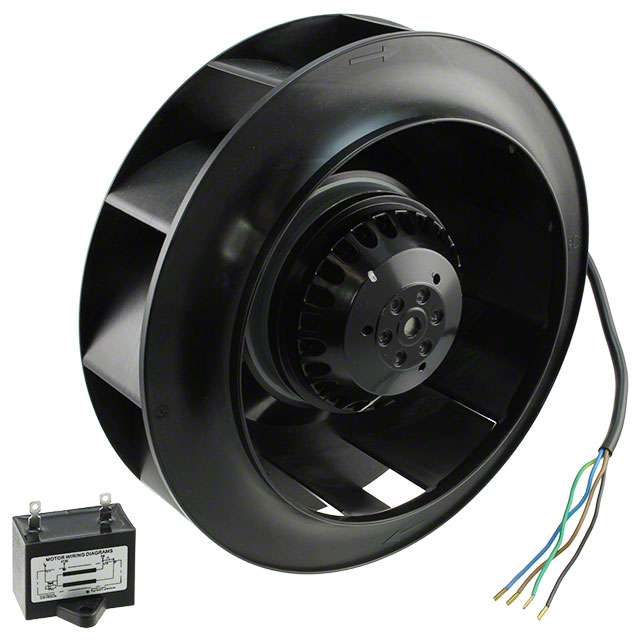

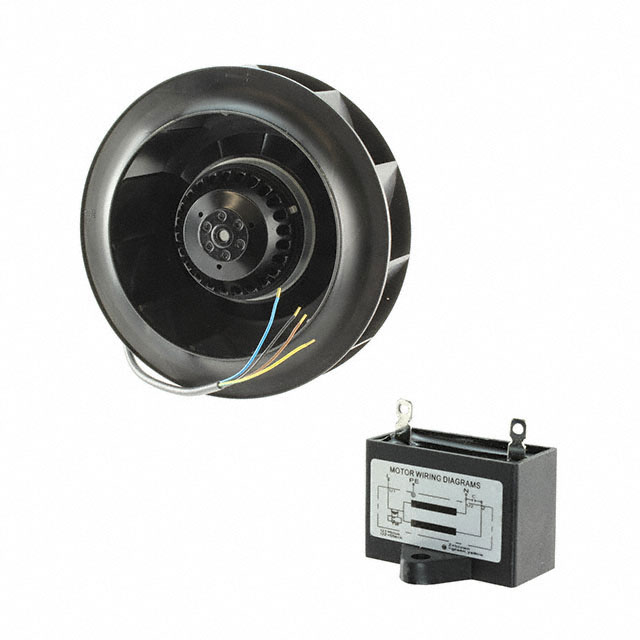

FAN BLOWER, MOTORIZED IMPELLER, 120 VAC, AC, 220 MM, 71 MM, 530 CFM
| Part | Width [y] | Size / Dimension [diameter] | Features | Static Pressure | Static Pressure | Lifetime @ Temp. | Size / Dimension | Air Flow | Air Flow | Voltage Range [Min] | Voltage Range [Max] | Voltage - Rated | Material - Frame | Ingress Protection | RPM | Width [x] | Current Rating (Amps) | Bearing Type | Termination | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Power (Watts) | Approval Agency | Material - Blade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Orion Fans | 76 mm | 220 mm 223 mm | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1.5 in H2O | 373.6 Pa | 40000 Hrs | Round | 530 CFM | 14.84 mł/min | 100 VAC | 125 VAC | 115 VAC | Aluminum | IP55 - Dust Protected Water Resistant | 2650 RPM | 71 mm | 0.98 A | Ball | 4 Wire Leads | 60 °C | 60 °C | -40 °C | -40 °C | Motorized Impellers | 117 W | cURus TUV | Thermoplastic |
 Orion Fans | 76 mm | 220 mm 223 mm | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1.5 in H2O | 373.6 Pa | 40000 Hrs | Round | 530 CFM | 14.84 mł/min | 230 VAC | Aluminum | IP55 - Dust Protected Water Resistant | 2650 RPM | 71 mm | 0.5 A | Ball | 4 Wire Leads | 60 °C | 60 °C | -40 °C | -40 °C | Motorized Impellers | 117 W | cURus TUV | Thermoplastic |
