VK02 Series

Catalog

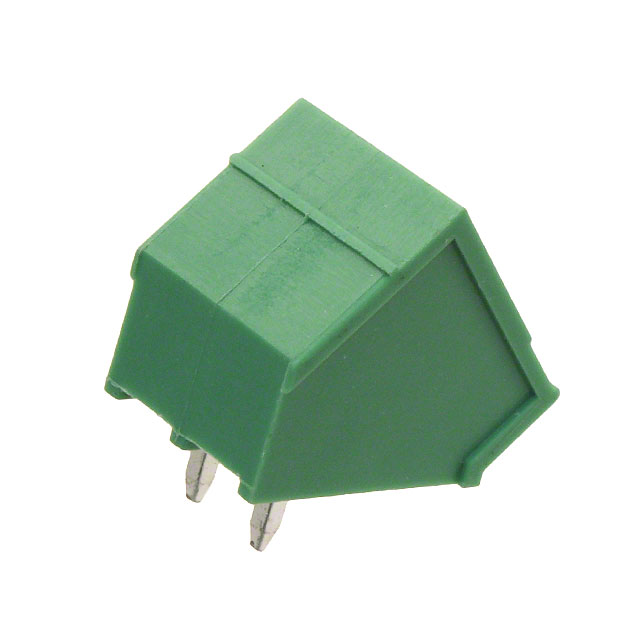

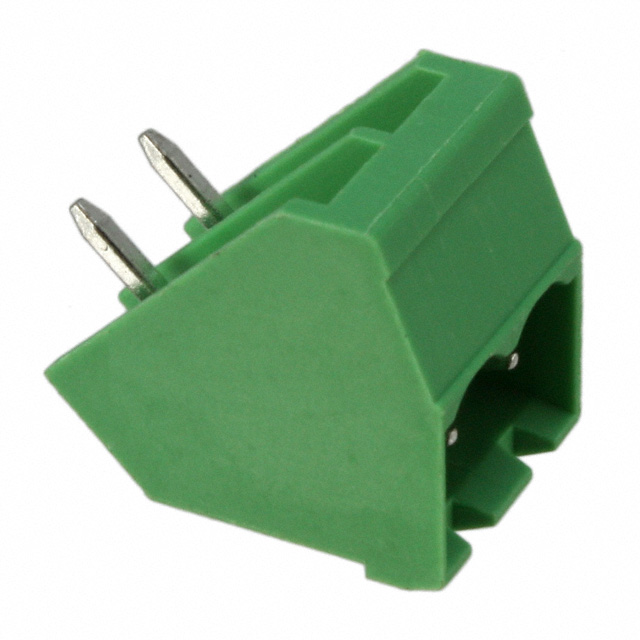

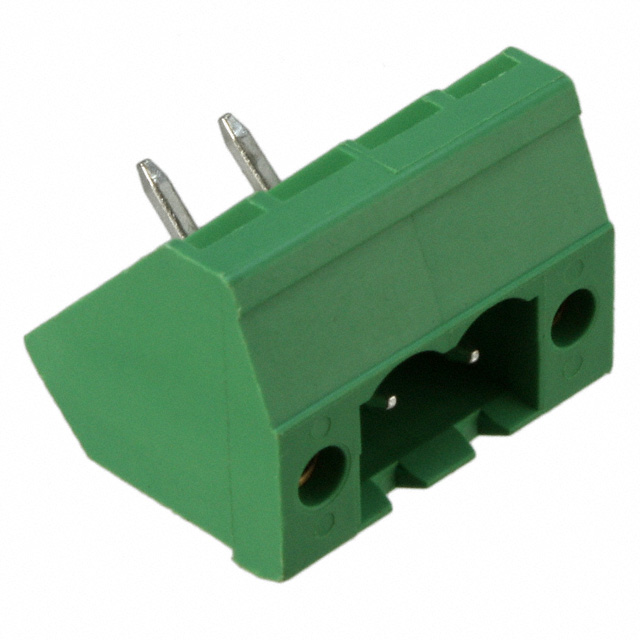

TERM BLOCK HDR 2POS 45DEG 5.08MM

Part	Housing Material	Contact Mating Finish	Material Flammability Rating	Number of Levels	Contact Material	Positions Per Level	Pitch [x]	Pitch [x]	Number of Positions	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Height	Insulation Height	Voltage - UL	Contact Tail Length	Contact Tail Length	Type	Termination Style	Color	Features	Current - UL
Amphenol Anytek VK0252500000G	Thermoplastic Resin	Tin	UL94 V-0	1	Copper Alloy	2	0.2 in	5.08 mm	2	45 °	-40 °C	115 °C	Through Hole	14.5 mm	0.571 in	300 V	0.161 in	4.1 mm	Header Male Pins Shrouded (4 Side)	Solder	Green	Mating Flange
Amphenol Anytek VK0250500000G	Thermoplastic	Tin	UL94 V-0	1	Copper	2	0.2 in	5.08 mm	2	45 °	-40 °C	115 °C	Through Hole	14.5 mm	0.571 in	300 V	0.161 in	4.1 mm	Header Male Pins Shrouded (2 Side)	Solder	Green
Amphenol Anytek VK0271500000G	Thermoplastic Resin	Tin	UL94 V-0	1	Copper Alloy	2	0.197 in	5 mm	2	45 °	-40 °C	115 °C	Through Hole	14.5 mm	0.571 in	300 V	0.161 in	4.1 mm	Header Male Pins Shrouded (4 Side)	Solder	Green
Amphenol Anytek VK0212500000G	Thermoplastic	Tin	UL94 V-0	1	Copper	2	0.138 in	3.5 mm	2	45 °	-40 °C	115 °C	Through Hole	11 mm	0.433 in	300 V	0.134 in	3.4 mm	Header Male Pins Shrouded (4 Side)	Solder	Green	Mating Flange	8 A
Amphenol Anytek VK0251500000G	Thermoplastic Resin	Tin	UL94 V-0	1	Copper Alloy	2	0.2 in	5.08 mm	2	45 °	-40 °C	115 °C	Through Hole	14.5 mm	0.571 in	300 V	0.161 in	4.1 mm	Header Male Pins Shrouded (4 Side)	Solder	Green
Amphenol Anytek VK0231500000G	Thermoplastic Resin	Tin	UL94 V-0	1	Copper Alloy	2	0.15 in	3.81 mm	2	45 °	-40 °C	115 °C	Through Hole	11 mm	0.433 in	300 V	0.134 in	3.4 mm	Header Male Pins Shrouded (4 Side)	Solder	Green		8 A
Amphenol Anytek VK0231000000G	Thermoplastic	Tin	UL94 V-0	1	Copper	2	0.15 in	3.81 mm	2	45 °	-40 °C	115 °C	Through Hole	11 mm	0.433 in	300 V	0.134 in	3.4 mm	Header Male Pins Shrouded (4 Side)	Solder	Black		8 A
