ALCOSWITCH AVC19 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

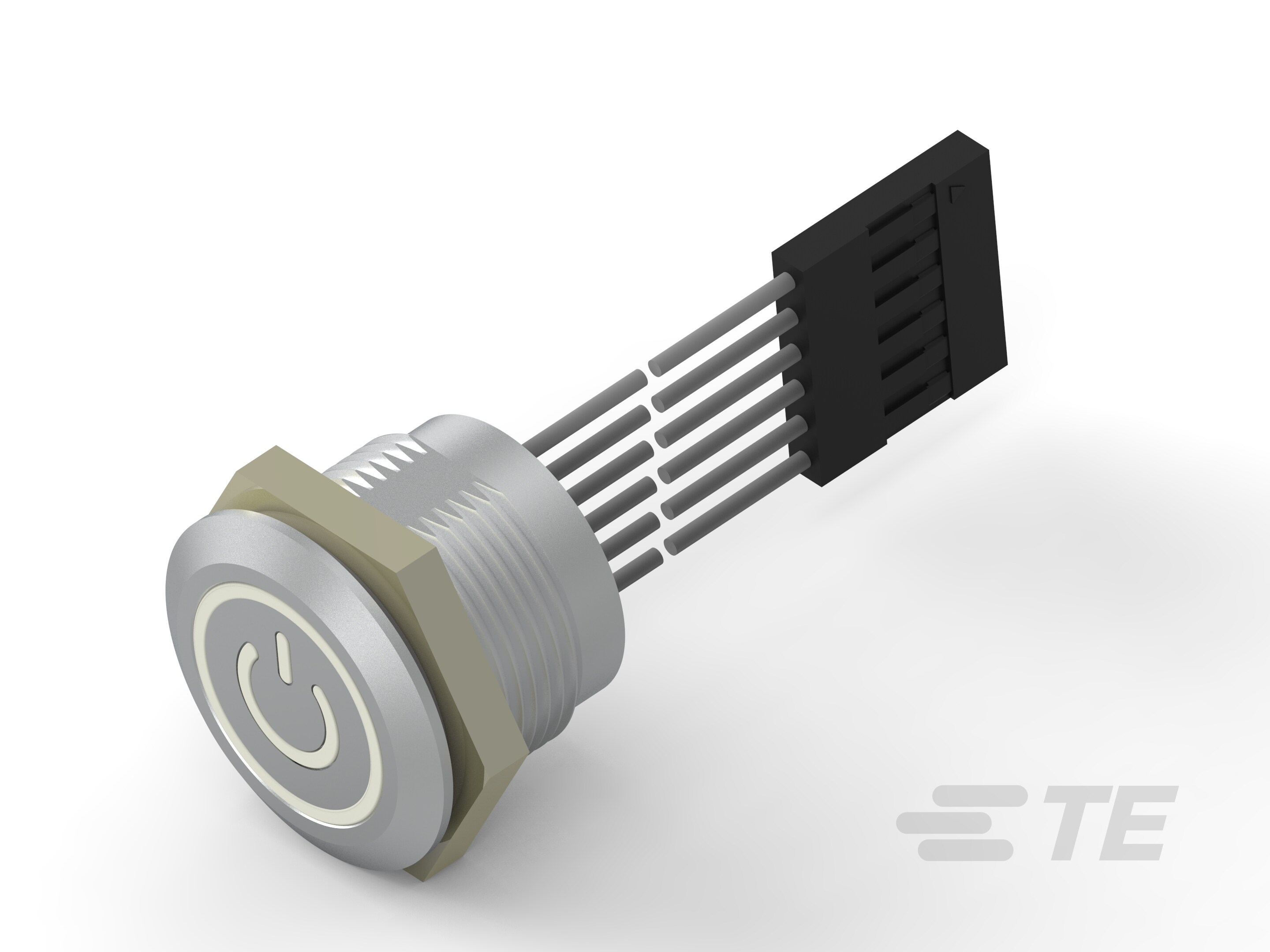

PUSHBUTTON SWITCHES AVC19M FLAT AIO RGB R 500MM/1X6

Part	Illumination Type, Color	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Circuit	Switch Function	Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Actuator Type	Ingress Protection	Actuator Marking	Electrical Life	Mechanical Life

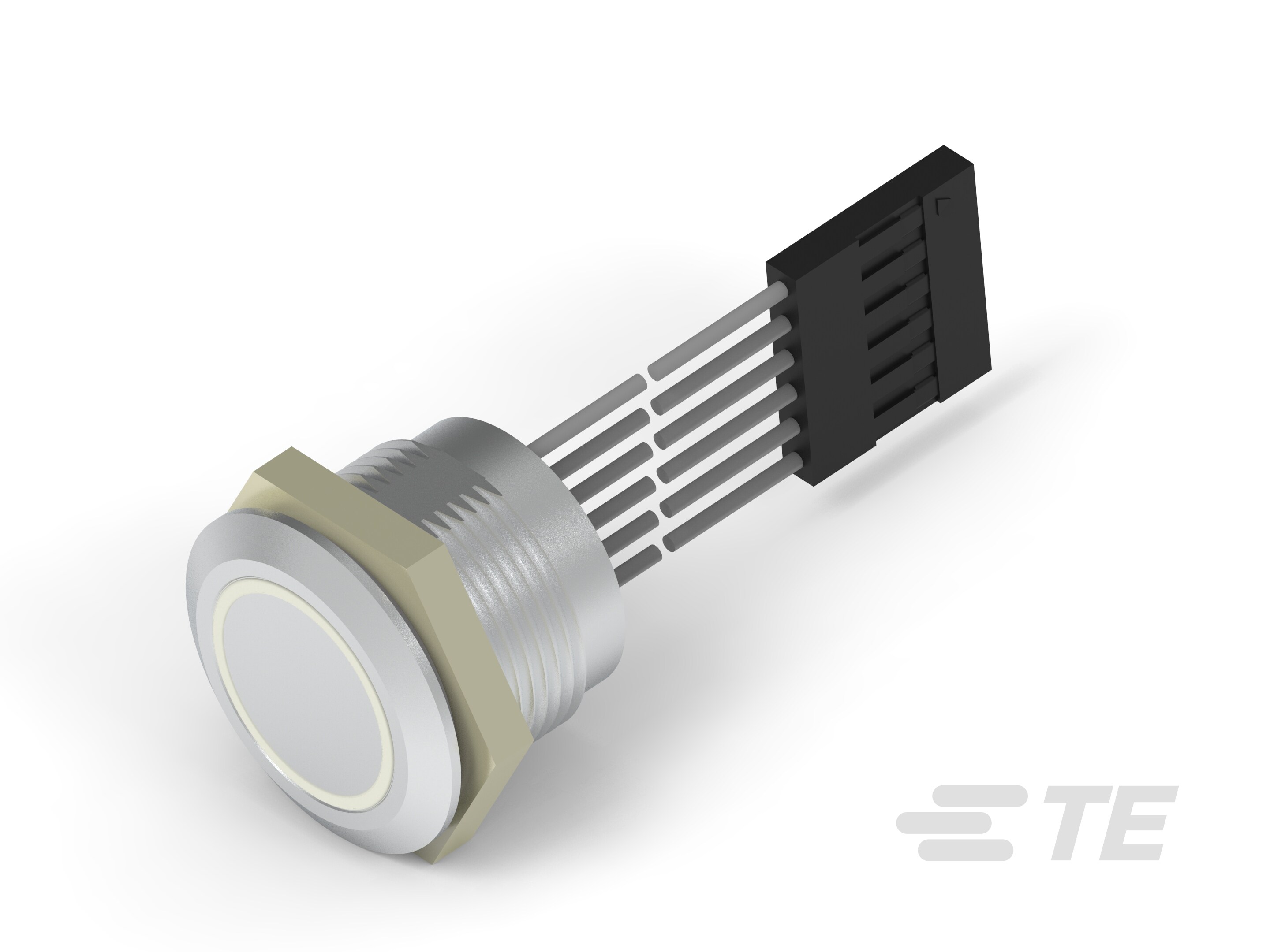

TE Connectivity AMP Connectors AVC19MAIOFE0DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST-NO	Off-Mom	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking

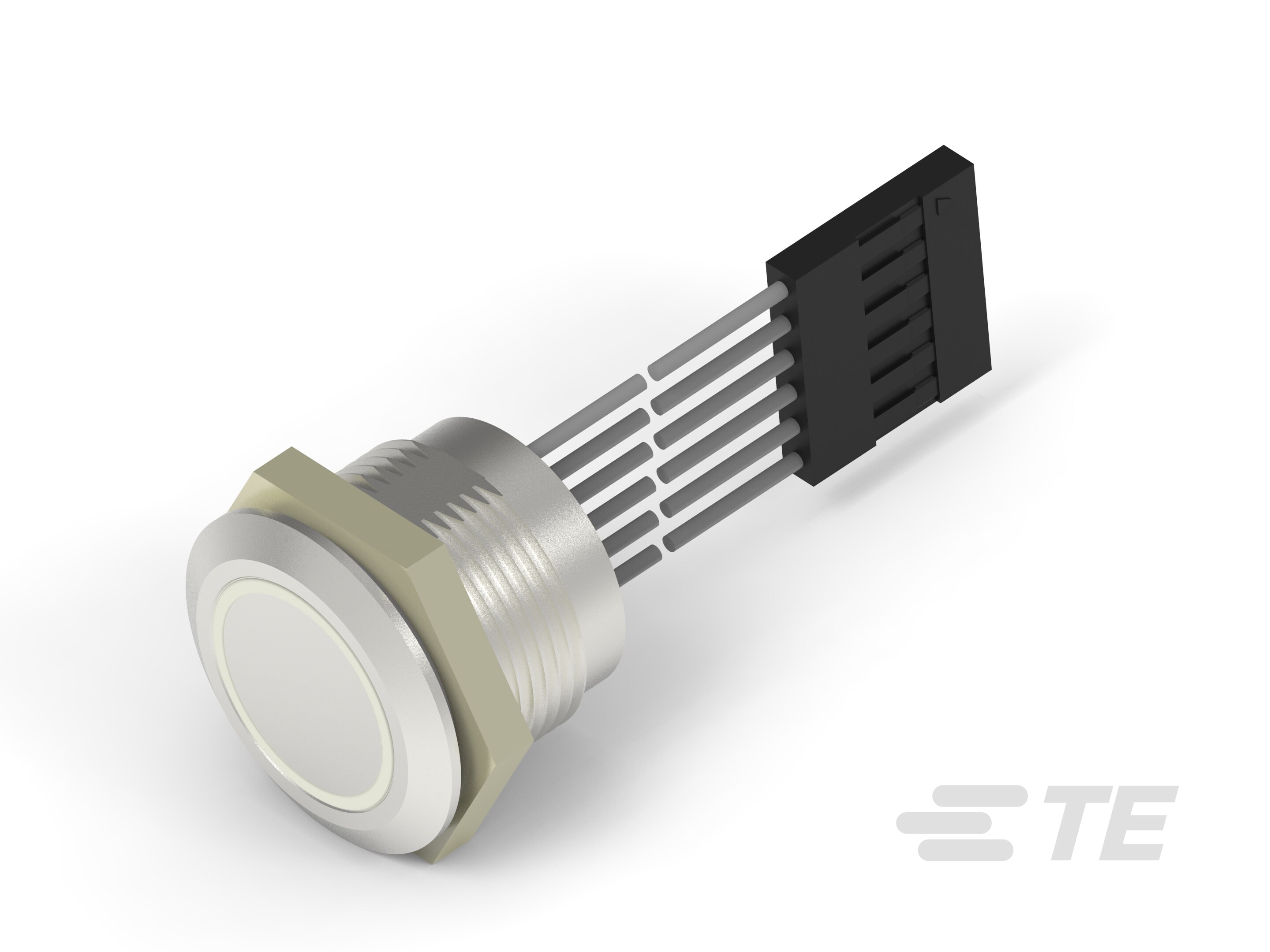

TE Connectivity AMP Connectors AVC19LS16FE0DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST	Off-On	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking
TE Connectivity AMP Connectors AVC19LAIOFE0DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST	Off-On	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking
TE Connectivity AMP Connectors AVC19MAIOFE1DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST-NO	Off-Mom	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking
TE Connectivity AMP Connectors AVC19LAIOFE1DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST	Off-On	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking
TE Connectivity AMP Connectors AVC19LS16FE1DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST	Off-On	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking
TE Connectivity AMP Connectors AVC19MS04FE0DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST-NO	Off-Mom	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking	50 000 000	50000000 Cycles

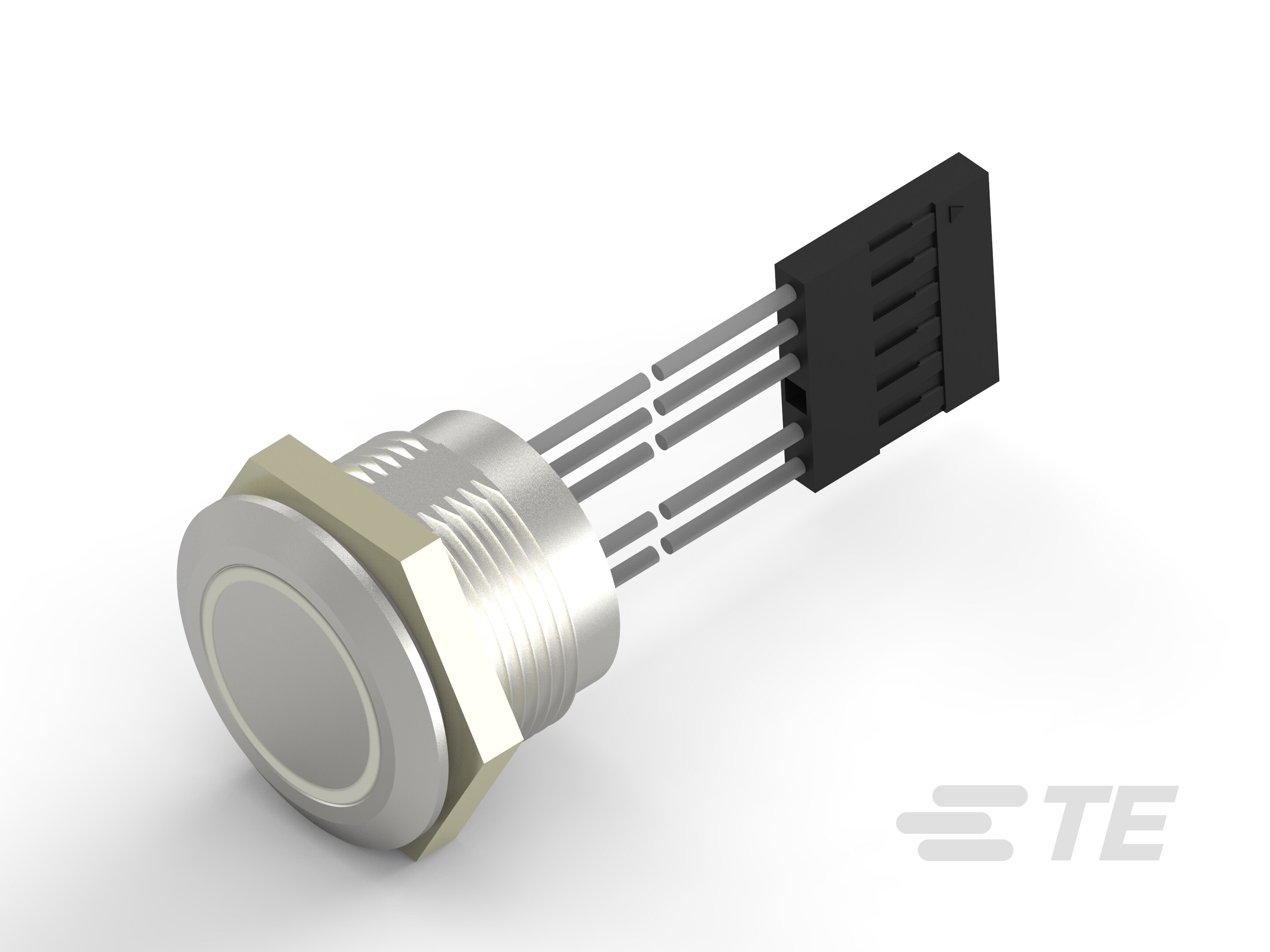

TE Connectivity AMP Connectors AVC19LS04FE03T5A04	Blue/Green LED	1 A	Silver	Panel Mount Front	SPST	Off-On	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking	50 000 000	50000000 Cycles
TE Connectivity AMP Connectors AVC19LS04FE1DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST	Off-On	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking

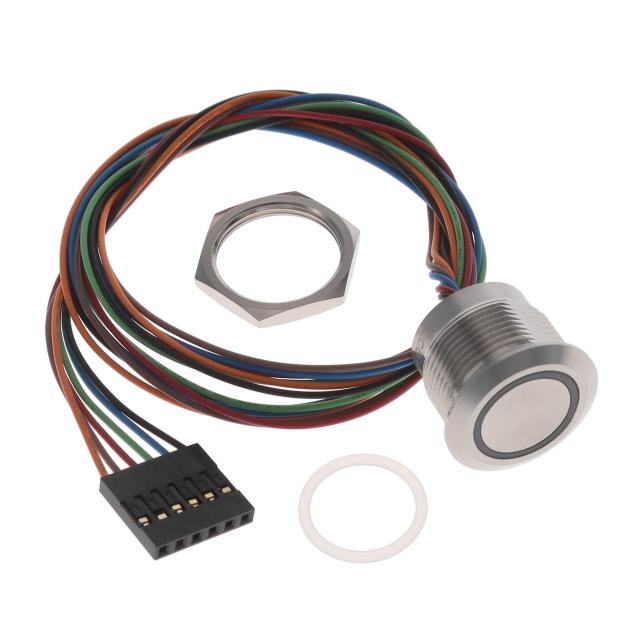

TE Connectivity AMP Connectors AVC19MS16FE0DT5A04	Blue Green LED Red	1 A	Silver	Panel Mount Front	SPST-NO	Off-Mom	Anti-Vandal Capacitive Illuminated	24 V	19.2 mm	Button Flush Round	IP68 - Dust Tight Waterproof	No Marking	50 000 000	50000000 Cycles
