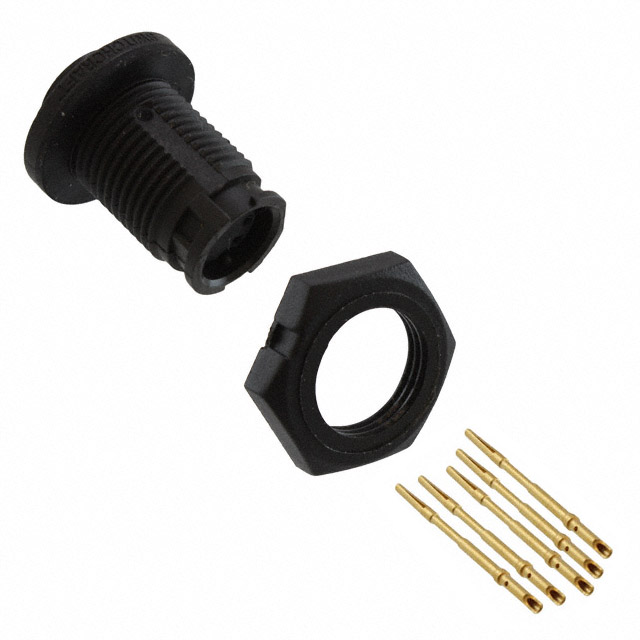

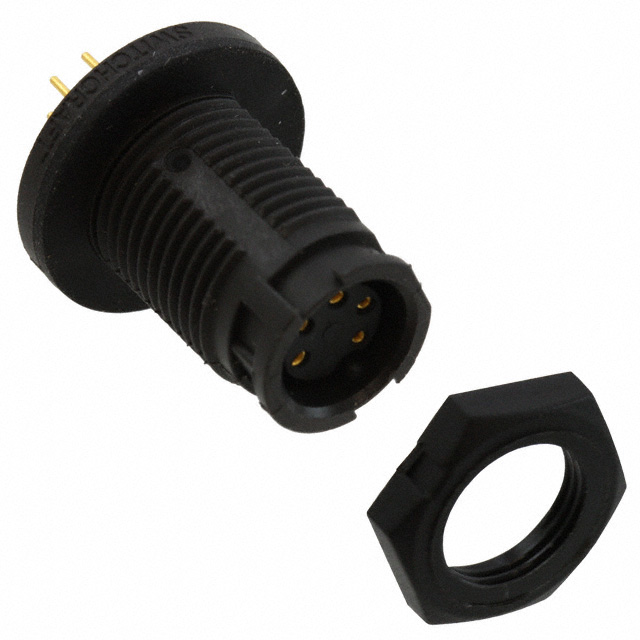

EN2P5F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Primary Material | Contact Material | Contact Finish - Mating | Termination | Color | Material Flammability Rating | Ingress Protection | Fastening Type | Shielding | Insert Material | Mounting Feature | Applications | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Orientation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Plastic | Copper Alloy | Gold | Solder | Black | UL94 V-0 | IP66 IP67 IP68 | Bayonet Lock | Unshielded | Elastomer | Bulkhead - Front Side Nut | Communication Systems Industrial Marine Medical | Receptacle Female Sockets | 85 °C | -40 °C | 125 VAC | Keyed | Panel Mount Through Hole |
 Switchcraft Inc. | Plastic | Copper Alloy | Gold | Crimp Solder Cup | Black | UL94 V-0 | IP66 IP67 IP68 | Bayonet Lock | Unshielded | Elastomer | Bulkhead - Front Side Nut | Communication Systems Industrial Marine Medical | Receptacle Female Sockets | 85 °C | -40 °C | 125 VAC | Keyed |
