ECL30 Series
Manufacturer: XP POWER
Beta
⌘K
AC/DC CONVERTER +/-12V 30W
| Part | Voltage - Output 2 | Type | Efficiency | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Standard Number | Minimum Load Required | Power (Watts) | Number of Outputs | Features | Current - Output 2 | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Current - Output 1 | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

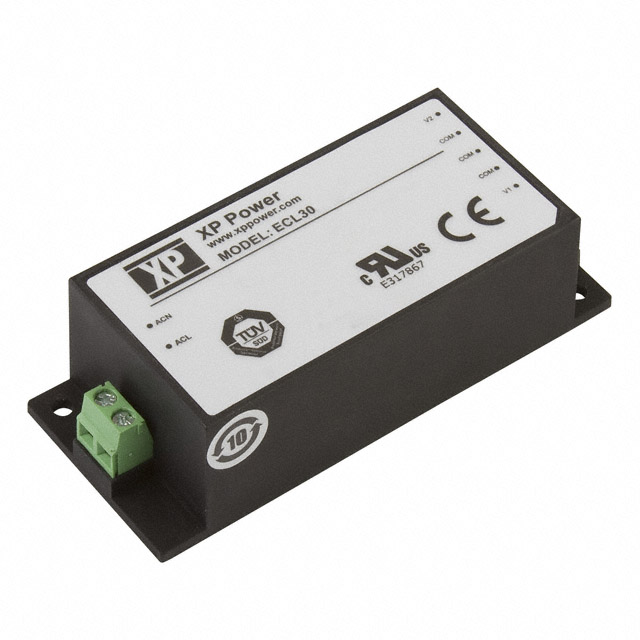

 XP POWER | -12 V | Enclosed | 84 % | Chassis Mount | 28.5 mm | 1.57 " | 3.78 " | 40 mm | 1.12 in | 96 mm | 62368-1 | 30 W | 2 | Adjustable Output DC Input Capable Universal Input | 1.3 A | 12 V | -20 °C | 70 °C | ITE (Commercial) | 1.3 A | 3000 V | |
 XP POWER | 12 V | Enclosed | 81 % | Chassis Mount | 28.5 mm | 1.57 " | 3.78 " | 40 mm | 1.12 in | 96 mm | 62368-1 | 30 W | 2 | Adjustable Output DC Input Capable Universal Input | 1.3 A | 5 V | -20 °C | 70 °C | ITE (Commercial) | 3 A | 3000 V | |

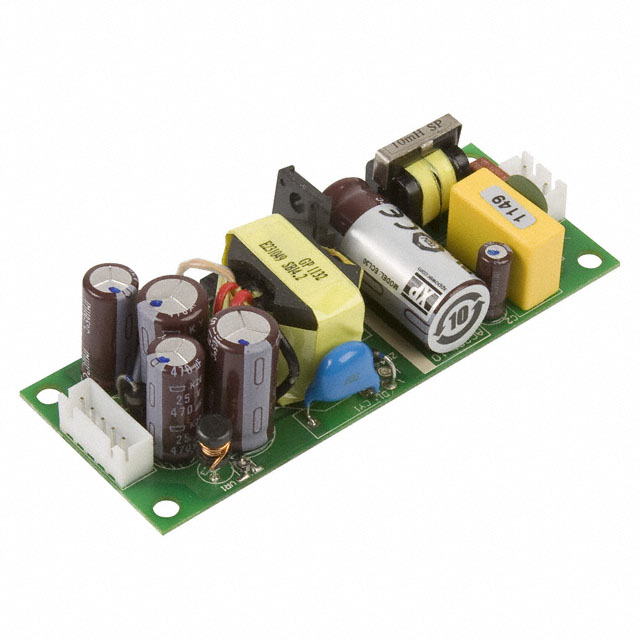

 XP POWER | 12 V | Open Frame | 81 % | Chassis Mount | 22.4 mm | 1.36 " | 3.46 " | 34.6 mm | 0.88 in | 87.9 mm | 62368-1 | 30 W | 2 | Adjustable Output DC Input Capable Universal Input | 1.3 A | 5 V | -20 °C | 70 °C | ITE (Commercial) | 3 A | 3000 V |
