EN3C10 Series

Catalog

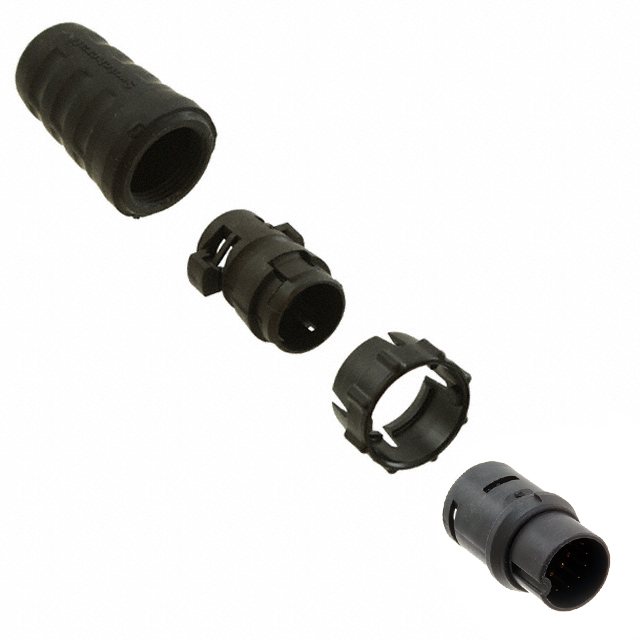

CONN PLUG MALE 10P GOLD SLDR CUP

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Voltage Rating	Features	Contact Finish - Mating	Fastening Type	Insert Material	Backshell Material, Plating	Number of Positions	Applications	Contact Material	Primary Material	Color	Material Flammability Rating	Ingress Protection	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3C10M26X	Male Pins Plug	65 °C	-40 °C	3 A	Unshielded	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	250 VAC	Backshell Cable Clamp Coupling Nut	Gold	Bayonet Lock	Elastomer	Thermoplastic	10	General Purpose Instrumentation Marine Medical	Copper Alloy	Plastic	Black	UL94 V-0	IP66/IP68	Free Hanging (In-Line)
Switchcraft Inc. EN3C10F26LX	Female Sockets Plug	65 °C	-40 °C	3 A	Unshielded			Keyed	250 VAC	Backshell Cable Clamp Coupling Nut	Gold	Bayonet Lock	Elastomer	Thermoplastic	10	General Purpose Instrumentation Marine Medical	Copper Alloy	Plastic	Black	UL94 V-0	IP66/IP68	Free Hanging (In-Line)	5.84 mm	0.38 in	9.65 mm	0.23 in
Switchcraft Inc. EN3C10F26SX	Female Sockets Plug	65 °C	-40 °C	3 A	Unshielded	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	250 VAC	Backshell Cable Clamp Coupling Nut	Gold	Bayonet Lock	Elastomer	Thermoplastic	10	General Purpose Instrumentation Marine Medical	Copper Alloy	Plastic	Black	UL94 V-0	IP66/IP68	Free Hanging (In-Line)
Switchcraft Inc. EN3C10F26X	Female Sockets Plug	65 °C	-40 °C	3 A	Unshielded	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	250 VAC	Backshell Cable Clamp Coupling Nut	Gold	Bayonet Lock	Elastomer	Thermoplastic	10	General Purpose Instrumentation Marine Medical	Copper Alloy	Plastic	Black	UL94 V-0	IP66/IP68	Free Hanging (In-Line)
Switchcraft Inc. EN3C10M26SX	Male Pins Plug	65 °C	-40 °C	3 A	Unshielded	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	250 VAC	Backshell Cable Clamp Coupling Nut	Gold	Bayonet Lock	Elastomer	Thermoplastic	10	General Purpose Instrumentation Marine Medical	Copper Alloy	Plastic	Black	UL94 V-0	IP66/IP68	Free Hanging (In-Line)
