EN3C5M Series

Catalog

CONN PLUG MALE 5POS SOLDER CUP

Part	Contact Finish - Mating	Voltage Rating	Primary Material	Applications	Color	Features	Fastening Type	Connector Type	Shielding	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Backshell Material, Plating	Current Rating (Amps)	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Material Flammability Rating	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Termination
Switchcraft Inc. EN3C5MKX	Gold	250 VAC	Plastic	General Purpose Instrumentation Marine Medical	Black	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Male Pins Plug	Unshielded	Elastomer	65 °C	-40 °C	Free Hanging (In-Line)	Thermoplastic	7.5 A	IP66/IP68	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	UL94 V-0	Copper Alloy
Switchcraft Inc. EN3C5MCLX	Gold	250 VAC	Plastic	General Purpose Instrumentation Marine Medical	Black	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Male Pins Plug	Unshielded	Elastomer	65 °C	-40 °C	Free Hanging (In-Line)	Thermoplastic	7.5 A	IP66/IP68			Keyed	UL94 V-0	Copper Alloy	5.84 mm	0.38 in	9.65 mm	0.23 in	Crimp

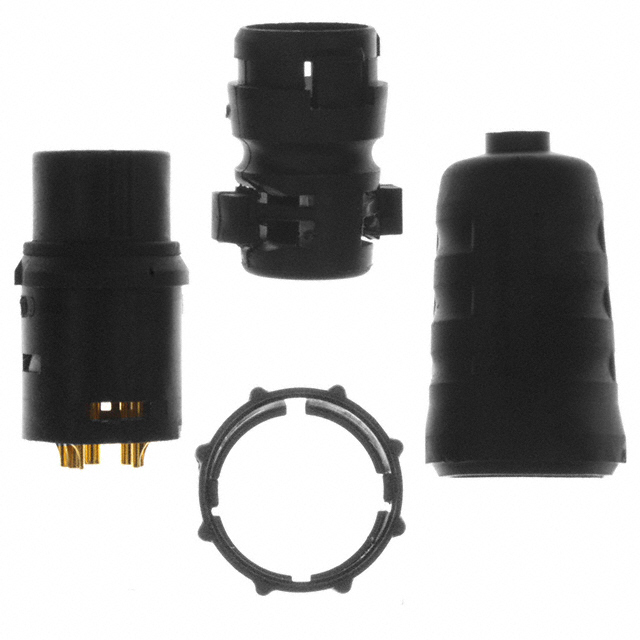

Switchcraft Inc. EN3C5MX	Gold	250 VAC	Plastic	General Purpose Instrumentation Marine Medical	Black	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Male Pins Plug	Unshielded	Elastomer	65 °C	-40 °C	Free Hanging (In-Line)	Thermoplastic	7.5 A	IP66/IP68	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	UL94 V-0	Copper Alloy

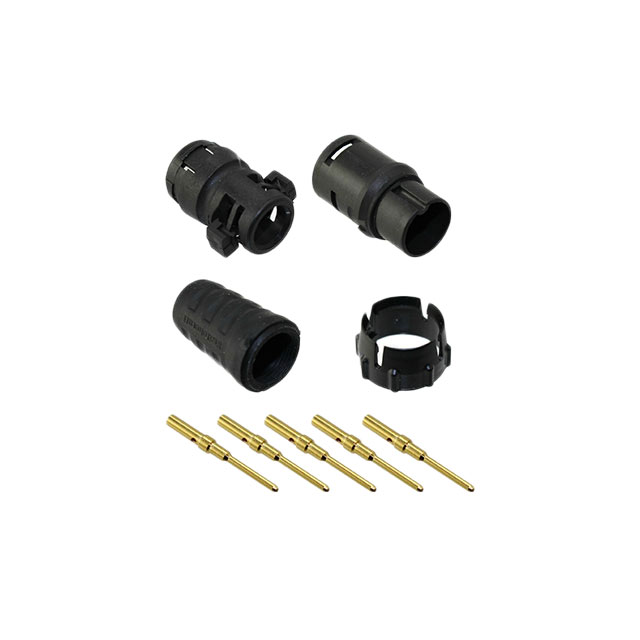

Switchcraft Inc. EN3C5MCX	Gold	250 VAC	Plastic	General Purpose Instrumentation Marine Medical	Black	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Male Pins Plug	Unshielded	Elastomer	65 °C	-40 °C	Free Hanging (In-Line)	Thermoplastic	7.5 A	IP66/IP68	4.06 mm 6.73 mm	0.16 in 0.265 in	Keyed	UL94 V-0	Copper Alloy					Crimp
