EN2P6F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

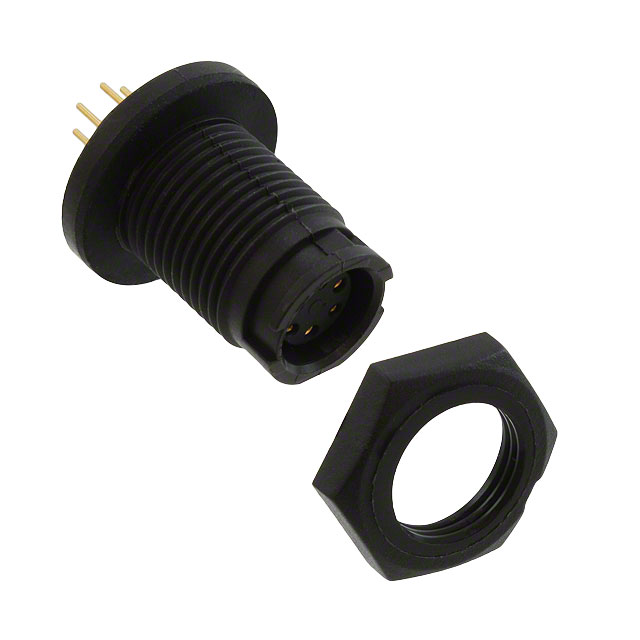

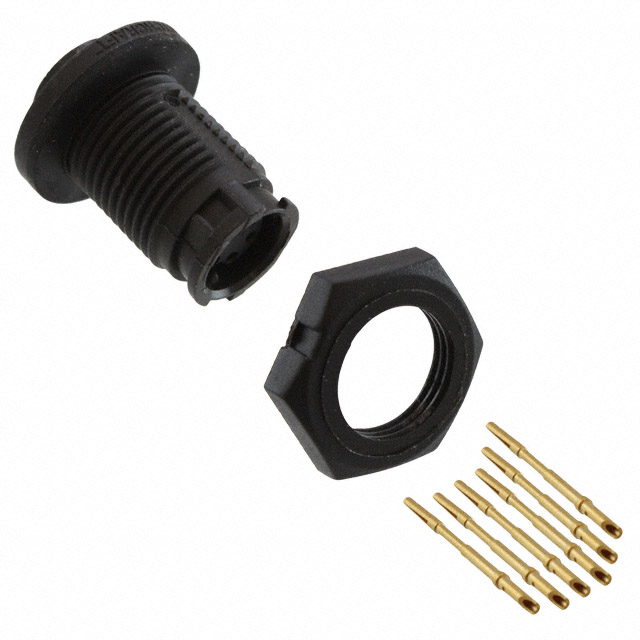

CONN RCPT FMALE 6POS GOLD CRIMP
| Part | Primary Material | Contact Material | Ingress Protection | Voltage Rating | Color | Mounting Feature | Fastening Type | Material Flammability Rating | Shielding | Connector Type | Orientation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Applications | Termination | Insert Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Plastic | Copper Alloy | IP66 IP67 IP68 | 125 VAC | Black | Bulkhead - Front Side Nut | Bayonet Lock | UL94 V-0 | Unshielded | Receptacle Female Sockets | Keyed | 6 | 85 °C | -40 °C | Gold | Communication Systems Industrial Marine Medical | Crimp Solder Cup | Elastomer | |
 Switchcraft Inc. | Plastic | Copper Alloy | IP66 IP67 IP68 | 125 VAC | Black | Bulkhead - Front Side Nut | Bayonet Lock | UL94 V-0 | Unshielded | Receptacle Female Sockets | Keyed | 6 | 85 °C | -40 °C | Gold | Communication Systems Industrial Marine Medical | Solder | Elastomer | Panel Mount Through Hole |
