PKG.M0 Series
Manufacturer: LEMO
Beta
⌘K

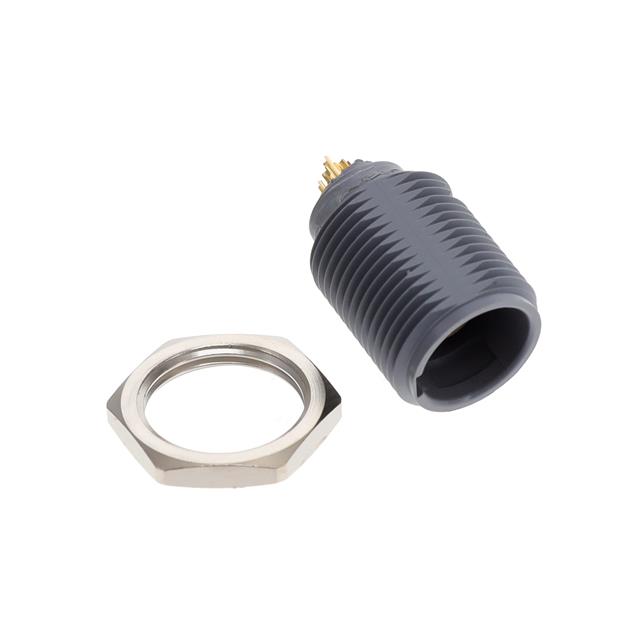

CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Mounting Type | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Current Rating (Amps) | Shell Size - Insert | Applications | Connector Type | Fastening Type | Mounting Feature | Insert Material | Ingress Protection | Primary Material | Shell Material | Termination | Color | Orientation | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Panel Mount Through Hole | Unshielded | -50 °C | 170 °C | Gold | 5 A | M08 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Solder | Black | G | 8 |
LEMO | Unshielded | -50 °C | 170 °C | Gold | 7 A | M05 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Blue Gray | G | |||
LEMO | Unshielded | -50 °C | 170 °C | Gold | 3 A | M09 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Black | G | 9 | ||
LEMO | Unshielded | -50 °C | 170 °C | Gold | 8 A | M04 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | G | 4 | |||
LEMO | Unshielded | -50 °C | 170 °C | Gold | 6 A | M06 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Blue Gray | G | 6 | ||
LEMO | Panel Mount Right Angle Through Hole | Unshielded | -50 °C | 150 °C | Gold | 8 A | M04 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polysulfone (PSU) | Solder | Black | G | 4 |
LEMO | Unshielded | -50 °C | 170 °C | Gold | 8 A | M04 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Crimp | G | 4 | ||
LEMO | Panel Mount Right Angle Through Hole | Unshielded | -50 °C | 170 °C | Gold | 6 A | M06 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Solder | Blue Gray | G | 6 |
 LEMO | Unshielded | -50 °C | 170 °C | Gold | 5 A | M08 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Gray | G | 8 | ||
 LEMO | Unshielded | -50 °C | 170 °C | Gold | 7 A | M05 | Automotive Industrial Medical Testing Equipment & Measurement | Receptacle Female Sockets | Detent Lock Push-Pull | Front and Rear Side Nut | Polyetheretherketone (PEEK) | IP50 | Plastic | Polyetherimide (PEI) | Gray Green | G |
