OAB13391 Series
Manufacturer: Orion Fans
Beta
⌘K

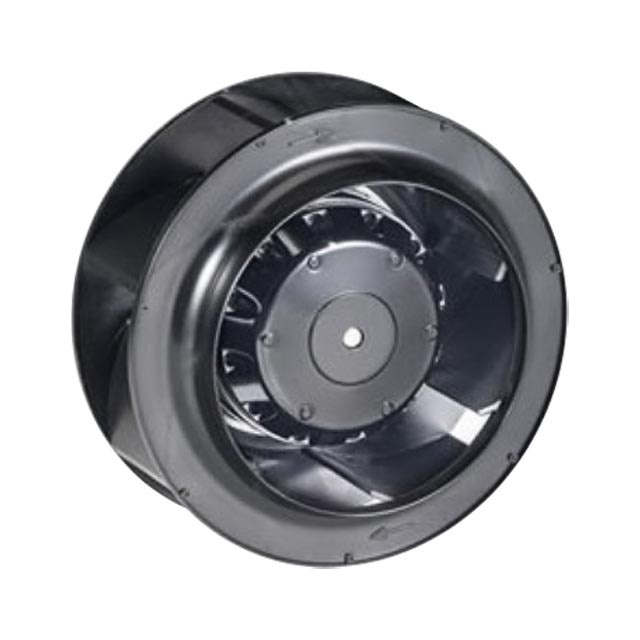

FAN IMP MTRZD 133X91MM 230VAC W/
| Part | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Lifetime @ Temp. | Noise | Static Pressure | Static Pressure | Air Flow | Air Flow | Fan Type | Termination | Ingress Protection | Width [y] | Power (Watts) | Material - Blade | Voltage - Rated | Features | Bearing Type | Material - Frame | Size / Dimension [diameter] | Weight | Weight | Current Rating (Amps) | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Orion Fans | 60 °C | 60 °C | -40 °C | -40 °C | 40000 Hrs | 60 dB(A) | 0.88 in H2O | 219.2 Pa | 5.26 m³/min | 188 CFM | Motorized Impellers | 2 Wire Leads | IP55 - Dust Protected Water Resistant | 91.5 mm | 39 W | Thermoplastic | 230 VAC | Thermal Overload Protector (TOP) | Ball | Aluminum | 133 mm | 1.2 kg | 2.7 lbs | 0.21 A | 3200 RPM |
Orion Fans | 60 °C | 60 °C | -40 °C | -40 °C | 40000 Hrs | 60 dB(A) | 0.88 in H2O | 219.2 Pa | 5.26 m³/min | 188 CFM | Motorized Impellers | 2 Wire Leads | IP55 - Dust Protected Water Resistant | 91.5 mm | 41 W | Thermoplastic | 115 VAC | Thermal Overload Protector (TOP) | Ball | Aluminum | 133 mm | 1.2 kg | 2.7 lbs | 430 mA | 3200 RPM |
