EN3C4F Series

Catalog

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Shielding	Termination	Contact Finish - Mating	Number of Positions	Ingress Protection	Current Rating (Amps)	Orientation	Mounting Type	Connector Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Primary Material	Backshell Material, Plating	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Fastening Type	Color	Contact Material	Features

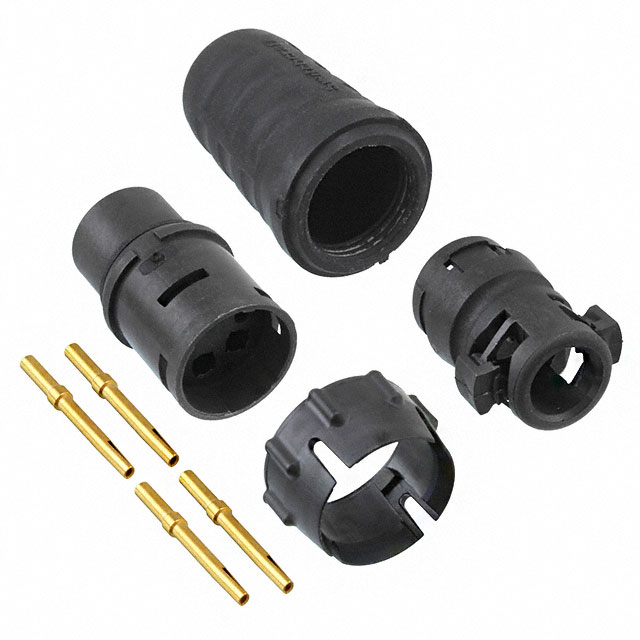

Switchcraft Inc. EN3C4FCX	Unshielded	Crimp	Gold	4	IP66/IP68	7.5 A	Keyed	Free Hanging (In-Line)	Female Sockets Plug	General Purpose Instrumentation Marine Medical	65 °C	-40 °C	Elastomer	Plastic	Thermoplastic	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	Bayonet Lock	Black	Copper Alloy	Backshell Cable Clamp Coupling Nut

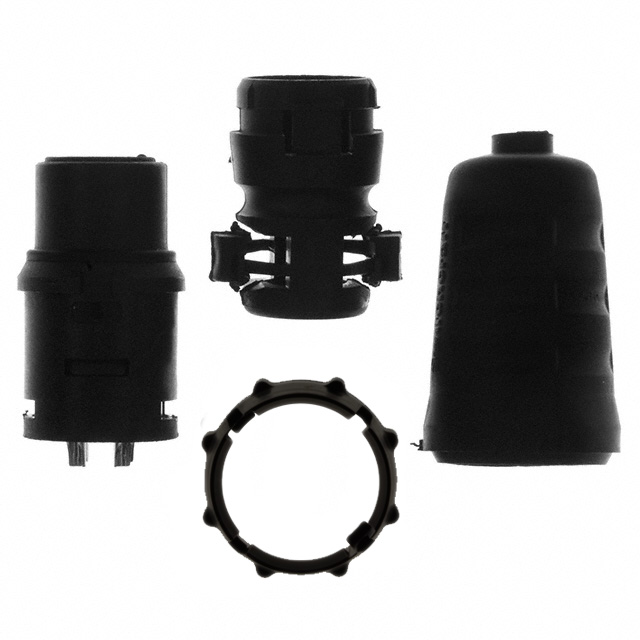

Switchcraft Inc. EN3C4FX	Unshielded		Gold	4	IP66/IP68	7.5 A	Keyed	Free Hanging (In-Line)	Female Sockets Plug	General Purpose Instrumentation Marine Medical	65 °C	-40 °C	Elastomer	Plastic	Thermoplastic	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	Bayonet Lock	Black	Copper Alloy	Backshell Cable Clamp Coupling Nut
Switchcraft Inc. EN3C4FCKX	Unshielded	Crimp	Gold	4	IP66/IP68	7.5 A	Keyed	Free Hanging (In-Line)	Female Sockets Plug	General Purpose Instrumentation Marine Medical	65 °C	-40 °C	Elastomer	Plastic	Thermoplastic	250 VAC	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	Bayonet Lock	Black	Copper Alloy	Backshell Cable Clamp Coupling Nut
