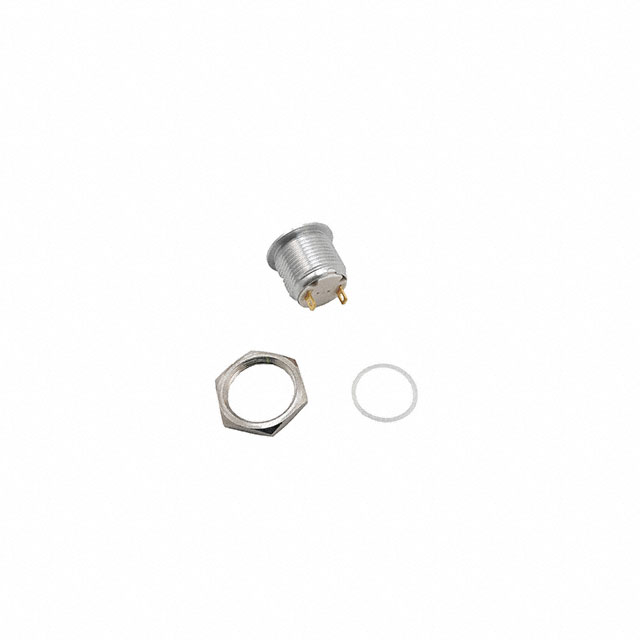

ALCOSWITCH AV16 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
AV16 SPM 0.4VA FIX RING LED BLUE 12V
| Part | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Voltage Rating - DC | Color - Actuator/Cap | Illumination Type, Color | Actuator Type | Actuator Marking | Mounting Type | Circuit | Type | Ingress Protection | Switch Function | Illumination Voltage (Nominal) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | Blue LED | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 12 VDC | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | ||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | LED Yellow | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 12 VDC | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | ||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | Blue LED | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 24 V | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | 1000000 Cycles | 200000 Cycles |
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | LED Yellow | Button Flush Round | Power Symbol | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 12 VDC | -20 ░C | 70 °C | Solder Lug | |||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | LED Red | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 12 VDC | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | ||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | LED White | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 24 V | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | ||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | Green LED | Button Flush Round | Power Symbol | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 24 V | -20 ░C | 70 °C | Solder Lug | |||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | LED Yellow | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 24 V | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | ||
TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | Green LED | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | 24 V | Fixed LED Ring | -20 ░C | 70 °C | Solder Lug | ||
 TE Connectivity AMP Connectors | 16 mm | 2 A | 36 VDC | Silver | Button Flush Round | No Marking | Panel Mount Front | SPST-NO | Anti-Vandal | IP67 - Dust Tight Waterproof | Off-Mom | -20 ░C | 70 °C | Solder Lug | 1000000 Cycles | 200000 Cycles |
