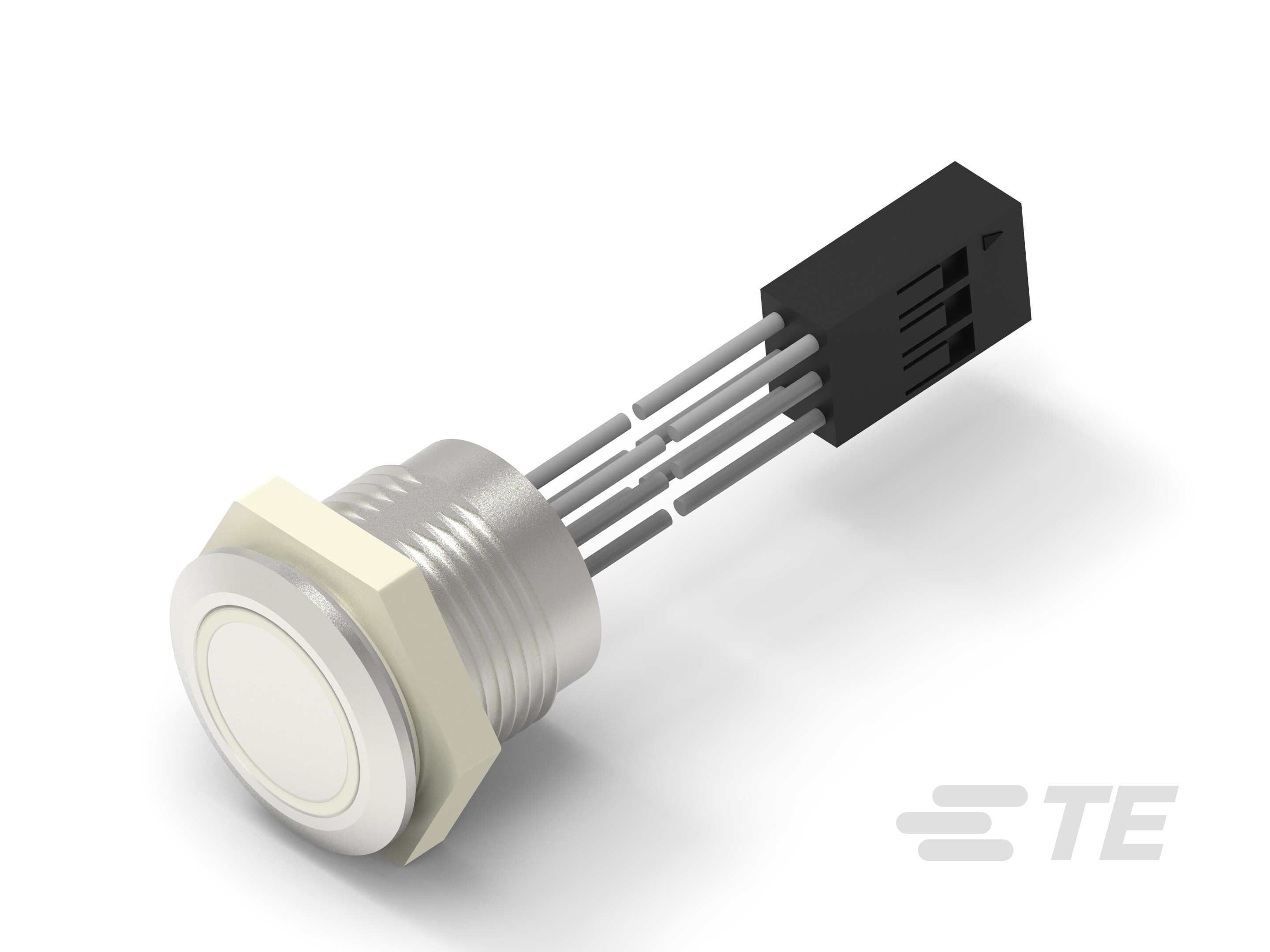

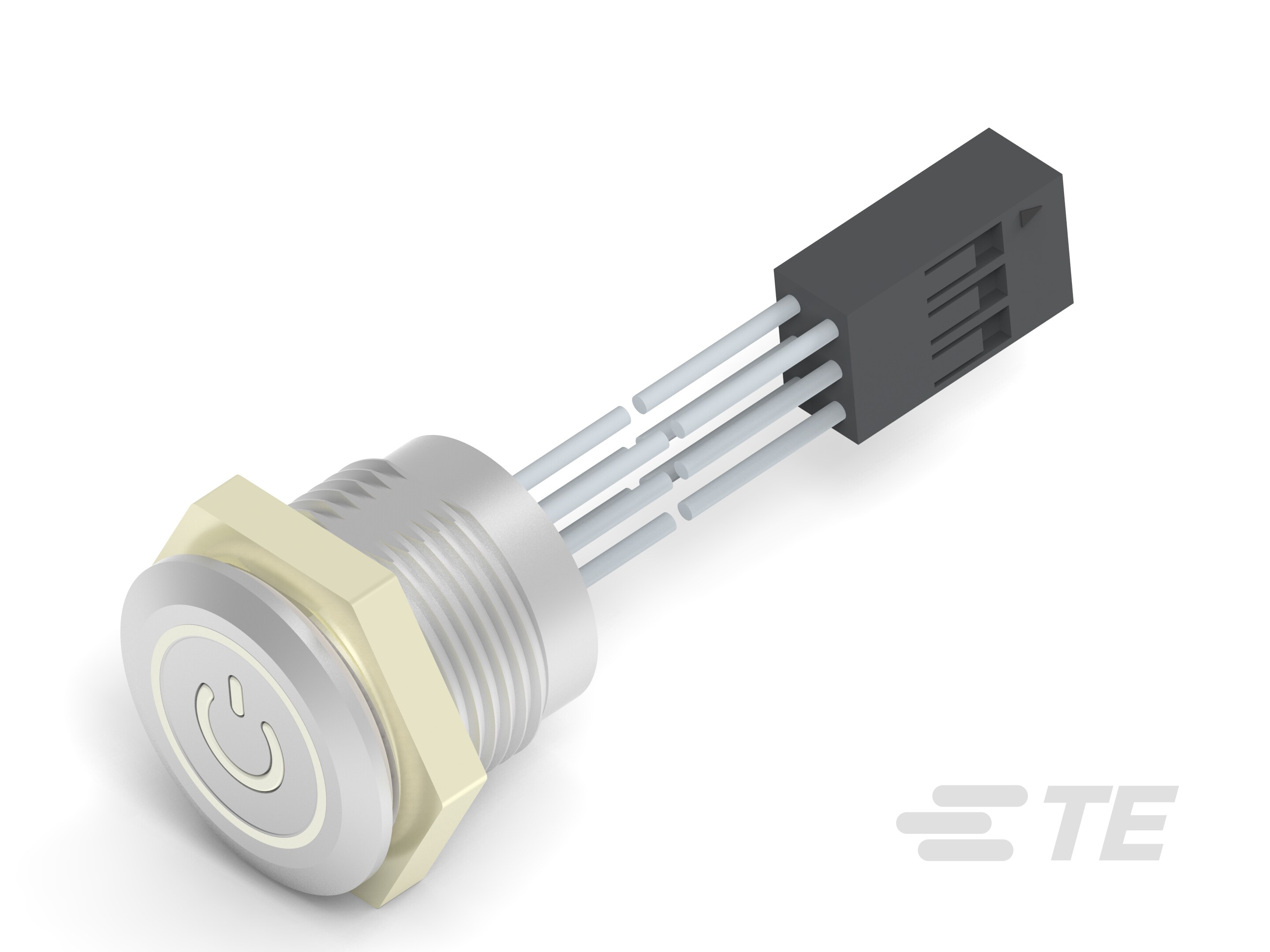

ALCOSWITCH AVC16 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PUSHBUTTON SWITCHES AVC16M FLAT AIO RGB RL 500MM/2X3

Part	Actuator Type	Mounting Type	Voltage Rating - DC	Type	Illumination Type, Color	Actuator Marking	Circuit	Switch Function	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Ingress Protection	Current Rating (Amps)
TE Connectivity AMP Connectors AVC16MAIOFE1DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST-NO	Off-Mom	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16LS04FE13T5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue/Green LED	No Marking	SPST	Off-On	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16MS04FE1DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST-NO	Off-Mom	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16LS16FE0DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST	Off-On	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16LS04FE0DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST	Off-On	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16MS16FE1DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST-NO	Off-Mom	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16MS16FE0DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST-NO	Off-Mom	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16MS04FE0DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST-NO	Off-Mom	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16MAIOFE0DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST-NO	Off-Mom	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
TE Connectivity AMP Connectors AVC16LS04FE1DT5B04	Button Flush Round	Panel Mount Front	24 V	Anti-Vandal Capacitive Illuminated	Blue Green LED Red	No Marking	SPST	Off-On	Silver	16 mm	IP68 - Dust Tight Waterproof	1 A
