THA Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CBL CLAMP P-TYPE BLACK FASTENER

Part	Panel Hole Size	Panel Hole Size	Type	Mounting Type	Color	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Height [z]	Height [z]	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material	Type Attributes	Length [x]	Length [x]	Opening Size [Max] [z]	Opening Size [Min]	Opening Size [Min] [z]	Opening Size [Max]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Length	Length	Opening Size [Min] [z]	Opening Size [Max] [z]	Length [x]	Height [diameter]	Height [diameter]	Bundle Center to Mounting Center	Opening Size [Max]
TE Connectivity Aerospace, Defense and Marine THA-PDKG-11	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black	19.05 mm	0.75 in	0.625 in	15.88 mm	1.075 in	27.3 mm	1 "	25.4 mm	Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged	43.21 mm	1.701 in
TE Connectivity Aerospace, Defense and Marine THA-PDKG-05	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black					0.65 "	16.51 mm			Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged			0.375 in	6.35 mm	0.25 in	9.53 mm	0.795 in	20.2 mm	32.51 mm	1.28 in

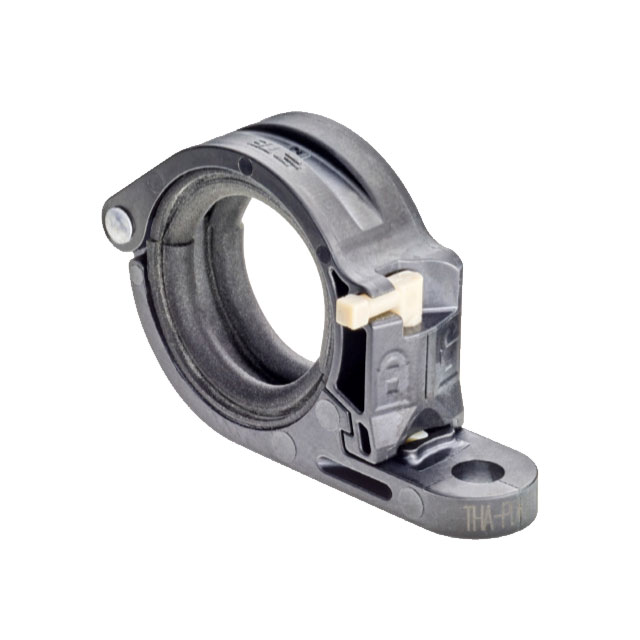

TE Connectivity Aerospace, Defense and Marine THA-PDKG-09	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black					0.933 in	23.7 mm			Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged			0.625 in		0.5 in						12.7 mm	15.88 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-15	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black	25.4 mm	1 in	0.875 in	22.22 mm	1.358 "	34.5 mm	1.126 in	28.6 mm	Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged	49.8 mm												1.961 in

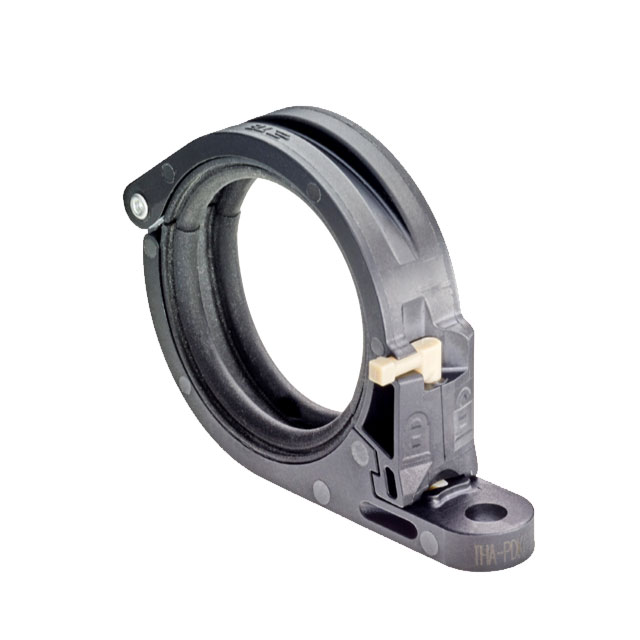

TE Connectivity Aerospace, Defense and Marine THA-PDKG-19	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black					1.642 in	41.7 mm	1.244 in	31.6 mm	Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged			1.25 in		1.125 in				56.2 mm	2.213 in	28.58 mm	31.75 mm

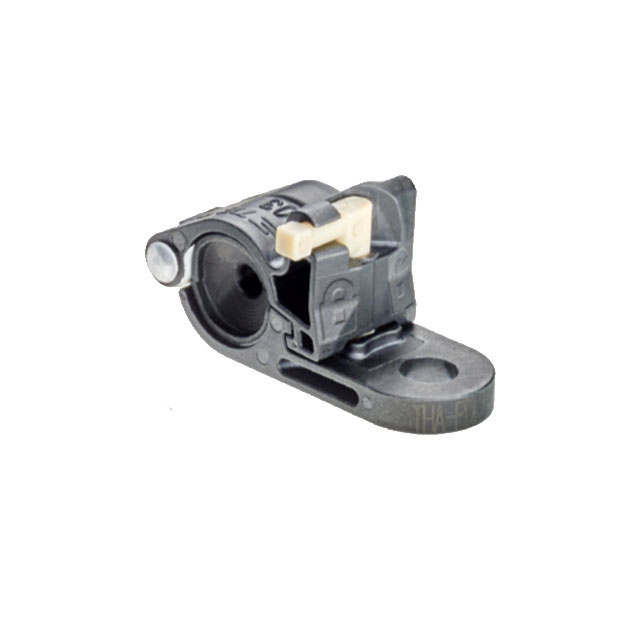

TE Connectivity Aerospace, Defense and Marine THA-PDKG-03	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black	6.35 mm	0.25 in	0.125 in	3.18 mm				0.717 in	Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged Locking									28.5 mm	1.122 in				12.9 mm	0.508 in	18.2 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-13	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black							1.051 in	26.7 mm	Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged			0.875 in		0.75 in				46.2 mm	1.819 in	19.05 mm	22.22 mm		30.91 mm	1.217 in
TE Connectivity Aerospace, Defense and Marine THA-PDKG-07	0.201 in	5.1 mm	Clamp P-Type	Fastener	Black					0.791 in	20.1 mm	0.85 in	21.59 mm	Polyetheretherketone (PEEK) Glass Filled	Cushioned Hinged			0.5 in	9.52 mm	0.375 in				35.71 mm	1.406 "							12.7 mm
